Viewsonic VA712 [10/22] Wall mounting optional

ViewSonic VA712 6

Wall Mounting (Optional)

To obtain a wall-mounting kit, contact ViewSonic

or your local dealer. Refer to the

instructions that come with the base mounting kit. To convert your LCD display from a desk-

mounted to a wall-mounted display, do the following:

1. Verify that the Power button is turned Off, then

disconnect the power cord.

2. Lay the LCD display face down on a towel or

blanket.

3. Remove the Plastic Covers from the back of the

LCD display.

4. Remove the four screws attaching the base.

5. Remove the Rubber Plugs from inside the four

VESA screw holes.

6. Attach the mounting bracket from the VESA

compatible wall mounting kit (100 mm x 100 mm

distance).

7. Attach the LCD display to the wall, following the

instructions in the wall-mounting kit.

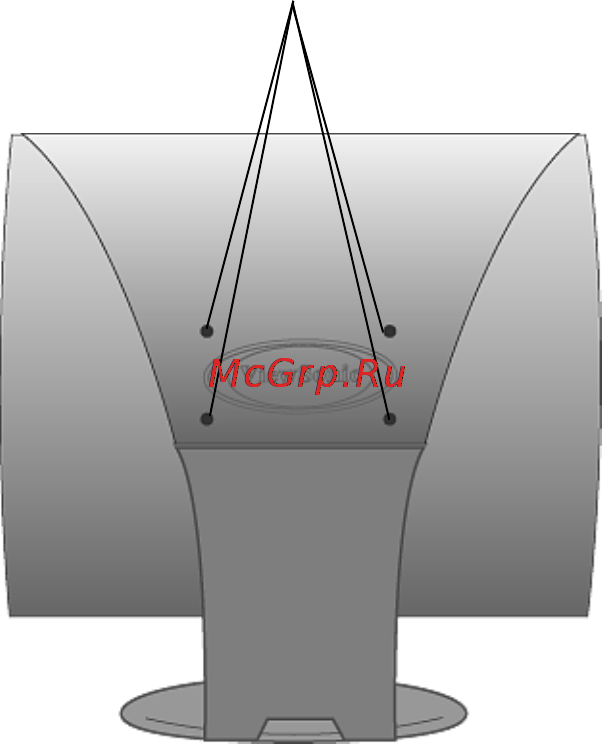

Four VESA screw holes
