Viewsonic VP2330WB [11/24] Wall mounting optional

ViewSonic VP2330wb 7

Wall Mounting (Optional)

To obtain a wall-mounting kit, contact ViewSonic

or your local dealer. Refer to the

instructions that come with the base mounting kit. To convert your LCD display from a desk-

mounted to a wall-mounted display, do the following:

1. Verify that the Power button is turned Off,

then disconnect the power cord.

2. Lay the LCD display face down on a towel

or blanket.

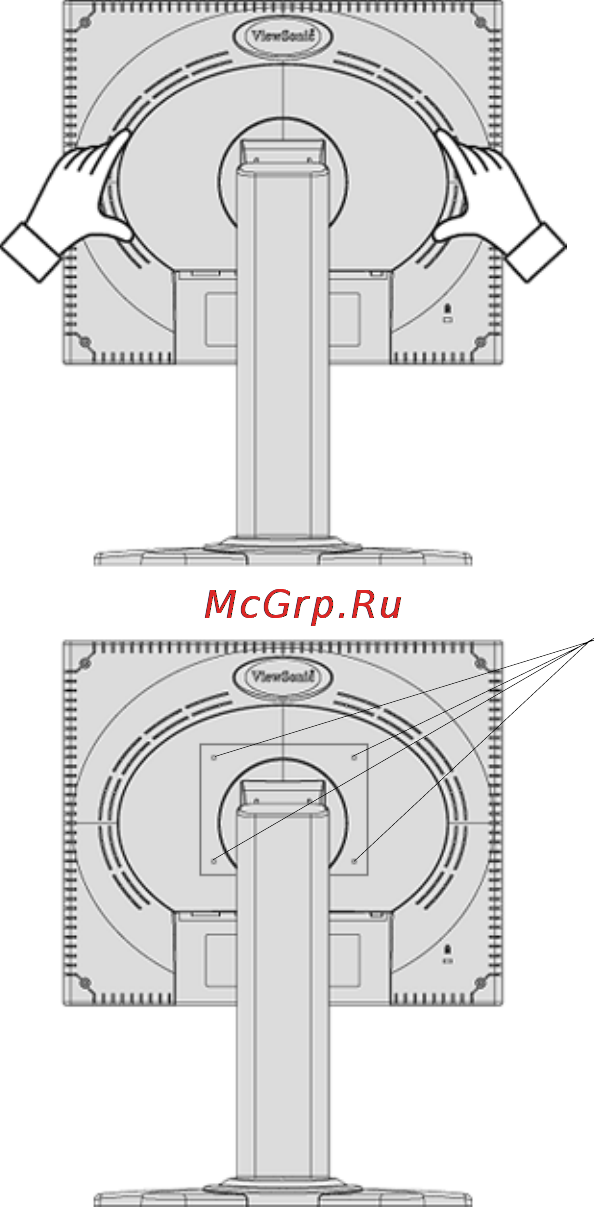

3. Pull the back plate away from the head of

the LCD display. Let the plate hang on the

neck of the LCD display as shown on the

left. Notice the four screws.

4. Remove the four screws from the back plate.

5. Attach the mounting bracket from the VESA

compatible wall mounting kit (100 mm x

100 mm distance).

6. Attach the LCD display to the wall,

following the instructions in the wall-

mounting kit.

Remove

four

screws
