6. Body of the device

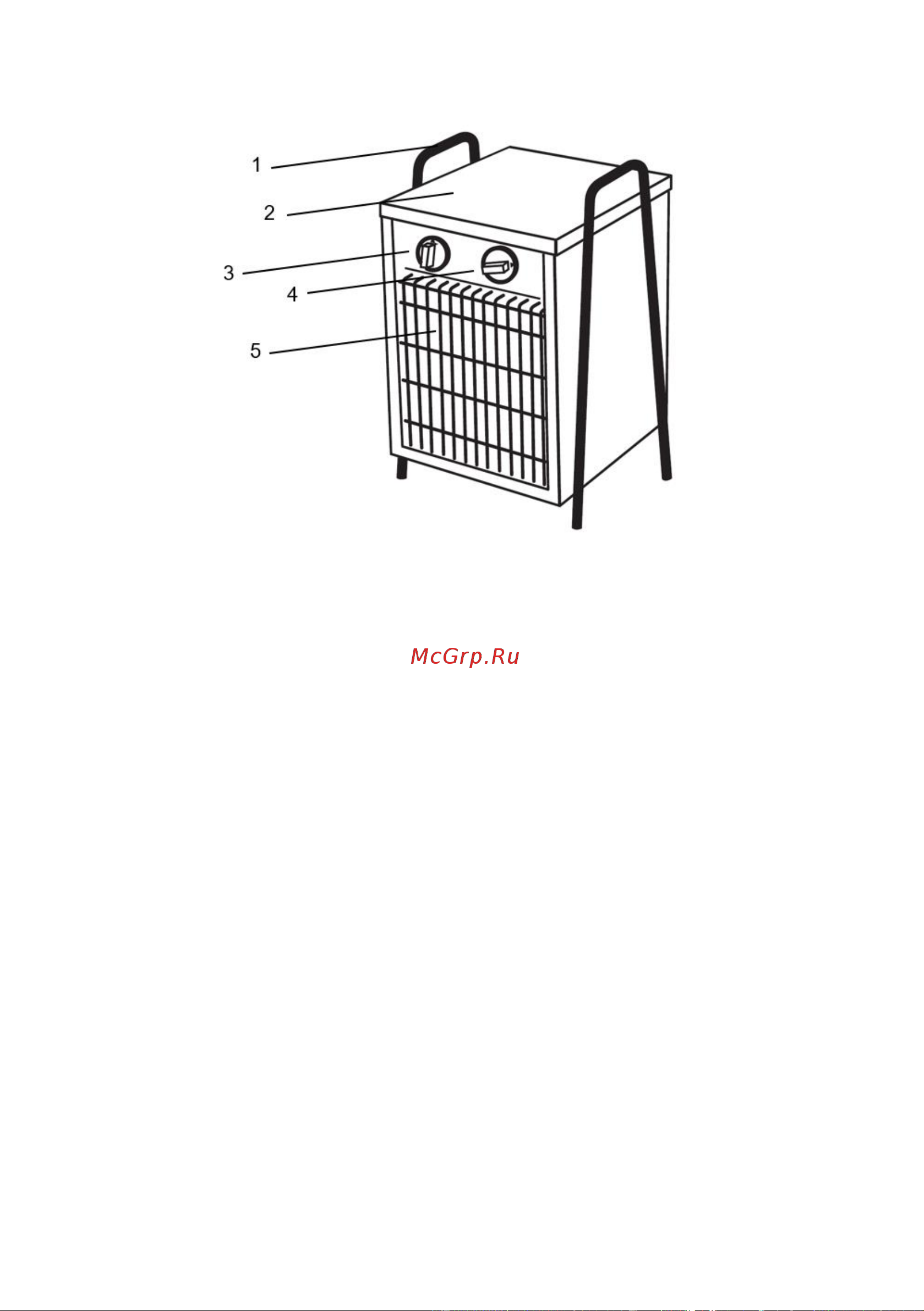

T-HG3-Q12T, T-HG5-Q12T

1. Handle for moving

2. Body of the device

3. Power mode knob

4. Thermostat knob

5. Front protective grille

Fig. 2*

*The appearance of the device may differ from the images in the manual

6. DELIVERY SET

1. Electric fan heater – 1 pc.

2. Instruction manual – 1 pc.

3. Warranty card – 1 pc.

4. Packaging – 1 pc.

7. CONNECTION TO ELECTRIC MAINS

1. Before connecting the device to the mains, make sure that the parameters of the power supply at the

connection point correspond to the parameters indicated on the rating label with the technical data of the

device.

2. Before connecting the device, make sure it is properly grounded. Proper grounding is important to

minimize electric shock and fire danger.

Models T-HG2-Q11T, T-HG3-Q11T, T-HG3-Q12T

1. The device is designed to be connected to an AC electrical mains with a single-phase voltage of 220-

240V~ (permissible voltage fluctuations from 198V~ to 242V~) and a ground loop.

2. To connect to the electrical mains, the device is equipped with a power cord with a plug.

3. To connect the device to the electrical mains, insert the plug of the power cord of the device into an outlet

with a ground wire.

Model T-HG5-Q12T

1. The device is designed to be connected to an AC electrical mains with a three-phase voltage of 400 V 3~

(permissible voltage fluctuations from 380 V 3~ to 410 V 3~) and a ground loop.
