2. To connect to the electrical network, the device is supplied with a three-wire power cord (please note that

the power plug is not included in the delivery set).

3. To connect the device to the electrical network, connect the power cord to the fixed electrical network, and

then turn on the power to the device. If the length of the power cord is not long enough, you can use a power

outlet and plug (not included in the delivery set), designed for the power of the device, to connect to the

electrical network. The scheme is presented in the section "Wiring diagram".

ATTENTION!

1. The electric wire supplied to the socket from the power board must have a core cross section of at least

2.5 mm

(for copper wire).

2. A circuit breaker with a rated current of 25A must be installed in the power board to protect the electrical

wiring from overloads.

8. OPERATION OF THE DEVICE

Control panel

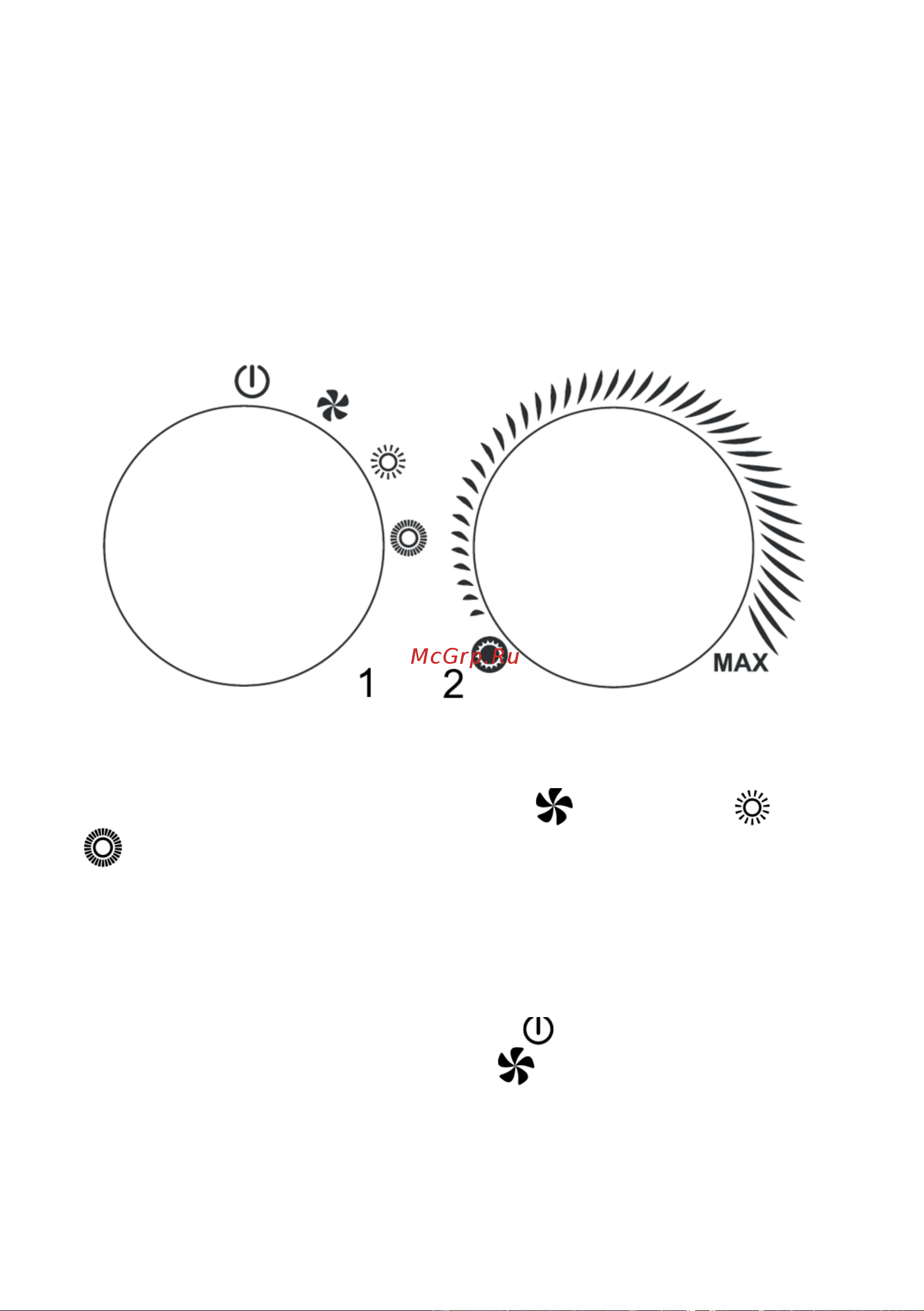

Fig 4*

*The appearance of the control panel may differ from the images in the manual

1. Operating mode selection knob

Used to select the following operating modes: ventilation mode , low heating power , high heating

power

2. Thermostat knob

Used to set the room heating temperature

Operation of the fan heater

1. Turning on

Make sure that the operating mode selection knob is set to position, then connect the device to the

power source and set the operating mode selection knob to position, the electric motor of the device will

turn on and the device will start operating in ventilation mode.

ATTENTION!

1. When the fan heater is turned on for the first time, a smell and smoke may appear (oil is burned from the

surface of the heating elements). Therefore, it is recommended that before installation, turn on the device in

heating mode for 10-20 minutes in a well-ventilated area.

2. After transporting or storing the fan heater at negative temperatures, keep it in the room where it is

supposed to be used, without plugging it into the mains for at least 2 hours. After a long period of storage or

a break in operation, do not turn on the device for the first time in the high heating power mode.
