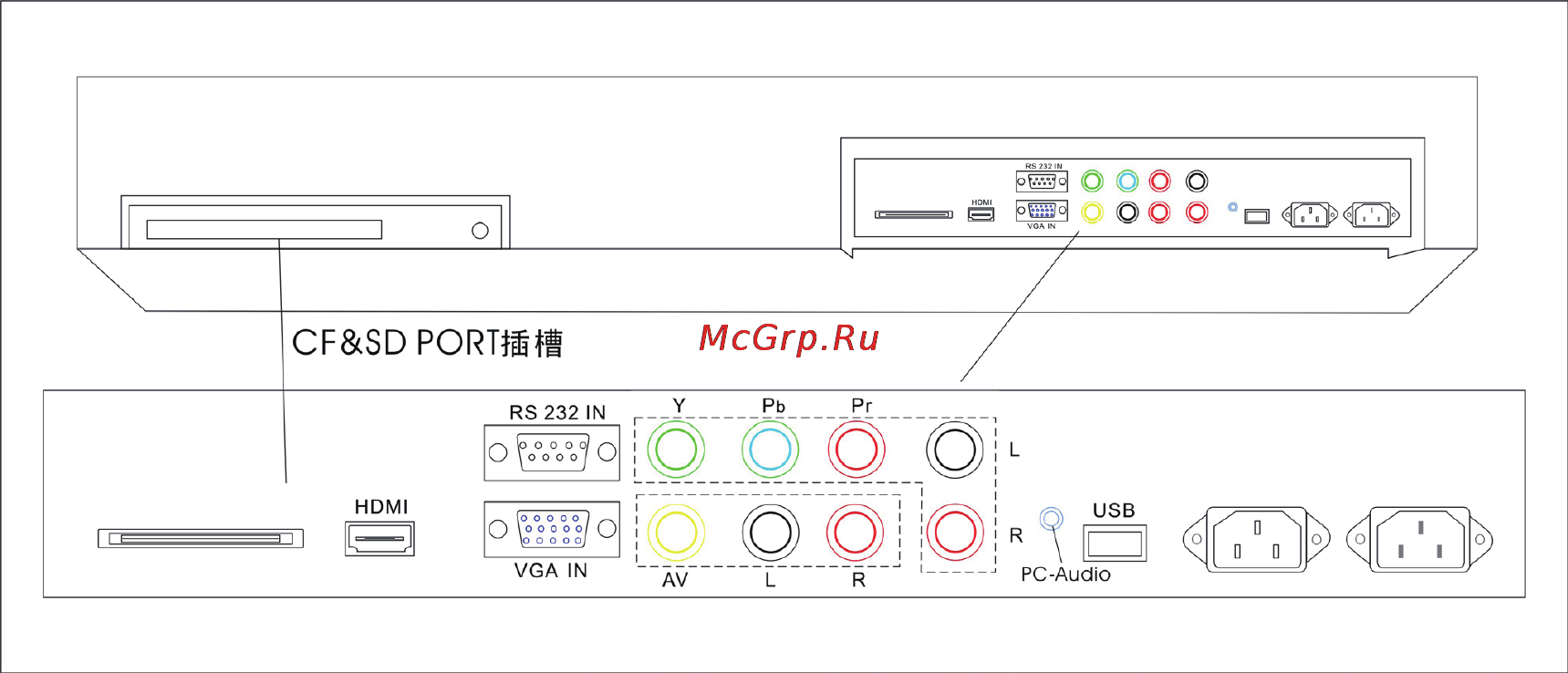

Chapter 2 Interface definition

2.1 Product features

Function

 CVBSport：Compositesignalinput

 VGAport： VGAsignalinput**

 YPbPr：Componentsignalinput**

 HDMIport：HDMIsignalinput

CFcardslot：CFcardinput

USBport：USBflashdiskinput



**Important Note: DONOTconnectamediasourcetoVGAandYPbPr,andassociatedaudio

connections,atthesametime.OnlymakeconnectionstoeitherVGAor

YPbPr.
