Technical data

Rated voltage-220-240 V ac

Steam temperature -95

Rated frequency- 50/60 Hz

Max. pressure on the press plate: 1 kg

Capacity-2.0 l

Min. length -0.5 m, max. length -1.4 m

Operation duration: 60 min.

Steam owrate: 50g/min

Length of steam tube: 1.7 m

Protection class I

Description of elements:

1.1 Fastening of steam sleeve

1.2 Switcher

1.3 Upper part of the casing

1.4 Lower part of the casing

1.5 Rubber foundations

1.6 Disc

2.1 Tank handle

2.2 Tank

2.3 Tank button

3.1 Steam sleeve button

3.2 Steam supply tube

3.3 Handle

4.1 Sleeve clamp

4.2 Tube

5 Clamping head

6 Press plate

7 Components: Brushes

Installation (before operation)

• Read all instructions attentively.

• Remove packing materials.

• Do not start and do not open the device until it is

completely mounted.

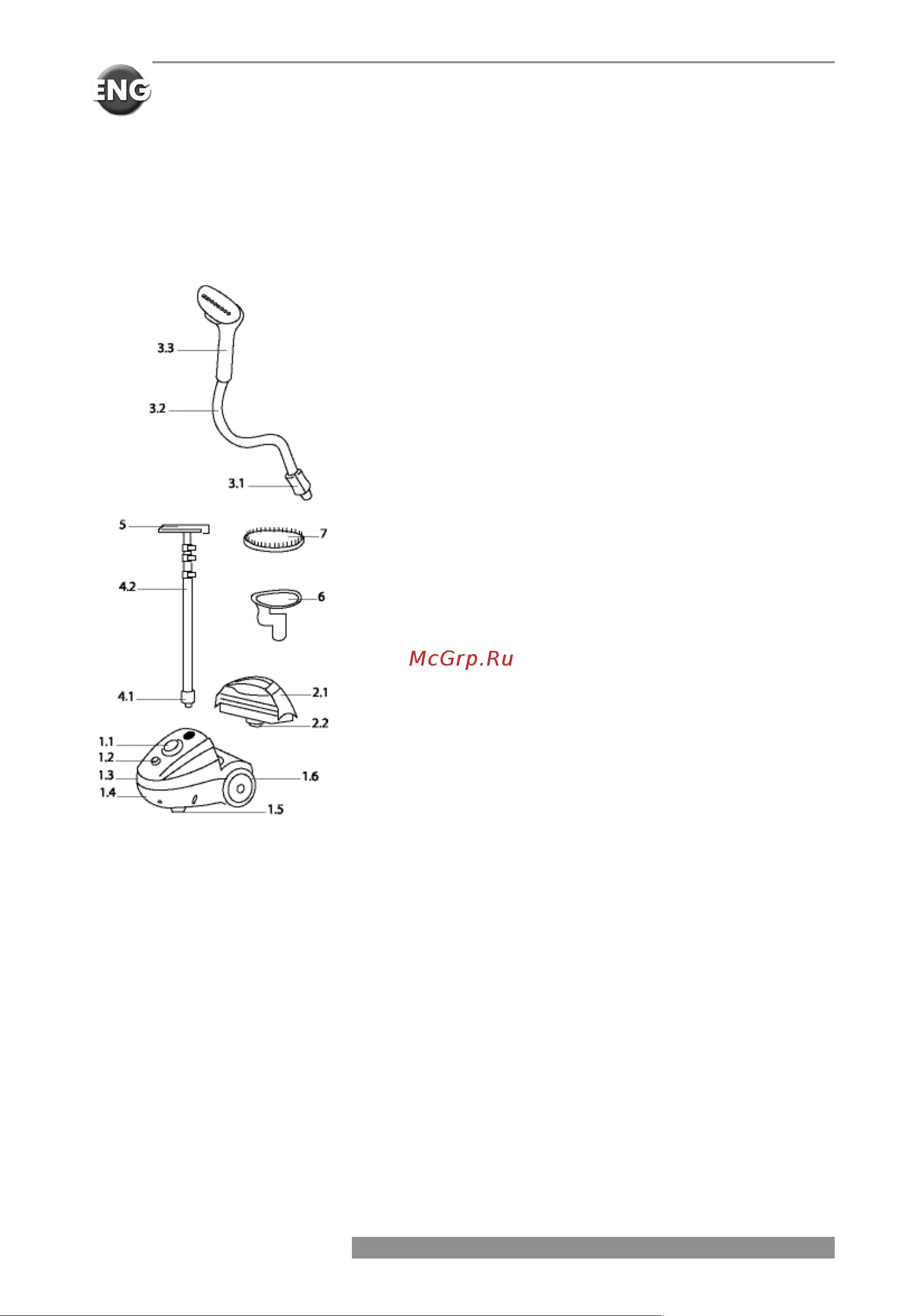

• Component diagram, Figure 1

• Insert the telescopic tube into the foundation, Figure 2

• Check that the connection is tight, Figure 3

• Unlock the fastener and pull the aluminum tube, Figure

4 •

Lock up the fastener, Figure 5

• Insert the steam sleeve assembly into hole, Figure 6 •

Mount the brush onto the nozzle, Figure 7

Ironing

• Fill up the tank with water (remove the cover and pour

water), Figure 8.
