Navitel AIR 15 AL [14/32] Tire inflation

NAVITEL AIR 15 AL | 13

Tire ination

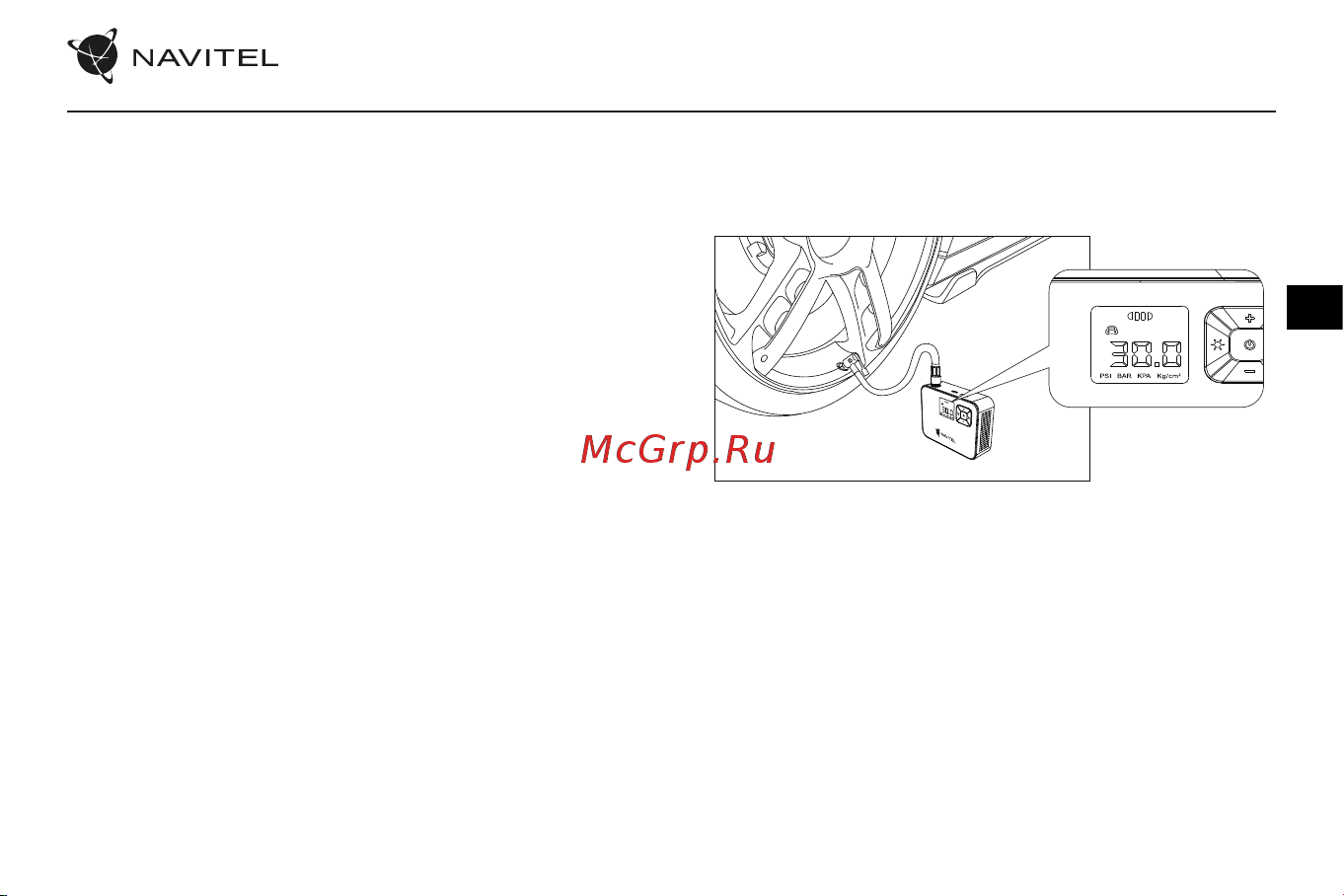

1. Connect the air hose to the compressor and tire.

2. Hold the power button to turn on the compressor. The display will show the

current tire pressure.

3. Press the mode switch button repeatedly to select one of the preset

compressor operating modes.

4. Hold the mode switch button to enter the pressure unit change mode, at

this moment the current unit of measurement on the display should ash.

Next, press the mode switch button repeatedly to select the desired pressure

unit. To increase or decrease the value of pressure required, use the preasure

increase and decrease buttons, respectively. When the pressure value is set,

the current tire pressure indicator should ash 3 times, and then "0" will be

displayed in all digits of the indicator.

5. Press the power button to start the tire ination. This process will

automatically stop when the set tire pressure is reached. To stop the tire

ination before it nishes automatically, press the power button.

6. Hold the power button to turn the compressor o. The compressor

automatically shuts down after 90 seconds of inactivity.

Note:

• The compressor has an overheating protection system. When the compressor

temperature becomes too high, it will stop working. Wait for a while for the

compressor to cool down before further use.

• Do not touch the metal surface of the air hose while the compressor is

running to avoid burns.
