14 / EN
Cooker Hood / User Manual
B
A
D
C
Ø4
A,B,C,D =
520
500
19
10
10
2
10
462±2
305
283
223±2
248
50
Ø
1
3
0
±
2
28
MOUNTING TEMPLATE SCALE 1:1
SAGOMA DI MONTAGGIO RELAZIONE 1:1
ESTAMPA DE MONTAJE ESCALA1:1
GABARIT POUR MONTAGE ECHELLE 1:1
MONTAGESCHABLONE MAßSTAB 1:1
AUSSCHNITT IM SCHRANK FÜR LUFTAUSTRITT
LINEA DI TAGLIO PER USCITA ARIA
RECORTE DELARMARIO PARA LA SALIDADE AIRE
LIGNE ACOUPER POUR LA SORTIE D'AIR
CUT-OUT LINE ON CUPBOARD FORAIR EXIT
SZABLON MONTAZOWYSKALA 1:1
ZAZNACZYC W SZAFCE OTWÓR POD WYLOT POWIETRZA
80

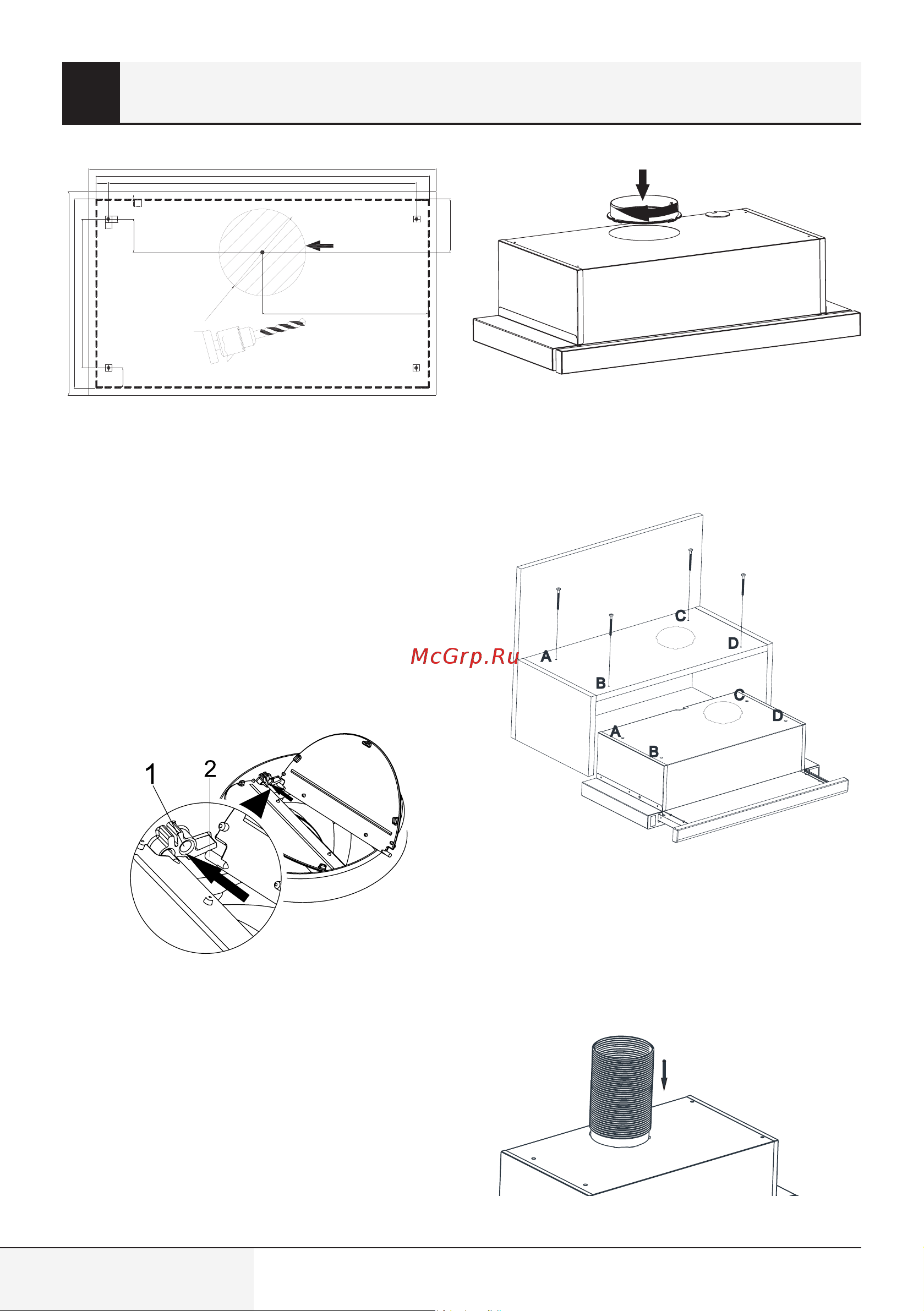

• Paste the installing template provided
with the hood on the surface where the
hood is to be mounted.
• Make holes with Ø4 mm diameter on
the points marked as A, B, C, D on the
installation template.
• Drill the flue outlet hole specified in the
installing template in the sizes given.
Remove the appliance from its packag-
ing. Install the plastic flue flaps provided
in the accessories to the air outlet flue of
the appliance as shown below.
(Figure 1)
1. Flap Pin Socket
2. Flap Pin
Insert the plastic pin (Figure 1/area no. 2)
on the pin socket on the motor exhaust
(Figure 1/area no.1). Then bend the flap
lightly to insert the other pin on the flap
and insert the other pin to its socket
(Figure 1).
5
Installation of appliance
(Figure 2)
Attach the plastic flue adapter included
in the installation accessories to the ex-
tractor hood air outlet (Figure 2).
(Figure 3)
By using the 4 x 40 screws provided with
the hood, install the appliance to the cab-
inet from the points A, B, C and D. When
the slider set moves, the front panel shall
not rub on the cabinet door (Figure 3)
(Figure 4)
