Sven GC-W750 [4/16] Game racing wheel

ENG

Game Racing Wheel

6. DESCRIPTION OF THE CONSTRUCTION

a A

b B

c X

d Y

e L3

f R3

g SELECT

h START

i ANGLE ― rotation angle of the wheel.

j M ― alternative functions.

k PS ― X-Input/Direct-Input mode choice.

l SEN ― sensitivity adjustment.

m Mode/angle indicator.

n D-Pad.

o Lever for changing gears.

p Hand break.

q Acceleration pedal.

r Brake pedal.

s USB port for pedals connection.

t USB port for gear lever connection.

u USB female socket original gamepad connection.

v USB connector for connection to a game console or PC.

w Steering wheel angle adjustment lock.

7. FUNCTIONAL BUTTONS

• Changing of the wheel angle. Button “ANGLE” changes the rotation angle of the wheel. Byde-

fault the angle set on 900 degrees — the indicator lights constantly. Fast pressing will switch

theangle to 450 degrees — the indicator will ash slow. One pressing more will change thero-

tation angle to 270 degrees — the indicator will ash fast.

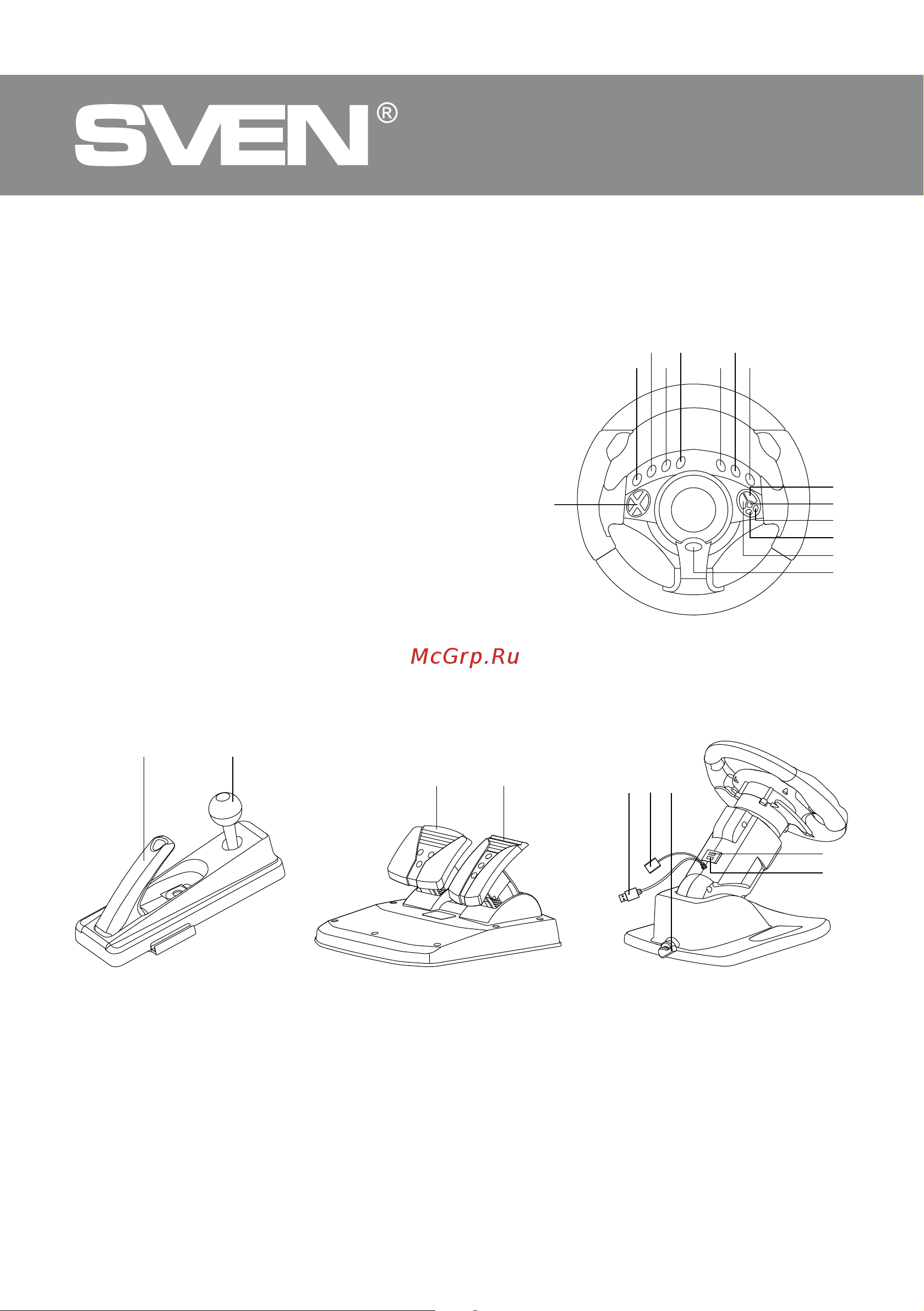

Fig. 1. Front view

Fig. 2. Hand brake

and gearbox

Fig. 3. Foot pedal unit

Fig. 4. Rear view

b e

f a

p o

r q

vuw
