Chapter 4 The Web Configurator

GS2200-8/24 User’s Guide

4.3 The Status Screen

The Status screen is the first screen that displays when you access the web configurator. This guide

uses the GS2200-24P screens as an example. The screens may vary slightly for different models.

The following figure shows the navigating components of a web configurator screen.

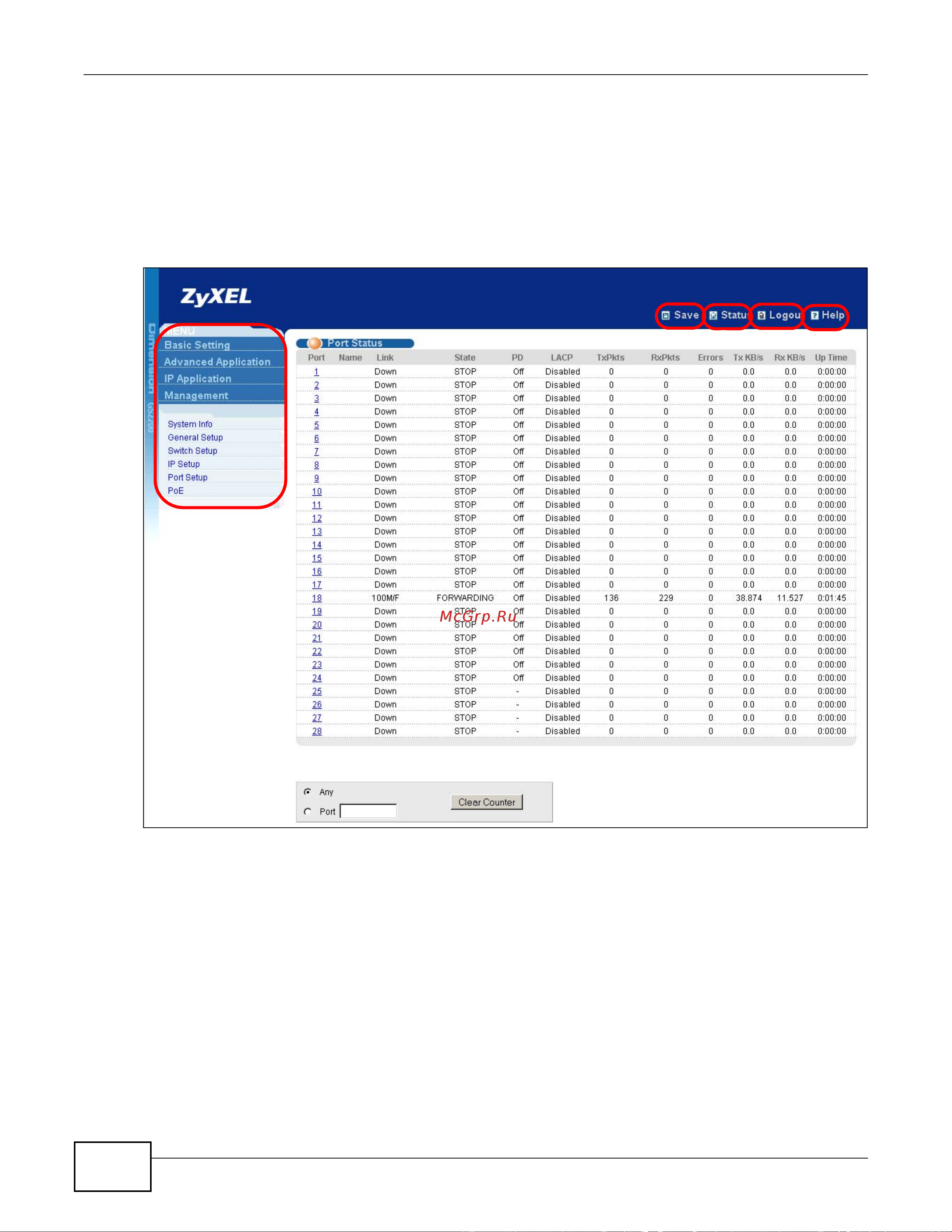

Figure 19 Web Configurator Home Screen for GS2200-24P (Status)

A - Click the menu items to open submenu links, and then click on a submenu link to open the

screen in the main window.

B, C, D, E - These are quick links which allow you to perform certain tasks no matter which screen

you are currently working in.

B - Click this link to save your configuration into the Switch’s nonvolatile memory. Nonvolatile

memory is the configuration of your Switch that stays the same even if the Switch’s power is turned

off.

C - Click this link to go to the status page of the Switch.

D - Click this link to logout of the web configurator.

BDE
