Chapter 5 Initial Setup Example

GS2200-8/24 User’s Guide

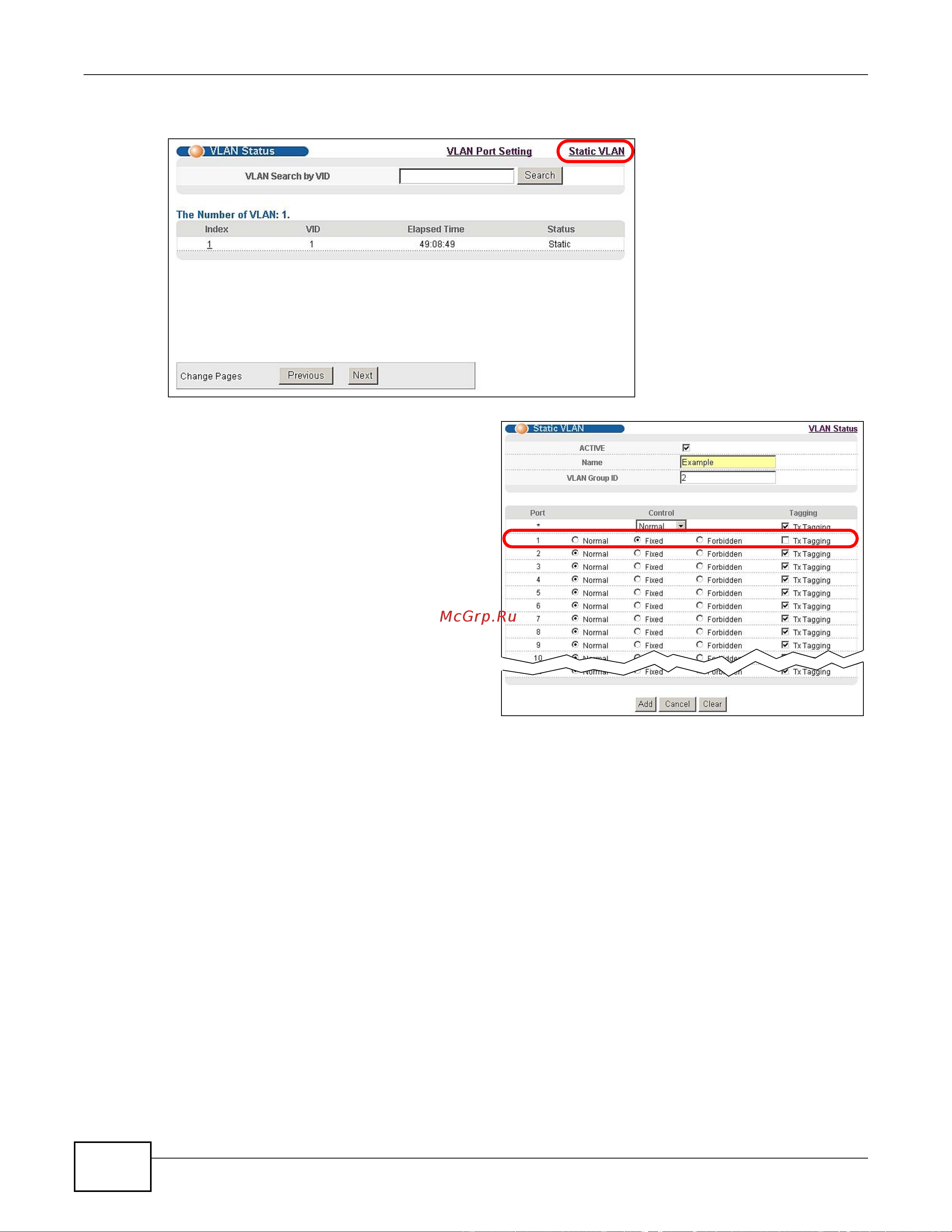

1 Click Advanced Application > VLAN in the navigation panel and click the Static VLAN link.

2 In the Static VLAN screen, select ACTIVE,

enter a descriptive name in the Name field

and enter 2 in the VLAN Group ID field for

the VLAN2 network.

Note: The VLAN Group ID field in this screen and the VID field in the IP Setup screen

refer to the same VLAN ID.

3 Since the VLAN2 network is connected to port 1 on the Switch, select Fixed to configure port 1 to

be a permanent member of the VLAN only.

4 To ensure that VLAN-unaware devices (such as computers and hubs) can receive frames properly,

clear the TX Tagging check box to set the Switch to remove VLAN tags before sending.

5 Click Add to save the settings to the run-time memory. Settings in the run-time memory are lost

when the Switch’s power is turned off.

5.1.2 Setting Port VID

Use PVID to add a tag to incoming untagged frames received on that port so that the frames are

forwarded to the VLAN group that the tag defines.
