Chapter 5 Initial Setup Example

GS2200-8/24 User’s Guide

In the example network, configure 2 as the port VID on port 1 so that any untagged frames

received on that port get sent to VLAN 2.

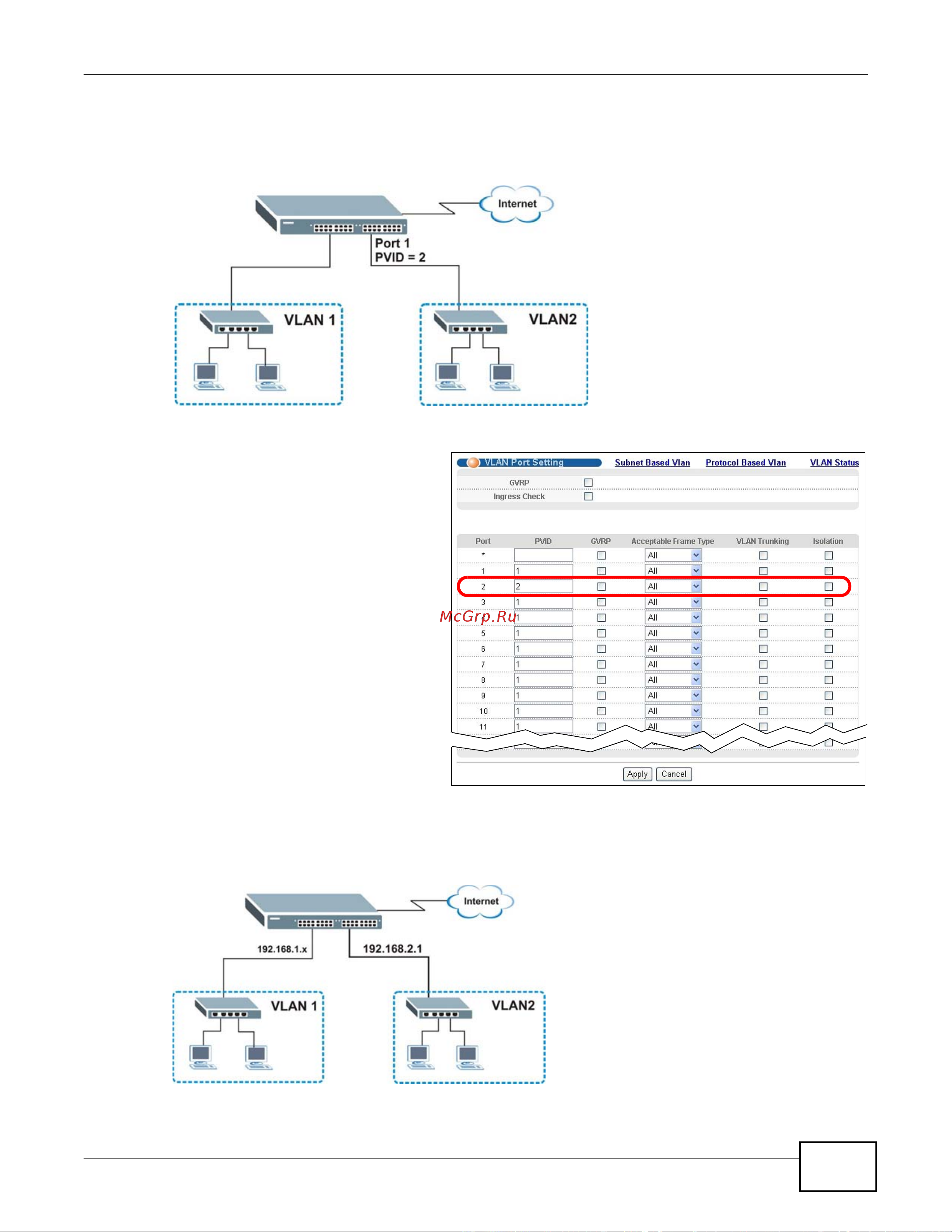

Figure 23 Initial Setup Network Example: Port VID

1 Click Advanced Applications >

VLAN in the navigation panel. Then

click the VLAN Port Setting link.

2 Enter 2 in the PVID field for port 1

and click Apply to save your changes

back to the run-time memory.

Settings in the run-time memory are

lost when the Switch’s power is turned

off.

5.2 Configuring Switch

Management IP Address

The default management IP address of the Switch is 192.168.1.1. You can configure another IP

address in a different subnet for management purposes. The following figure shows an example.

Figure 24 Initial Setup Example: Management IP Address
