Chapter 7 System Status and Port Statistics

GS2200-8/24 User’s Guide

7.2 Port Status Summary

To view the port statistics, click Status in all web configurator screens to display the Status screen

as shown next.

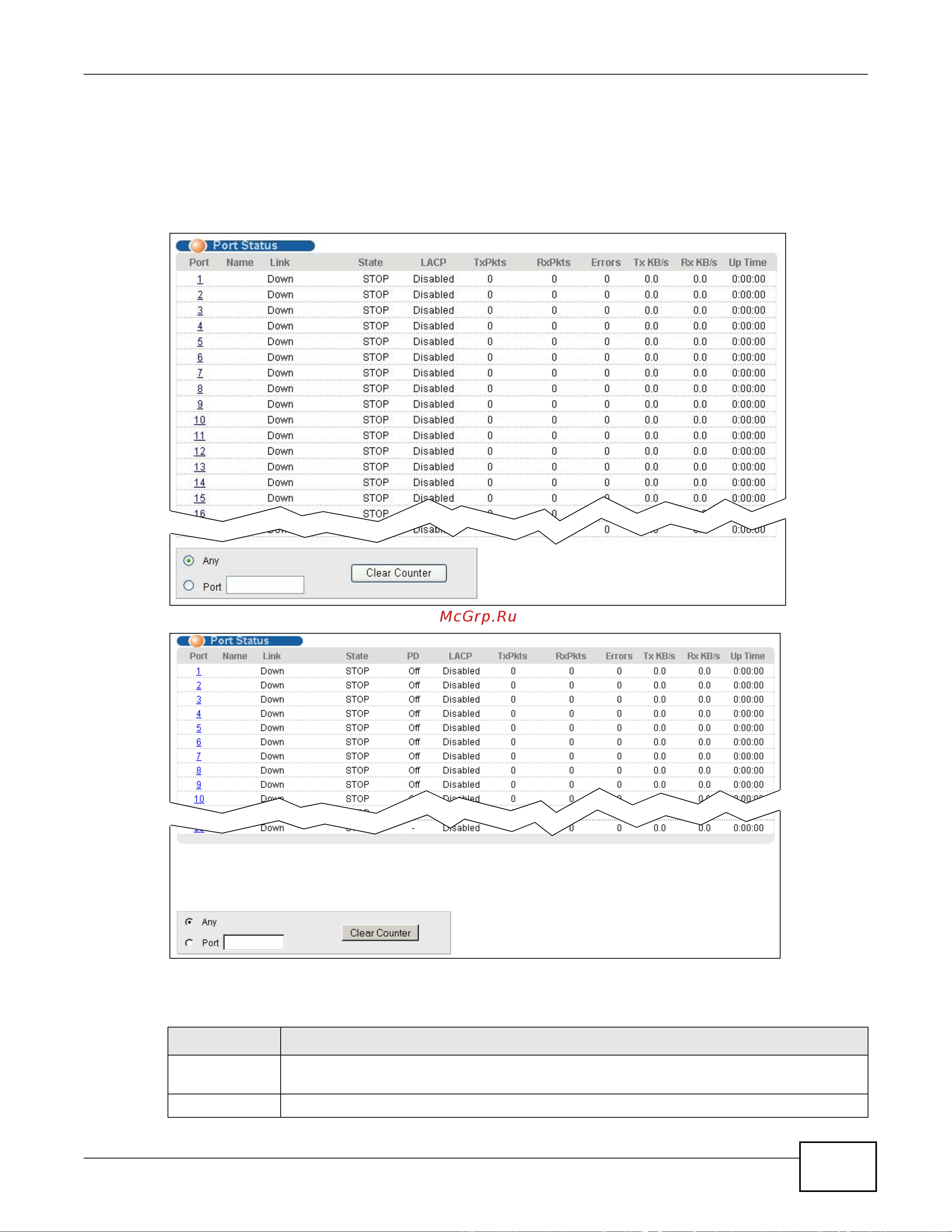

Figure 38 Status (GS2200-24)

Figure 39 Status (GS2200-24P)

The following table describes the labels in this screen.

Table 7 Status

LABEL DESCRIPTION

Port This identifies the Ethernet port. Click a port number to display the Port Details screen

(refer to Figure 40 on page 63).

Name This is the name you assigned to this port in the Basic Setting > Port Setup screen.
