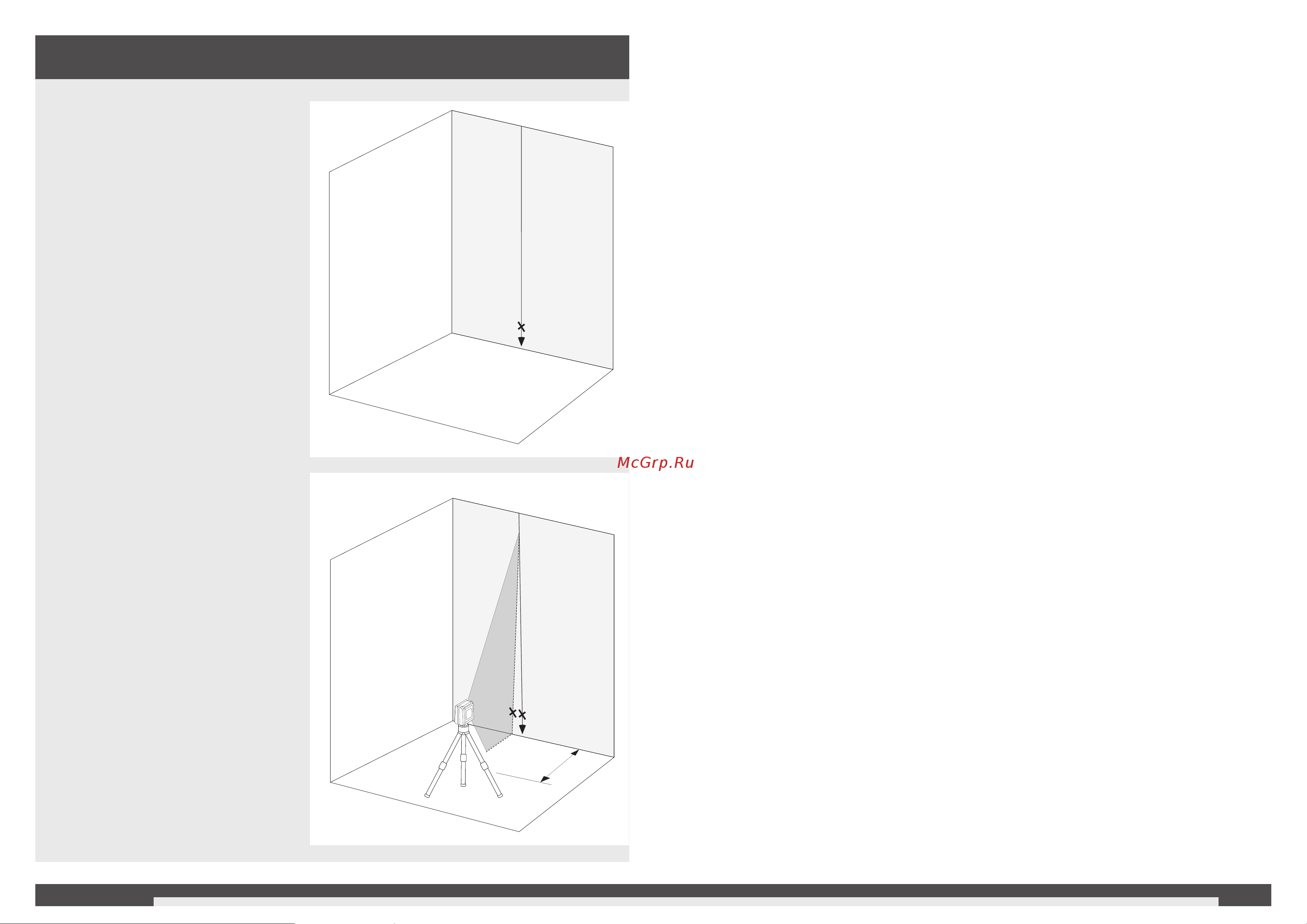

1. Hang an approximately 4 m plumb

line on a wall.

2. After the plumb line has settled, mark

point a1 on the wall, behind the

plumb line, near the plumb cone.

a1

P

a1

a2

3. Set up the cross laser on a tripod or

on a ﬂ at surface in front of the wall at

a distance of approximately 2 m.

4. Switch ON the self-leveling mode,

and press the button to project the

vertical beam towards the plumb line.

5. Turn the laser so that the vertical

beam will merge with the plumb line

below the hanging point.

6. Mark point a2 on the wall, in the

middle of the vertical beam at the

same height as a1.

7. The distance between a1 and a2,

should be no more than

1.5 mm for CLR215

1.6 mm for CLG220.

ENGLISH

CHECKING THE LEVEL ACCURACY OF THE VERTICAL

BEAM
