11

4

This procedure

requires a room of

at least 5x5 meters

with 4 walls.

1. Set up the cross

laser on a table

or on the ﬂ oor in

the middle of the

room.

2. Switch ON the

self-leveling

mode, and press

the V/H button 4

times to project

the forward and

the side vertical

beams

A

B

C

D

P

§

§

P

AB

C

D

a1

a2

b1

b2

3. Mark the center

of the forward

vertical beam at

2 locations. point

a1 on the table

near the cross

laser, and point

a2 on wall A.

4. Mark the center

of the side

vertical beam at

2 locations. point

b1 on the table

near the cross

laser, and point

b2 on wall B.

3

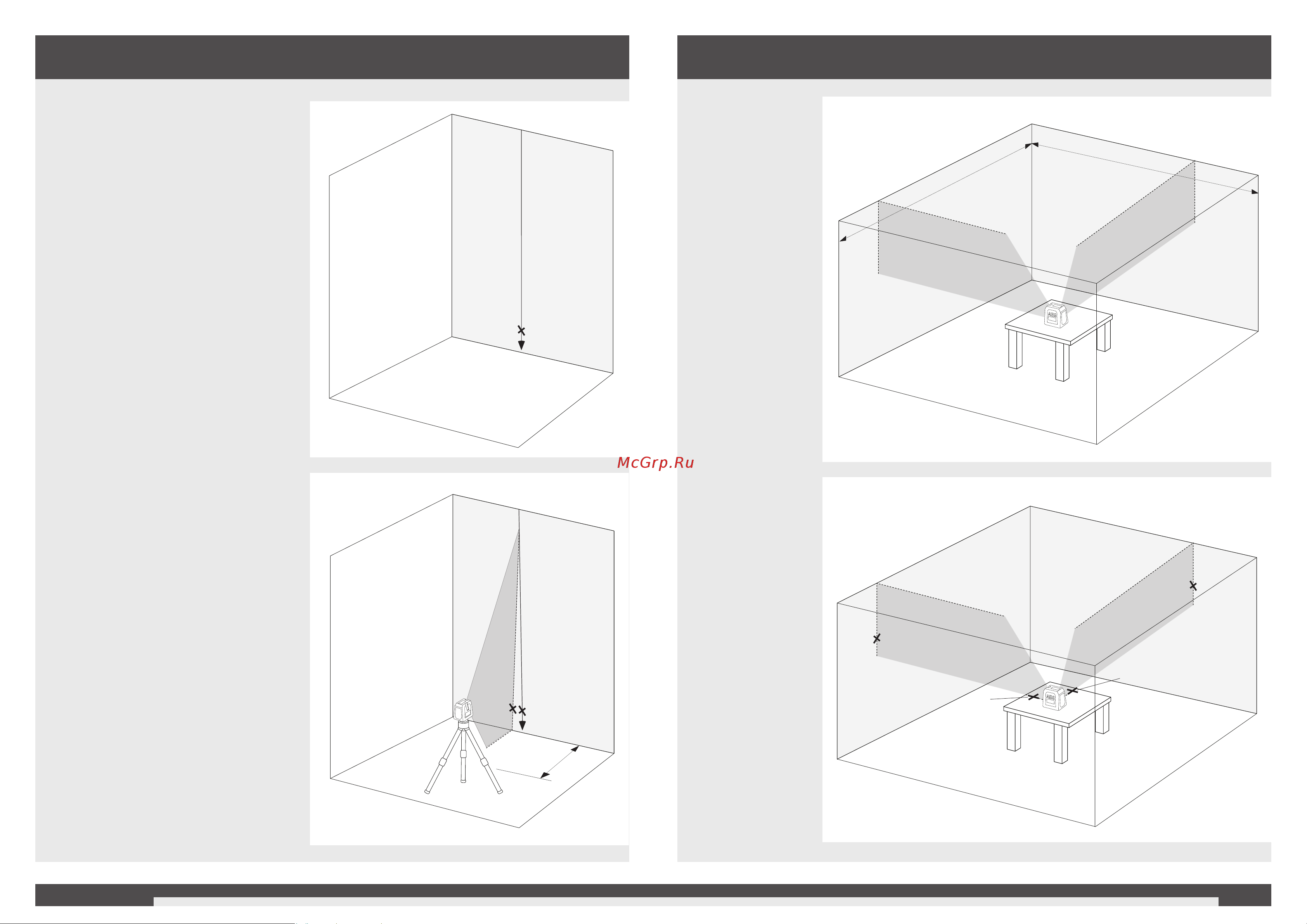

1. Hang an approximately 4 m plumb

line on a wall.

2. After the plumb line has settled, mark

point a1 on the wall, behind the

plumb line, near the plumb cone.

a1

P

a1

a2

3. Set up the cross laser on a tripod or

on a ﬂ at surface in front of the wall at

a distance of approximately 2 m.

4. Switch ON the self-leveling mode,

and press the button to project the

vertical beam towards the plumb line.

5. Turn the cross laser so that the

vertical beam will merge with the

plumb line below the hanging point.

6. Mark point a2 on the wall, in the

middle of the vertical beam at the

same height as a1.

7. The distance between a1 and a2,

should be no more than 1 mm.

ENGLISH

CHECKING 90º ACCURACY BETWEEN

THE 2 VERTICAL BEAMS

CHECKING THE LEVEL ACCURACY OF THE VERTICAL

BEAM
