5. Shade guide

The shade number can be set manually between DIN 9-13. Check the Shade Guide Table to

determine the proper shade number for your application. Select a shade number by turning the

shade knob until the arrow points to the required setting.

6. Adjusting

For your safety and to insure that your Auto-Darkening filter Welding Helmet operates correctly,

please read the thoroughly and consult a qualified specialist before use.Operator's Manual

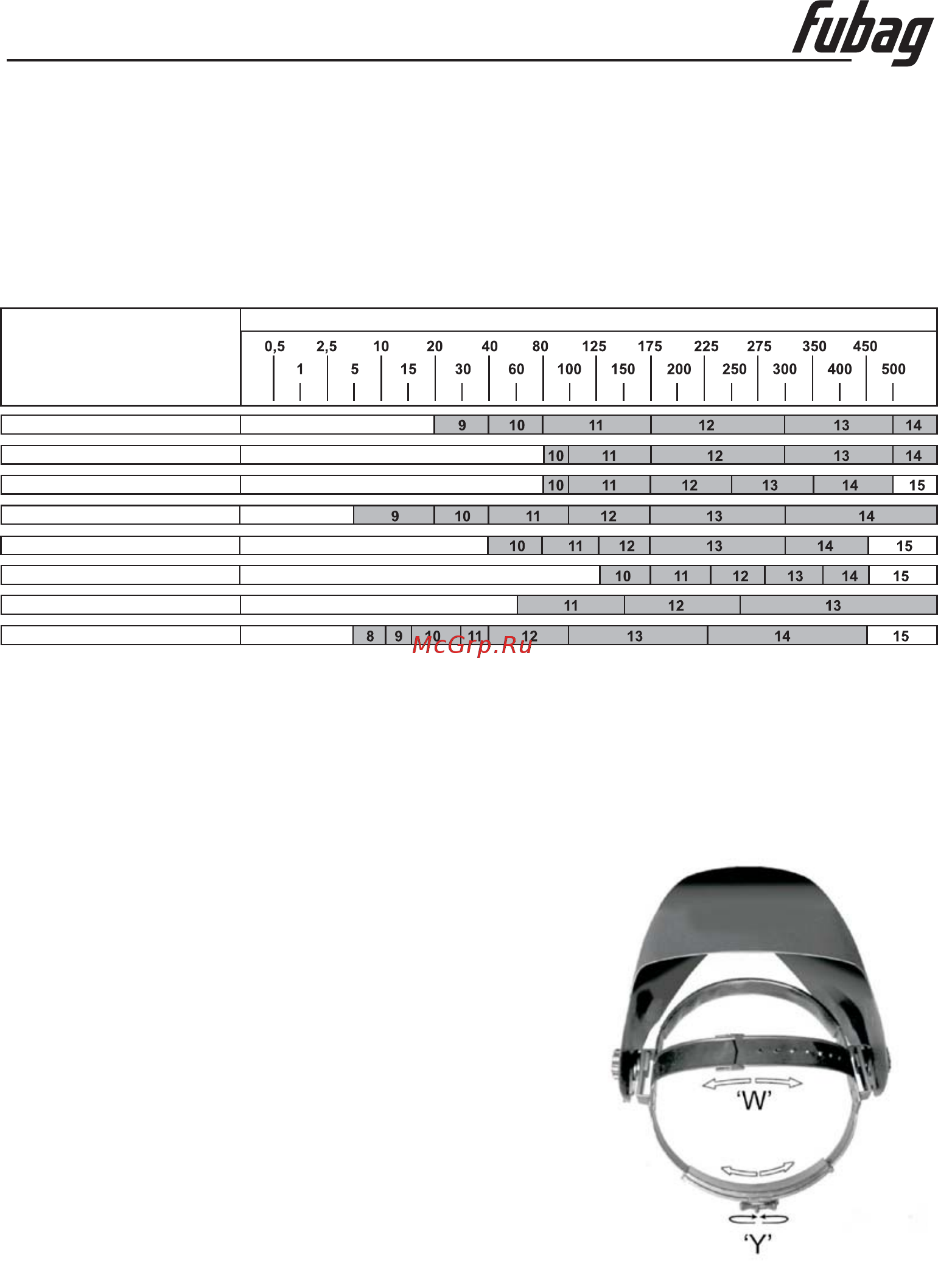

ARC CURRENT, A

WELDING PROCESS

MMA

MIG (heavy)

MIG (light)

TIG

MAG/CO

SAW

PAC

PAW

Fig.1

TOP

1 Adjusting the fit of the helmet.

- The overall circumference of the headband can be made

larger or smaller by rotating the knob on the back of the

headband. (See adjustment "Y" in fig.1) This can be done

whil wearing the helmet allow just the right tension to be

set

- If the headband is riding too high or too low on your head

adjust the strap which passes over the top of your head. To do

this release the end of the band by pushing the locking pip out

of the hole in the band.

and push the locking pip

through the nearest hole (See adjustment "W" in fig.1).

- Test the fit of the headband by lifting up and closing down the

helmet a few times. f the headband moves re-

adjust it until it is stable.

e ing

. This way the helmet is kept firmly on the head without

being too tight

Adjust the width of the band by sliding

two ends further or closer apart

I when tilted,
