ENGLISH 13

Mechanical squeezing device DA 75-180 no. 53210

Mechanical squeezing device DA 160-225 no. 53220

Overview

• Manually operated, hydraulic propulsion of the upper squeezing pipe

• 3 set of spacers with securing spring SDR 11 / SDR 17,0 / SDR 17,6

• Lower squeezing pipe with securing straps providing security against unintentional falling out

• Upper squeezing pipe with a ball locking device

• Retracting springs on the side for simple retraction of the hydraulic cylinder

• 2 counter pressure screws on the side with a square bore to relieve load on the hydraulic cylinder

• A pump lever with integral ratchet to actuate the counter-pressure screws

• Dimension of the spacers pipes of the diameter: for 53210:

75/90/110/140/160/180, for 53220: 160/180/200/225

• Weight: about 45 kg (5.3210) about 65 kg (5.3220)

• Dimension about: l: 800 mm / b: 420 mm / t: 150 mm (5.3210)

Dimension about: l: 900 mm / b: 500 mm / t: 190 mm (5.3220)

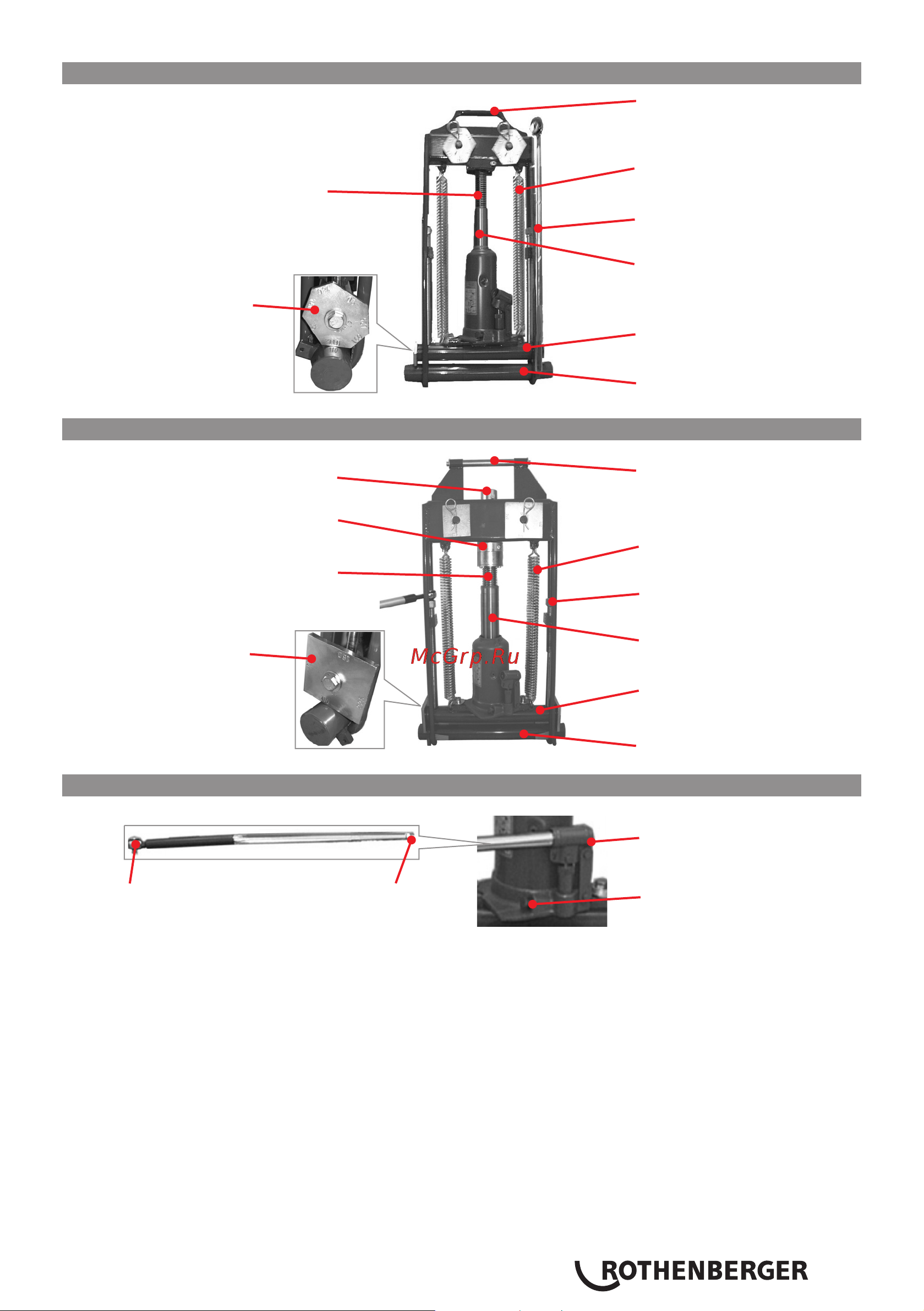

Spacers

Cylinder head with

spindle screw thread

Upper squeezing pipe

Lower squeezing pipe

2 retracting springs

Cylinder piston

Counter pressure screws

Handle

Mounting of the cylinder

head with a square bore

Upper squeezing pipe

Lower squeezing pipe

4 retracting springs

Cylinder piston

Counter pressure screws

Distance adapter

Handle

Cylinder head with

spindle screw thread

Spacers

Pump leve

Hook endRatchet end

Pumping device with

overpressure valve

Pressure relief screw
