FlexShaft™ Drain Cleaning Machines

999-995-158.09_REV. C

7

drain access, extend the drain access

with similar sized pipe and fittings (see

Figure 5). Improper cable assembly sup-

port can allow the cable to kink and twist

and can damage the cable or injure the

operator. Extending the drain back to the

Drain Cleaning Machine also makes it

easier to feed cable assembly into drain.

9. Disconnect the chain knocker from the

hook and pull approximately 4’ (1.2 m) of

cable assembly out of the machine.

10. Mark the sheath to indicate when the

chain knoc

ker is approaching the drain

opening when withdrawn. This can be

done with tape. This reduces the risk of

the chain knockers coming out of the

drain and whipping around. The distance

depends on the configuration of the drain,

but should be at least 4’ (1.2 m) from the

chain knocker.

11. Ensure chain knocker is properly installed

(see Installing/Adjusting Chain Knocker).

12. Insert chain knocker end at least 1’ (0.3 m)

into drain.

13. Evaluate the work area and determine if

any barriers are needed to keep bystand-

ers away from the drain cleaning ma-

chine and work area. The drain cleaning

process can be messy, and bystanders

can distract the operator.

14. Position the machine for easy accessibil-

ity. You must be able to hold and control

the cable assembly and the drill switch.

15.

With dry hands, inser

t the battery into

the drill.

Battery Powered Drill

Set-Up and Operation

See the Specifications section along with this

section for information on acceptable battery

powered drills for use with the FlexShaft Drain

Cleaning Machines. There are many types of

battery powered drills available, and not all are

appropriate for use with the FlexShaft Drain

Cleaning Machines. If there is any question

about appropriateness of a drill for this appli-

cation, do not use it. Remove the battery from

the drill before making any adjustments or

attaching to/removing from the drain cleaning

machine.

Drill Switch

The drill must be equipped with a momen-

tary contact switch without a switch lock. This

5. If needed, place protective covers in the

work area. The drain cleaning process

can be messy.

6. Place the Drain Cleaning Machine on

the ground with the drill shaf

t vertical.

Machine should sit squarely and firmly

on the ground. Do not operate with the

drill shaft horizontal. This will reduce the

risk of tipping.

7. Remo

ve the battery from the drill. Properly

set-up the drill. (See Battery Powered

Drill Set-up and Operation section.) Se-

curely attach the drill chuck to the hex of

the drill shaft (Figure 4).

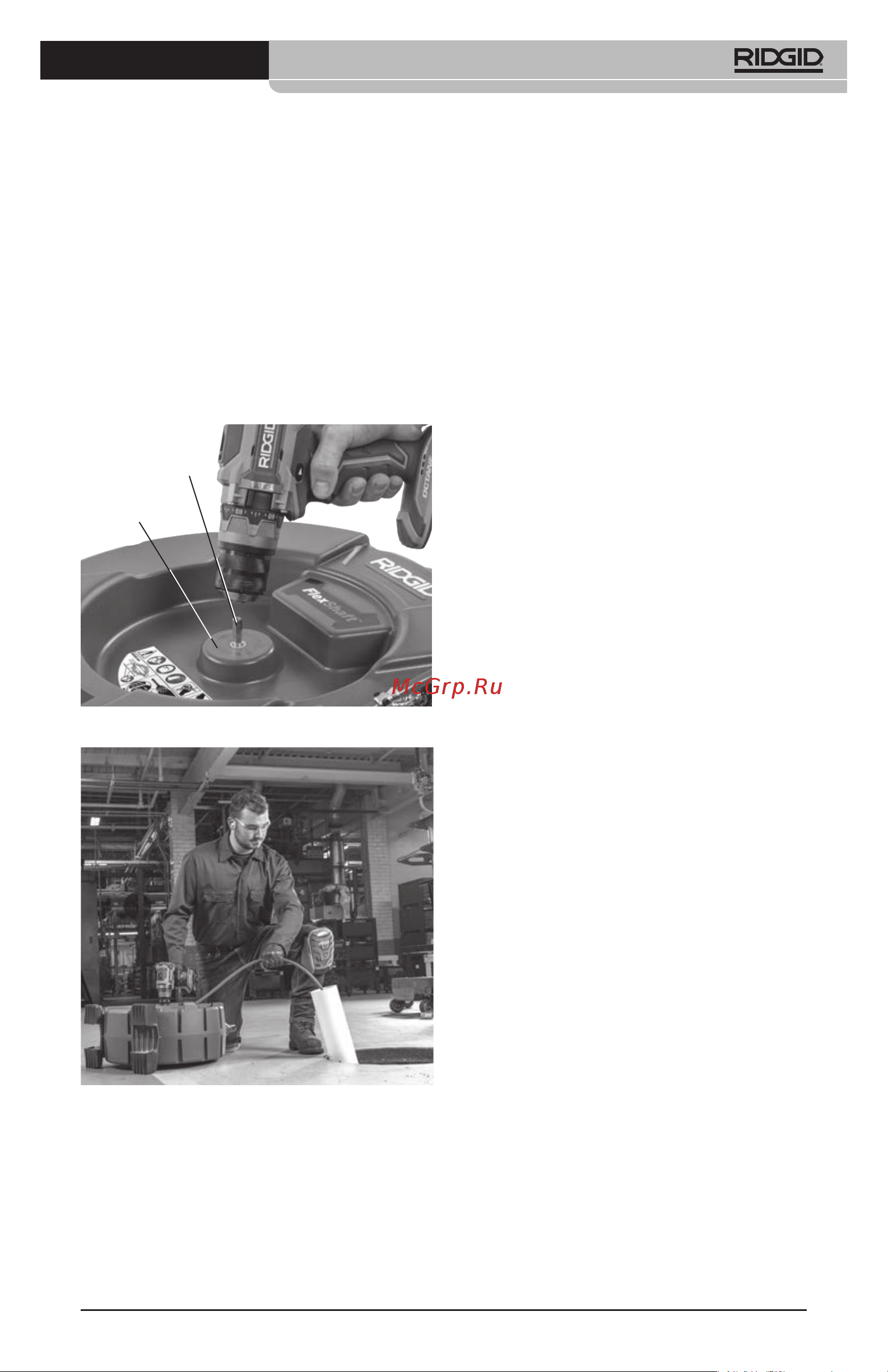

Figure 4 – Attaching Drill To Drill Shaft

Figure 5 – Example of Extending Drain Access

to within 3’ of Machine Cable Outlet

8. Position the Drain Cleaning Machine so

that the cable outlet is within 3’ (1 m) of

the drain access. Greater distances from

the drain access increases the risk of

the cable assembly twisting or kinking. If

the FlexShaft Machine cannot be placed

with the cable outlet within 3’ (1 m) of the

FOR

Arrow

Drill

Shaft
