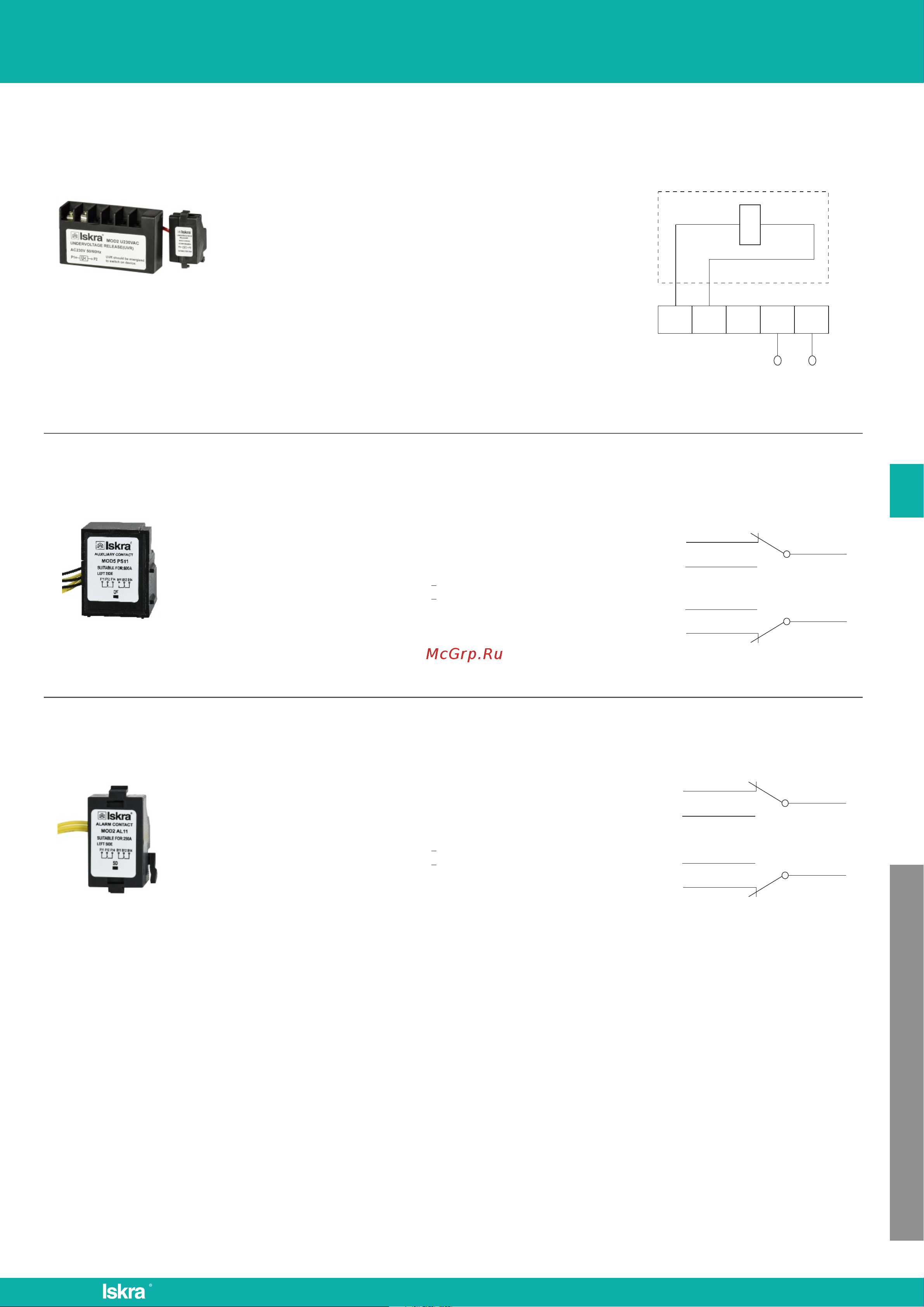

TECHNICAL DATA

MOLDED CASE CIRCUIT BREAKERS - ACCESSORIES

MOD

7-10

AUXILIARY CONTACT

ALARM CONTACT

Wiring diagram

Conventional thermal current I :

3 A / 230 V

Rated operational current I :

F12

F14

F12

F14

F11

The state of circuit breaker under “OFF ” position

The state of circuit breaker under “ON” position

B12

B14

B12

B14

B11

The state of circuit breaker under “OFF ” ”ON” position

The state of circuit breaker under trip free position(alarm)

I < 225 A: 0.26 A

I > 400 A: 0.3 A

I < 225 A: 0.26 A

I > 400 A: 0.3 A

UNDER VOLTAGE RELEASE

Wiring diagram

Rated supply voltages U :

AC: 230 V, 400 V

NOTES: X-terminal blocks ,in the dotted box is the circuit breaker inner wiring diagram.

When the voltage is 35%-70% of rated operational voltage, make

the circuit breaker tripped stably; When 85%-110%, guarantee the

circuit breaker switched on, when lower than 35% should

prevent switch on.

Operation voltages:

P1 P2
