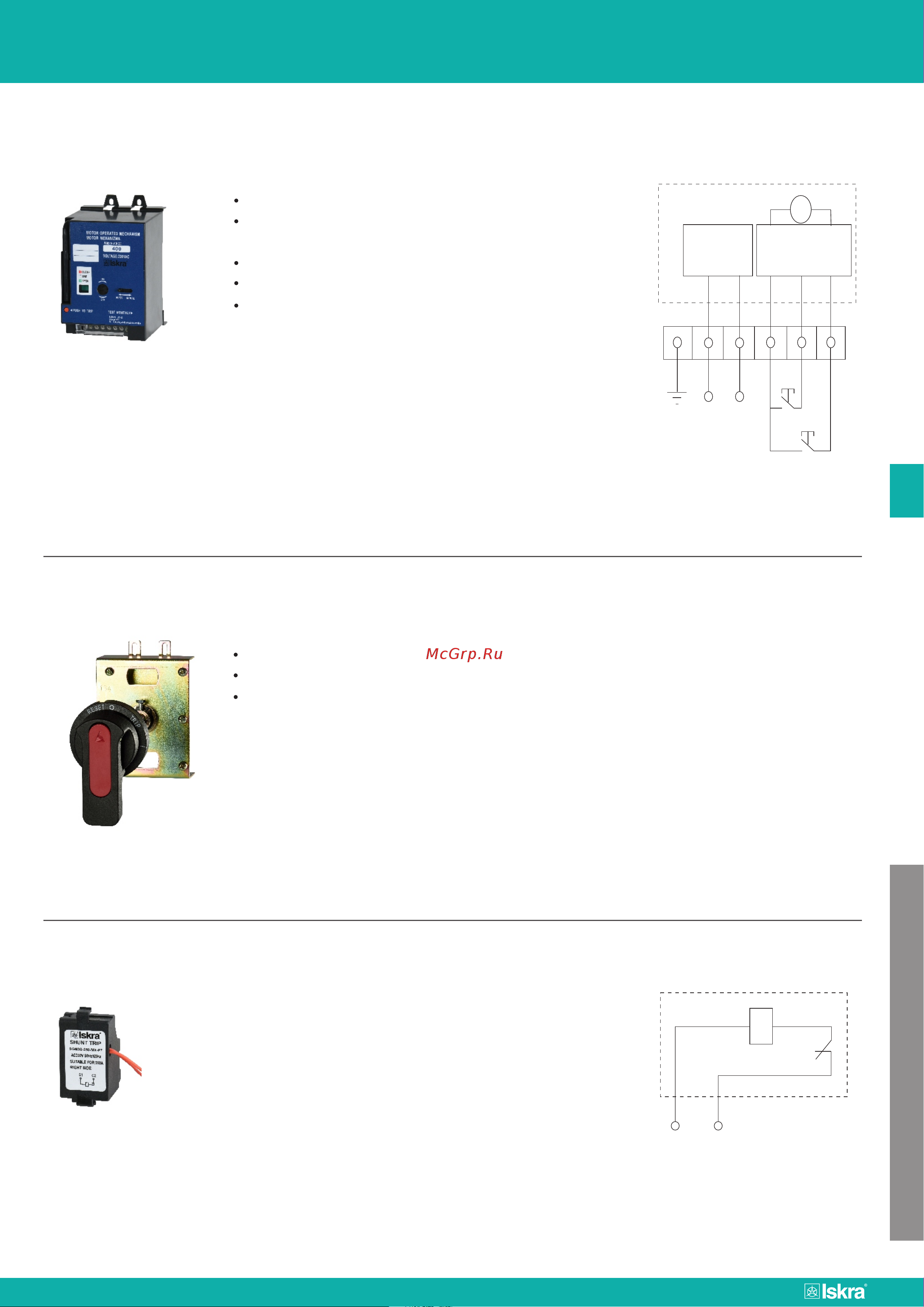

TECHNICAL DATA
MOLDED CASE CIRCUIT BREAKERS - ACCESSORIES
7
MOD
A1
A2
U
s
K
SHUNT RELEASE
Wiring diagram
Rated supply voltages U :
s
AC: 230 V, 400 V
NOTES: K-the microswitch in series with coil in the shunt release is the normally closed contact,
when circuit breaker opening,the contact disconnect automatically,switch on when closing;
in the dotted box is the circuit breaker inner wiring diagram.
DC: 24 V, 100 V, 220 V
0.7 - 1.1 U
s
Operation voltages:
7-9
M
P2
S1 S2 S3
SB1(open
)
SB2(close
)
P1
Controlling circuit
Power
source
ELECTRIC OPERATING SYSTEM
EXTENDED ROTARY HANDLE
Wiring diagram
Rated voltages:
AC: 230 V, 400 V
NOTES: in the dotted box is the circuit breaker inner wiring diagram.
Instruction:P1-P2: DC IN; SB1,SB2:
operating button(Equipped by user)
DC: 24 V, 100 V, 220 V
Remote operation of MCCBs
Motor mounts directly on MCCB with screws
(indluded) without removal of midcover
Manual operation possible
Clear ON/OFF/TRIP indication
Trip function
Rotary handle mounts directly on MCCB with screws (indluded) without removal of midcover
Clear ON/OFF/TRIP indication
Direct access to push to trip button with rotary handle mounted
