Model

A B C D E F

PRO 4 122 138 119 103,6 94 139

PRO 5 147 163 144 128,6 101 146

PRO 6 182 198 179 163,6 104 154

INSTALLATION AND SET UP PROCEDURES

DICITI fans are mounted both with airvents and independently.

DiCiTi fans are intended for wall and ceiling mounting. Models of DiCiTi fans with an ”02”

option are applied to wall mounting.

Mounting of DiCiTi fans is carried out as with ventilating air ducts and independently on

a plain vertical or horizontal surface, for models with an “02” option on a plain vertical

surface of sucient rigidness for installation of a product by means of screws. Tolerance

range of a mounting surface in vertical and horizontal directions is ± 0,5 mm.

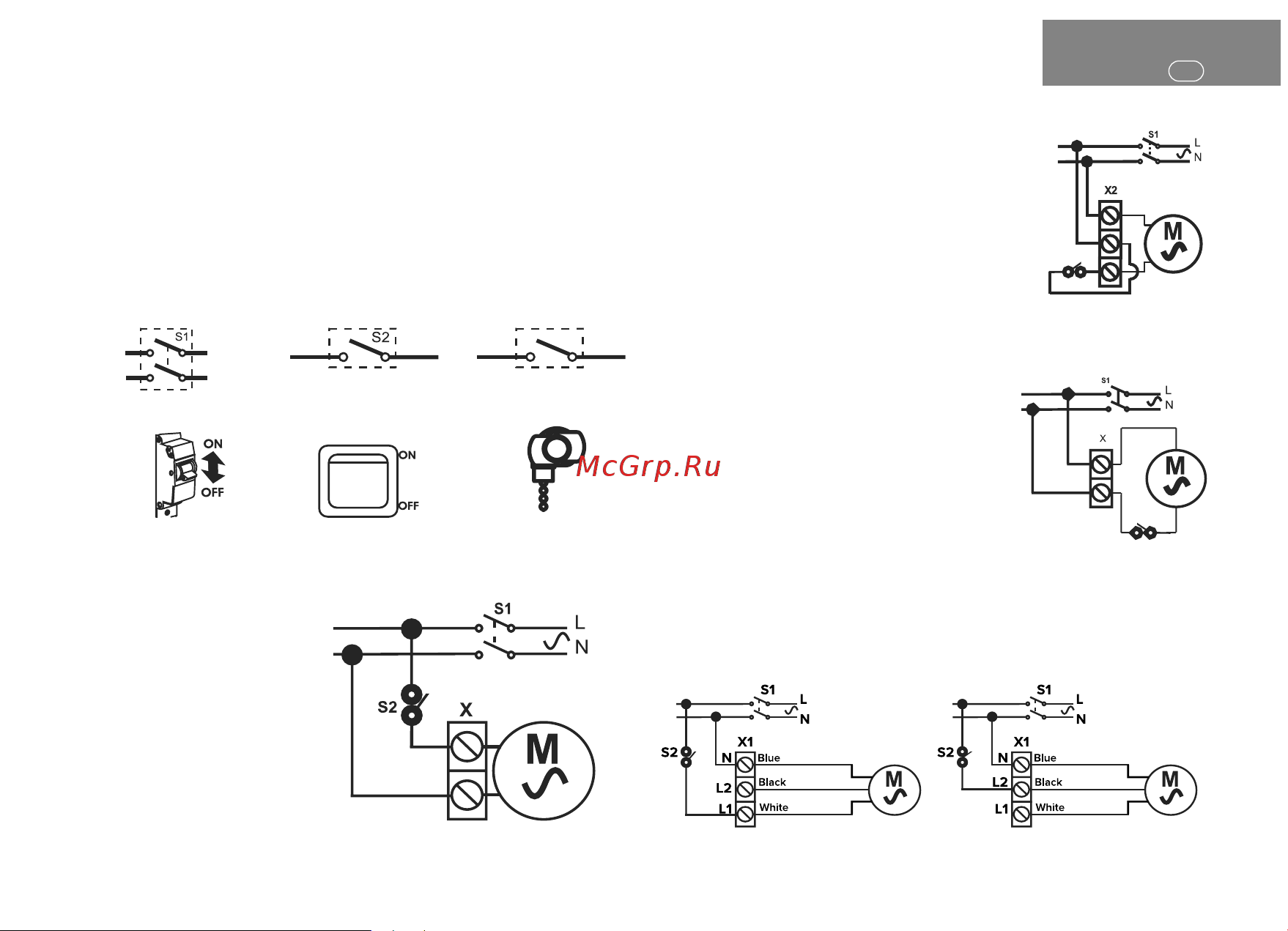

SCHEMATIC DIAGRAMS OF ERA FAN`S CONNECTION

Scheme 1

of fan connectuion (base model)

X- terminal block, 2 pairs

Scheme 2 (for STANDARD, PARUS models)

of fan connection, equipped with - 02 option (pull-chain switch).

X2- terminal block, 3 pairs

Scheme 3 (for BREEZE, SLIM, RIO models)

of fan connection, equipped with - 02 option (pull-chain switch)

X- terminal block, 2 pairs

Scheme 4 (for AURA 6, SILENT 6 models)

of fan connection, equipped with - 03 option (two-speed)

X- terminal block, 3 pairs

Legend of circuit breaker S1

on the scheme

Сircuit breaker S1

External switch S2

Built-in switch S3 (pull chain

switch)

Legend of external switch

S2 on the scheme

Legend of built-in switch S3

on the scheme

220-240V

220-240В (12 V*) 220-240V

• L1 – Low Speed • L2 – High Speed
