WIRING DIAGRAM CONNECTION OF DICITI FANS TO THE NETWORK

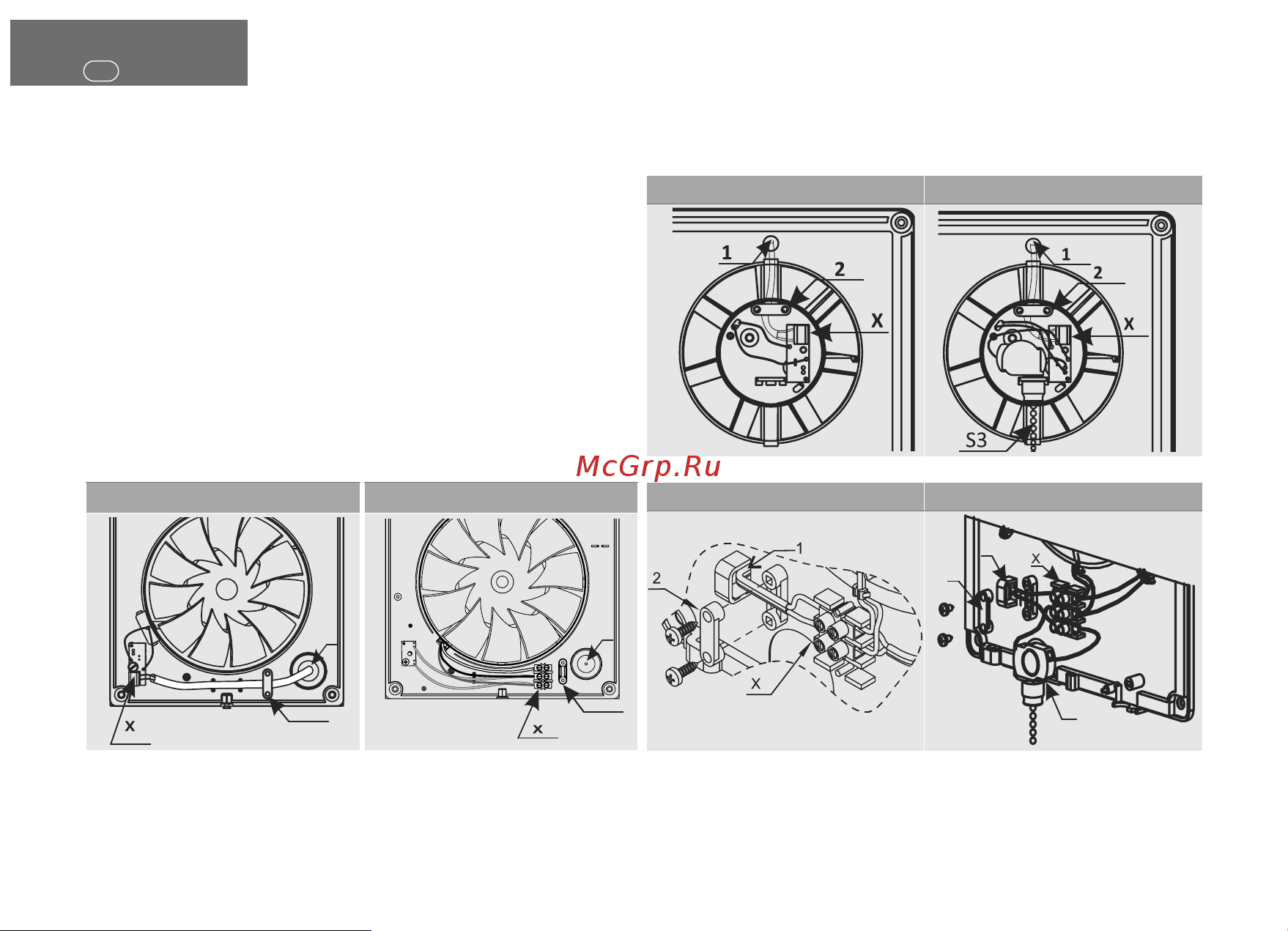

Connection of fan to the network shown in pic. 1-11.
Pic.3 SLIM Pic.4 SLIM -02
Pic.
5 STANDARD
Pic.
6 STANDARD-02
S3
1
2
2
Pic.1 AURA
/ SILENT
2
1
Pic.2 AURA 6
/ SILENT 6
AURA / SILENT (pic. 1-2); SLIM (pic. 3-4); STANDARD (pic. 5-6)
• remove the decorative front panel
• hold the power wire through the cable hole 1 in the case
• strip the insulation on 5-7 mm from the wire end
• insert wires into terminal box X and press them by tap screw (for connection of
AURA 6/ SILENT 6 see fig. 2 and electric scheme 4)
• fix the wires by means of cable clamp 2
• combine clamps of the decorative panel with grooves in the case
• fix the panel with screw
L1
L2
N
2
1
