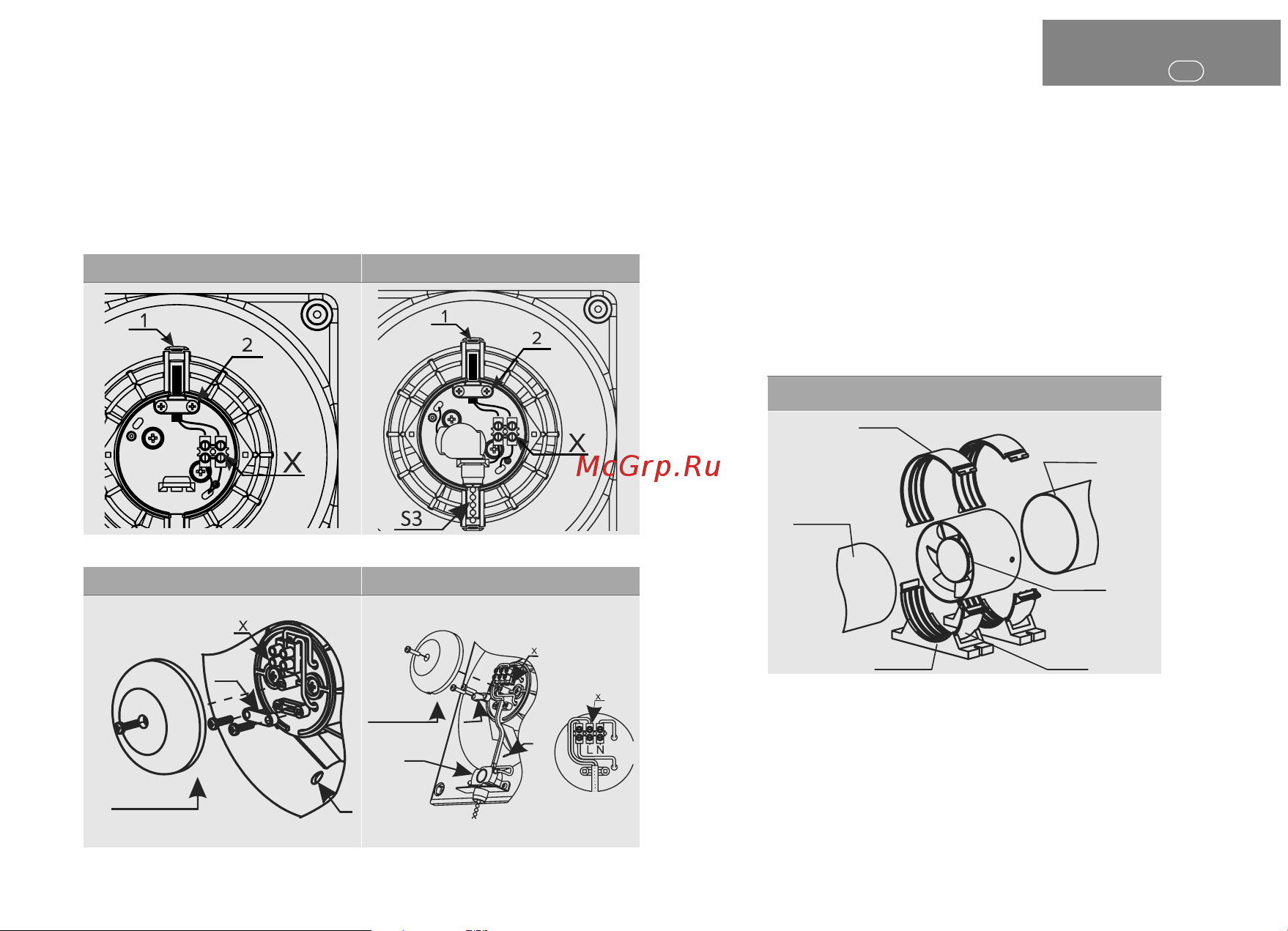

BREEZE / PARUS / RIO (Pic. 7-10)

• remove the decorative front panel and terminal block cover

• hold the power wire through the cable hole 1 in the case

• strip the insulation on 5-7 mm from the wire end

• insert wires into terminal box X and press them by tap screw

• ﬁx the wires by means of cable clamp 2

•install the cover of terminal block and front panel by easy pressure

Pic.7 BREEZE / RIO Pic.8 BREEZE-02 / RIO-02

Pic.9 PARUS / PRO

Pic.

10 PARUS -02

cover

of terminal block

cover

of terminal

block

PRO (Pic. 9, 11)

• remove the terminal block cover;

• hold the power wire through the cable hole 1 in the case

• strip the insulation on 5-7 mm from the wire end insert wires into terminal box X and

press them by tap screw;

• ﬁx the wires by means of cable clamp 2;

•install the cover of terminal block.

•Install brackets of holders;

•Install ﬁrst couple of covers in brackets ;

•Install the fan ;

•Butt airvents from two sides to the fan case

•Fix the fan case with airvents by means of another couple of covers.

Pic.11 PRO

fun

duct

connection

duct

connection

cover

bracket
