Water heater installation

NOTE!

Please use the accessories provided by the manufacturer to install the water heater.

The electric water heater must not be mounted on the wall before you make sure that

the bracket is securely installed. Any failure to do so may cause the electric water

heater to fall off the wall, which may cause its damage and even major incidents

including bodily injuries. When marking spots for the anchor bolt holes, allow at least

60-cm clearance between the bottom of the water heater and the floor to ensure easy

maintenance when required.

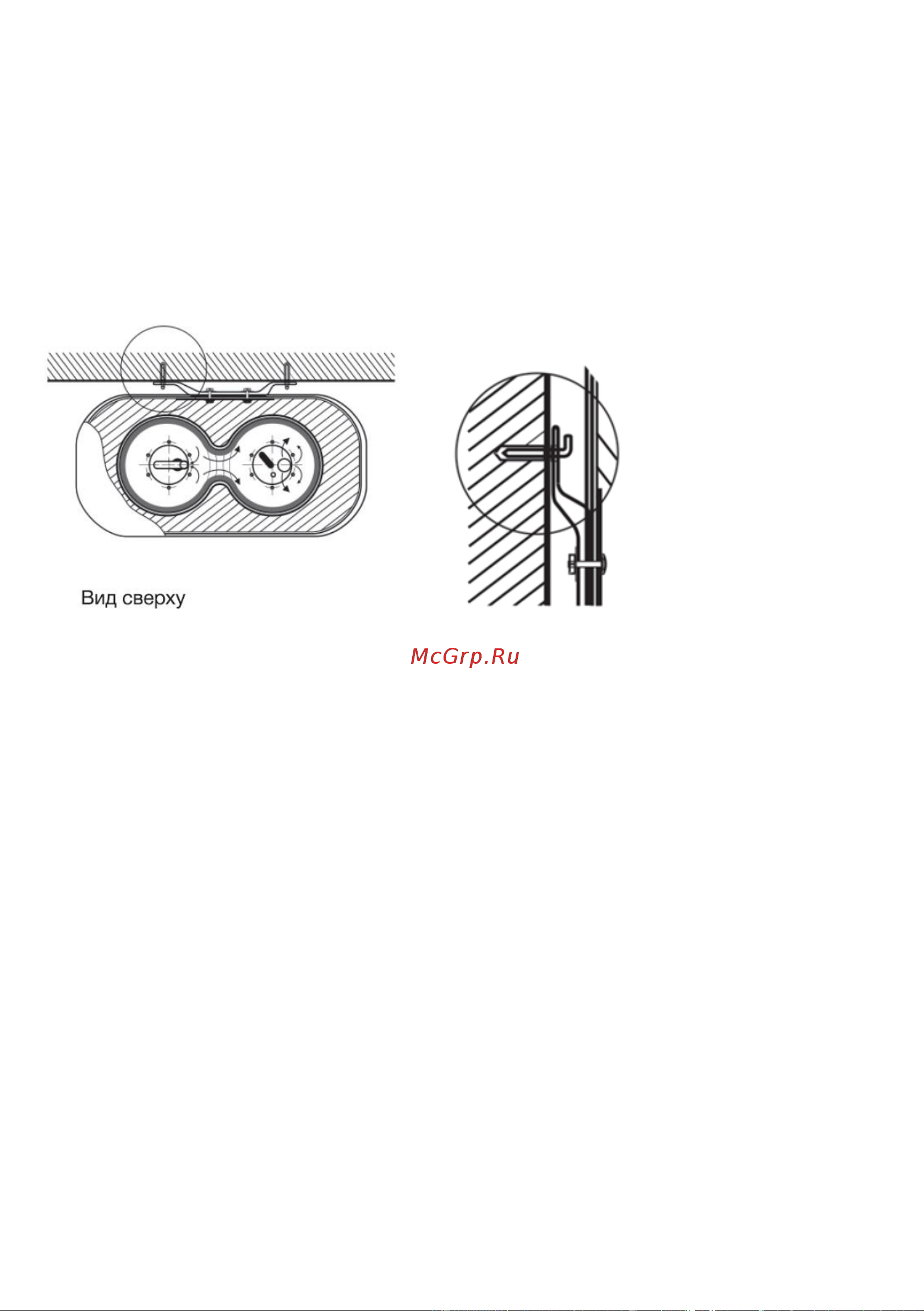

Fig. 3 Fig. 4

Once you have selected the proper site for the water heater, determine the spots for

the anchor bolt holes with hooks (according to the specifications of the product you

have acquired). Drill two holes of appropriate depth in the wall using a drill bit with the

diameter corresponding to the anchor bolts supplied with the water heater. Insert the

bolts into the holes and tighten the bolt nuts firmly by turning the bolt hooks clockwise,

then hang the water heater on the anchor bolt hooks (see Fig. 3,4).

Connecting to the water main

1. The water heater must be connected to the water main with a minimum pressure of

0.1 MPa and a maximum pressure of 0.7 MPa.

NOTE!

The water heater is a product, in which water pressure corresponds to water pressure

in the water main. If water pressure in the water main exceeds 0.7 MPa, a pressure-

reducing valve must be installed before the heater to ensure that water pressure does

not exceed 0.7 MPa.

2. To connect the water heater to the water main, 12 mm (G1/2) diameter pipes are

used.

3. Use rubber seal gaskets on the threaded ends of the pipes in order to prevent

leakage when connecting the pipes.
