English | 37

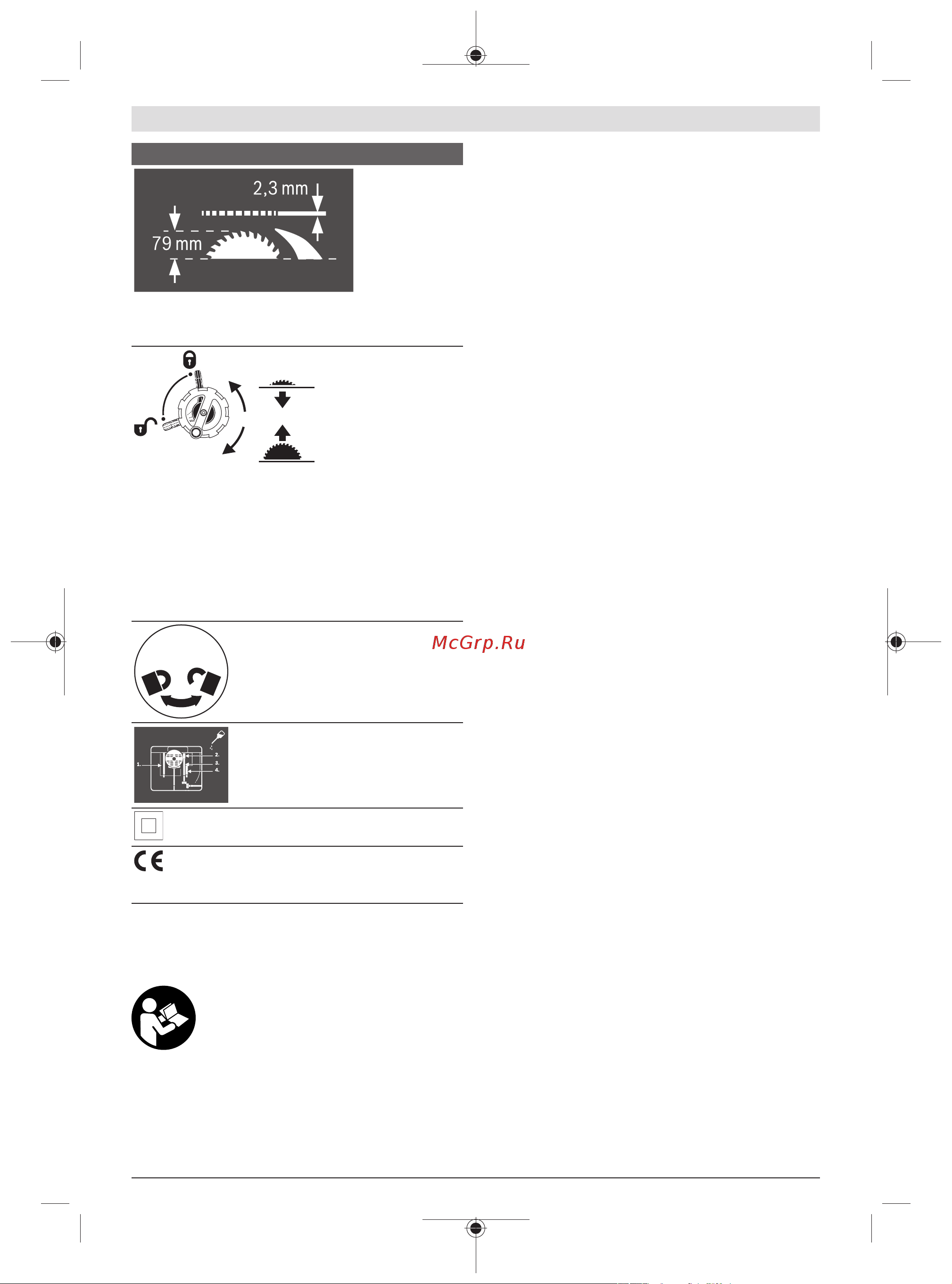

Symbols and their meaning
The riving knife is 2.3mm thick.
The maximum possible workpiece height is 79 mm.
Left-hand side:
Indicates the position of the locking lever for securing the
saw blade and setting the bevel angle (saw blade can be
swivelled).
Right-hand side:
Indicates the direction of rotation of the crank for lowering
(transport position) and raising (work position) the saw
blade.
Direction of rotation of the knurled screw
to fix/release the angle guide on the slid-
ing table.
Oil the power tool as necessary at the
points indicated.
Power tools from the protection classII
are strengthened or double-insulated.
CE mark signifies the manufacturer's con-
firmation that the power tool conforms to
the applicable EU guidelines.
Product description and
specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended use
The power tool is a stationary machine for cutting in a
straight line with and against the grain in hardwood, soft-
wood, chipboard and fibreboard. Mitre angles of -60° to
+60° as well as bevel angles of -1° to 47° are possible.
When using appropriate saw blades, sawing aluminium pro-
files and plastic is also possible.
Product features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
(1)
Scale for spacing between saw blade and parallel
guide
(2)
Slide carriage
(3)
Angle guide
(4)
Carrying handle
(5)
Label for marking the cutting line
(6)
Protective cover
(7)
Riving knife
(8)
Parallel guide
(9)
Guide groove for angle guide
(10)
Saw table extension
(11)
Saw table expansion
(12)
Securing nut for the saw blade storage compart-
ment cover and for hanging the push stick
(13)
Push stick
(14)
Saw blade storage compartment cover
(15)
Ring spanner (24mm; 23mm)
(16)
Mounting holes
(17)
Saw table
(18)
Clamping handle for saw table expansion
(19)
Hand wheel
(20)
Crank for raising and lowering the saw blade
(21)
Safety flap for the on/off switch
(22)
Bracket for storing the protective cover
(23)
Holding clip for storing the angle guide
(24)
Guide bar of the saw table extension
(25)
Stop for 45° bevel angle
(26)
Locking lever for setting the bevel angle
(27)
Scale for bevel angles
(28)
Stop for 0° bevel angle
(29)
Clamping handle for slide carriage
(30)
V guide groove on the saw table for the parallel
guide
(31)
Adjusting screw for adjusting the clamping force of
the parallel guide
(32)
Table insert
(33)
Saw blade
(34)
Profile rail
(35)
Guide groove for parallel guide
(36)
Parallel guide storage compartment
(37)
Hex key (5 mm)
Bosch Power Tools 1 609 92A 5B8 | (15.07.2019)
