1. Ways of installation

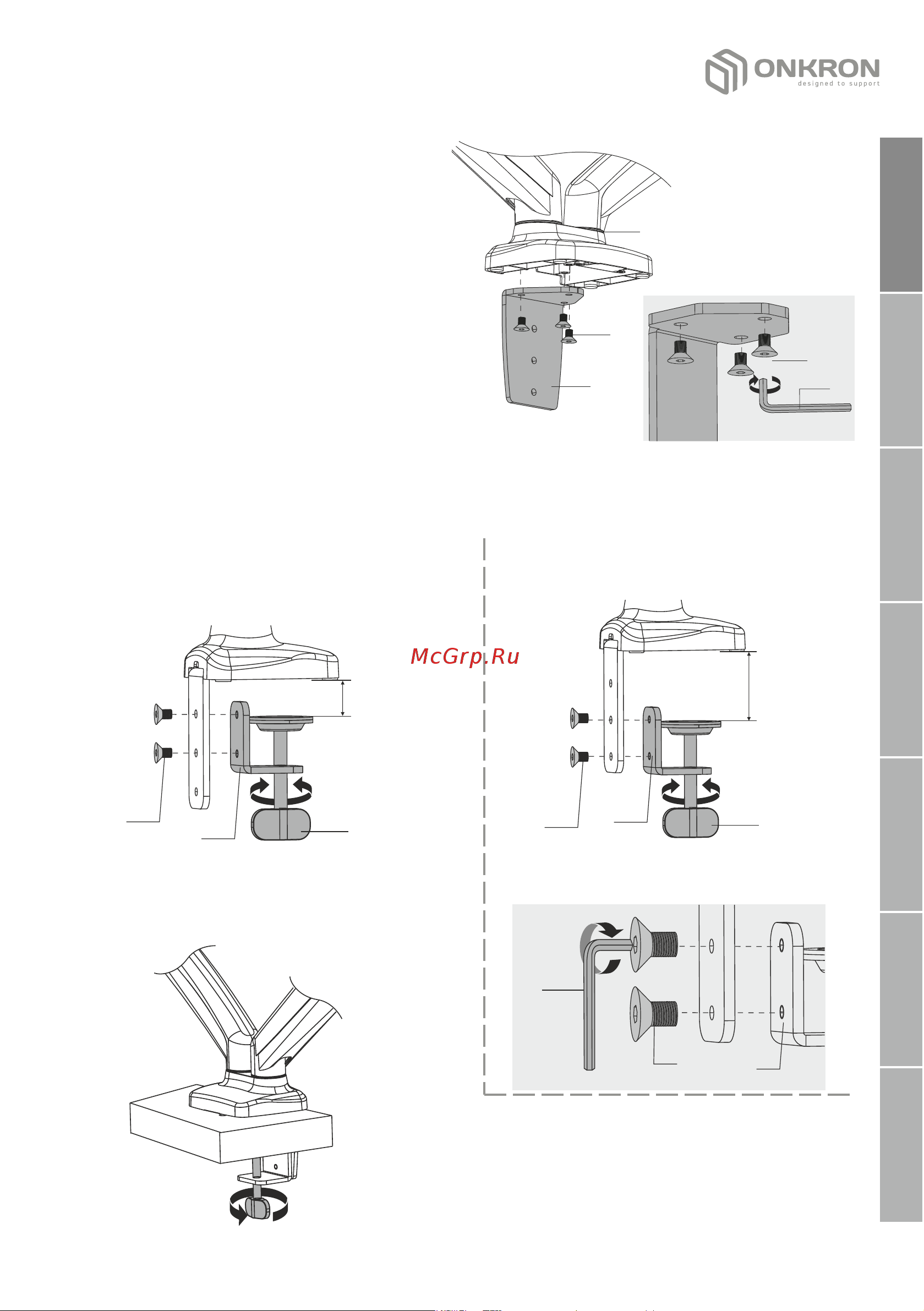

a) C-Clamp installation on the desk:

Fix the corner (B) to the base of the

bracket (A) with three screws (D) using

the key (I).

Depending on the thickness of the desk on which the bracket is installed, fix

the clamp (C) with two screws (D) using the key (I):

10-53mm

(0.4"-2")

50-83mm

(1.97"-3.27")

• In the upper and middle holes of

the corner (В).

min desktop thickness = 10 mm (0.4")

max desktop thickness = 53 mm (2")

min desktop thickness = 50 mm (1.97")

max desktop thickness = 83 mm (3.27")

• In the middle and bottom

corner hole (B).

џ Fasten the bracket to the edge of the

desktop with a clamp.

desk
