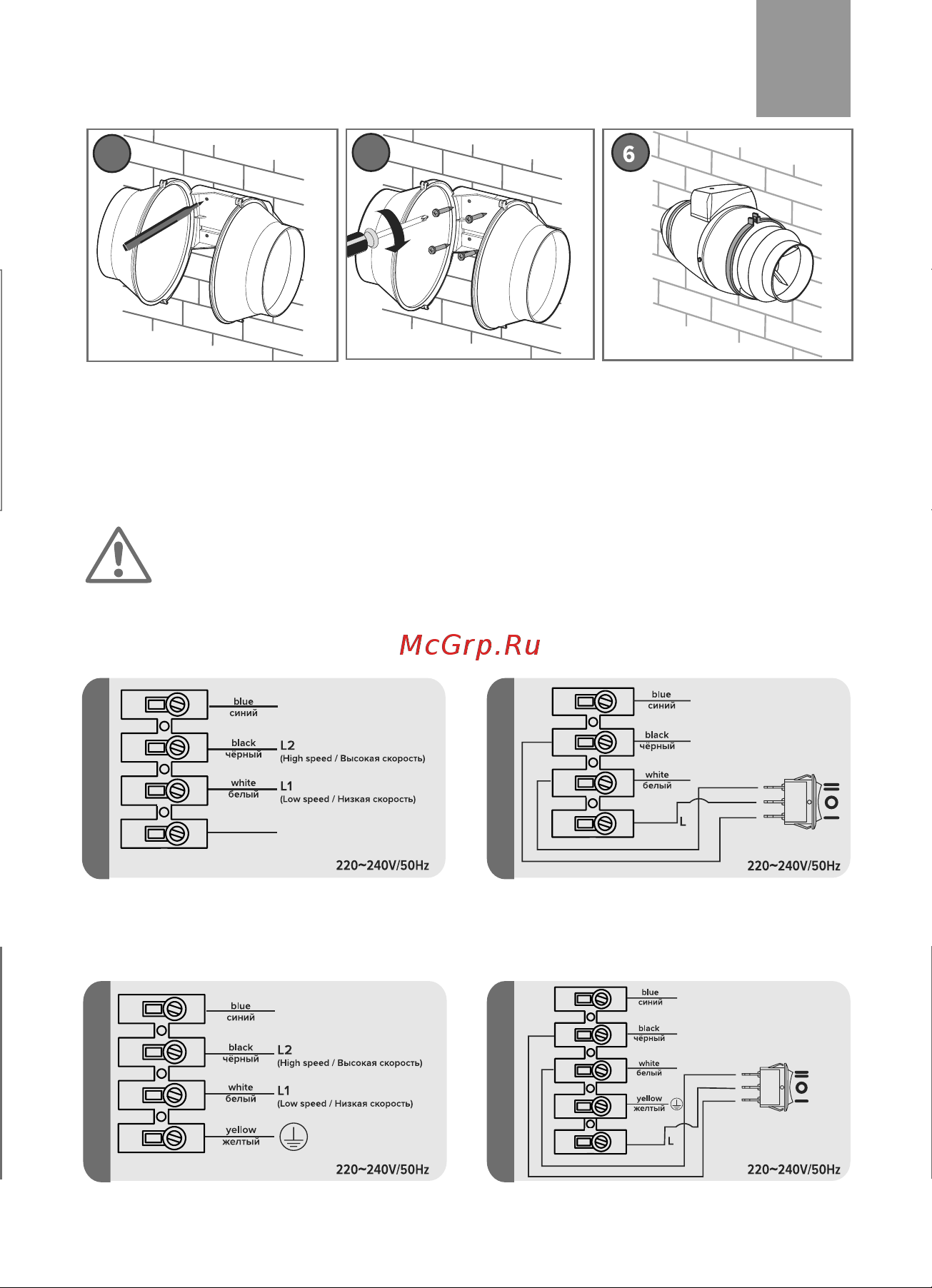

1. Disconnect power supply.

2. Open the clamp by pulling the tab upwards.

3. Remove the fan casing from the base.

4. Attach the base to the mounting surface and mark the screw hole.

5. Drill holes; ﬁx the fan base to the mounting surface with screws.

6. Install the body by tightly connecting the clamp.

ATTENTION!

By installing the speed switch button, the protection level is reduced to IP42.

1. Remove the cover with a wide ﬂat screwdriver. To do this, insert a screwdriver into the groove of the plug on the terminal

box casing and knock out the plug with a sharp blow.

2. Install the button in the drilled hole.

3. Connect, according to the diagram using RPI-M(n) 1.5-6.3 connectors (3 pcs., not included). To connect, it is necessary to

bring the wires into ﬂat connectors and clamp them with a crimping tool. You can also connect the contacts in other safe

ways: by twisting, soldering, and welding.

Installation instructions for the speed switch button:

Figure 2.

TYPHOON wiring connection diagram

Wiring connection diagram for models with ﬂange

diameter 100-200 (for fans without speed switch button)

Wiring connection diagram for models with ﬂange

diameter 100-200 (for fans with speed switch button)

Wiring connection diagram for models with ﬂange

diameter 250, 315 (for fans without speed switch button)

Wiring connection diagram for models with ﬂange

diameter 250, 315 (for fans with speed switch button)

Figure 3.

(Neutral)

Figure 2aFigure 3a

Figure 2bFigure 3b

(Neutral)
