Gear case Grease

Trimmer Screws/nuts/bolts Tighten or replace

V V

Not adjusting screws

Debris guard Make sure to attach

A WARNING

Make sure that the engine has stopped and is cool before performing any service to the machine. Contact with moving

cutting head or hot muffler may result in a personal injury.

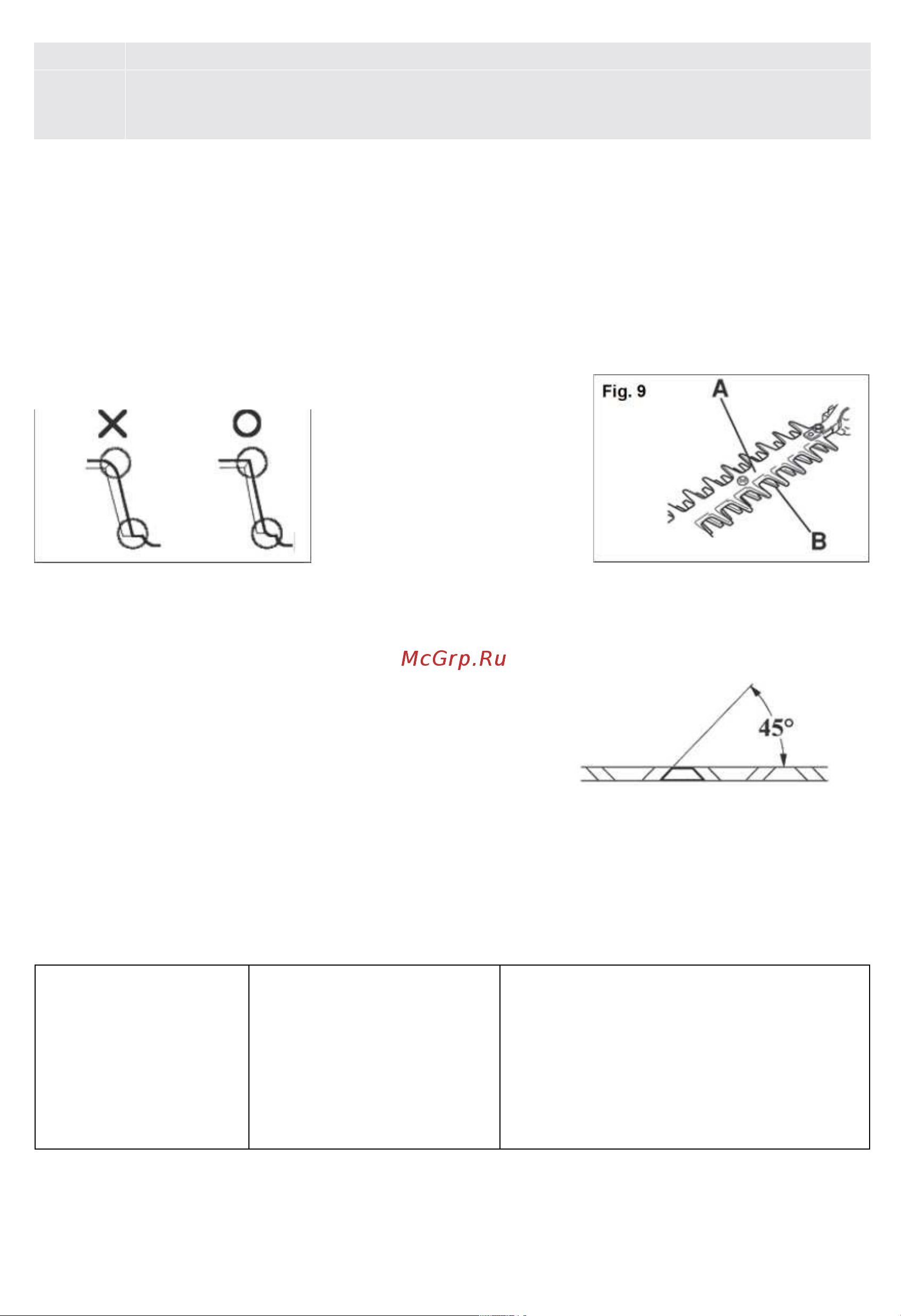

Blade

• Check the blade and the fasteners for looseness, cracking, or bending.

• Check the cutting edges and reform with a flat file. Point:

1. Keep the end corner sharp.

2. Round the root of the edge.

3. Do not use water when using a grinder.

You need not to adjust the gap between upper blade and lower blade as this product is designed to have optimal gap

when it is properly set up. Fig. 8

The blade guard (A) is intended to protect against any part of the body coming into contact with the blades (B).

Check that the blade guard is not damaged or distorted. Replace the blade guard if it is bent or damaged. Fig. 9

A IMPORTANT.

When mounting the blade, make sure to fasten the spacer, washer and bolt, then fasten the nut.

Sharpening

Always keep the file or sharpener at an angle of 45° to the blade, and:

• Always grind in the direction of the cutting edge;

• Note: files cut only in one direction; lift the file from the blade when returning

to start a new pass;

• Remove all burr from the edge of the blade with a slip stone;

' Remove as little material as possible;

• Before refitting the sharpened blades, remove filings and then apply grease.

• Do not try to sharpen a damaged blade: change it or take it to a Service dealer

Safety lock

A WARNING

Stop operation when the safety lock is defective.

Safety lock is the device not to accelerate the throttle lever without intention. While pushing the safety lock, you can accelerate

the throttle lever. (1) Safety lock Fig. 10

Fig. 10

\\\

Fig. 11

Fig. 12 „ Г

Fig. 8
