Features and Controls

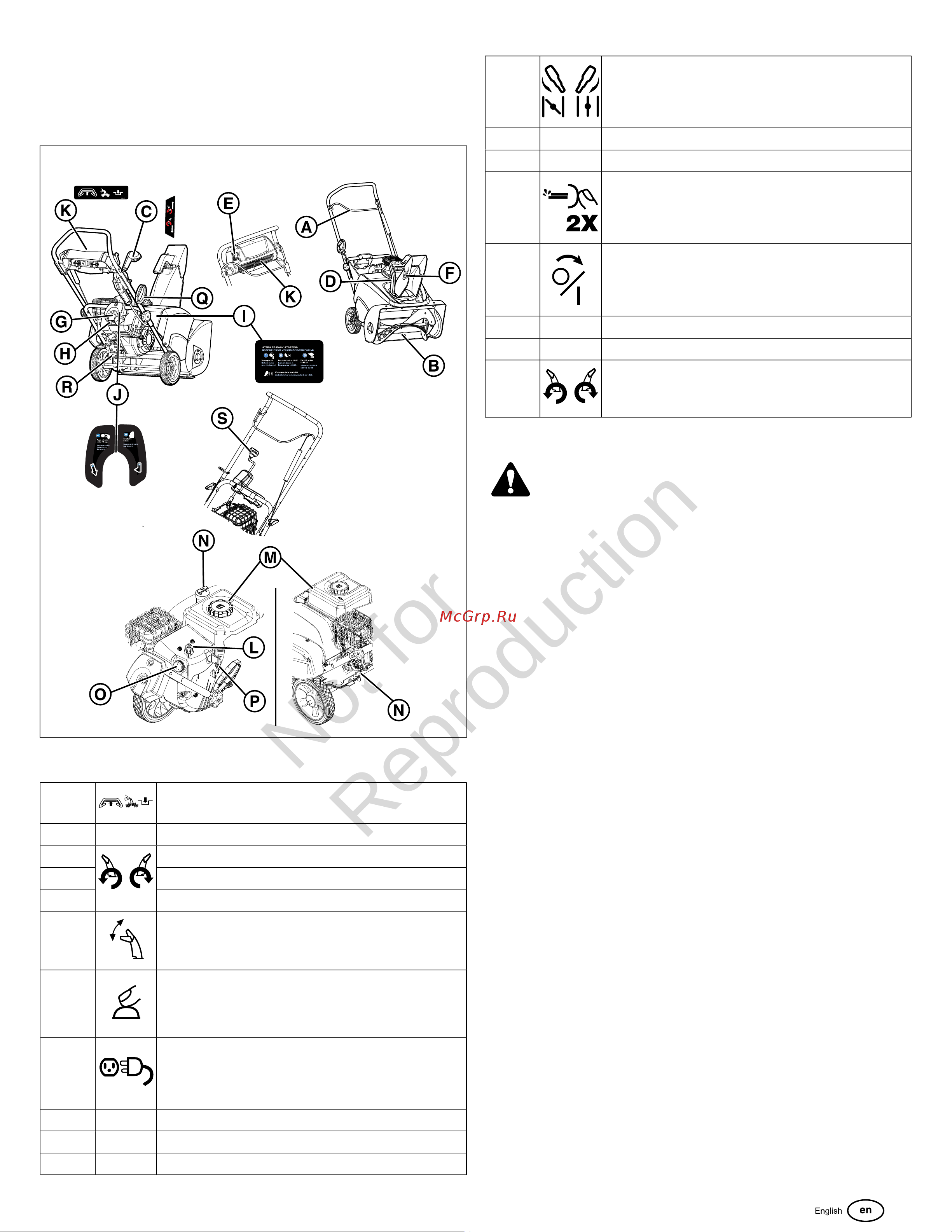

Compare the callout letters (Figure2) to the features and

controls shown in the table below.

Control Symbols and Meanings

A Auger control

B — — — Auger

C Chute Control - Lever Operated

D Chute Control - Handle Operated

E Chute Control - Switch Operated

F Deflector Control -Trigger or Wing Knob

G Starter Button

H Starter Receptacle

I — — — Starting Instructions Decal (if equipped)

J — — — Starting Instructions Decal (if equipped)

K — — — Headlight (if equipped)

L Choke CLOSED/OPEN

M — — — Fuel Tank Cap

N — — — Oil Fill/Dipstick

O Primer Button

P Ignition Switch

Q — — — Starter Cord Handle

R — — — Oil Drain Plug

S Chute Control - Crank Operated

Operation

WARNING

This snowthrower is only as safe as the operator. If it is

misused, or not maintained correctly, it can be dangerous.

Remember you are responsible for your safety and those

around you.

• When leaving the operating position always disengage

the auger, STOP the engine, and remove the key. DO

NOT leave a running machine unattended.

• DO NOT operate the snowthrower without the correct

guards, and other safety protective devices in place and

working.

• Be careful when you operate the unit on gravel

driveways, walkways, or roads. Stay alert for hidden

hazards or traffic.

• DO NOToperate the snowthrower without good

visibility or light. Always be sure of your footing, and

keep a firm hold on the handles. Walk; never run.

• Be careful to avoid slipping or falling, especially when

you operate the snowthrower in reverse.

• Be careful when you operate the snowthrower on

slopes.

• If you strike a foreign object, stop the engine, remove

the wire from the spark plug, thoroughly inspect the

snowthrower for damage, and repair the damage before

you start and operate the snowthrower.

• DO NOT operate the equipment without wearing

adequate winter garments. Avoid loose fitting clothing

that can get caught in moving parts. Wear footwear that

will improve footing on slippery surfaces.

• DO NOT touch a hot muffler or engine. Let the muffler

and engine cylinder to cool before touching.

Operating Area

1. Identify the walkways and driveways where you plan to

operate the snowthrower.
