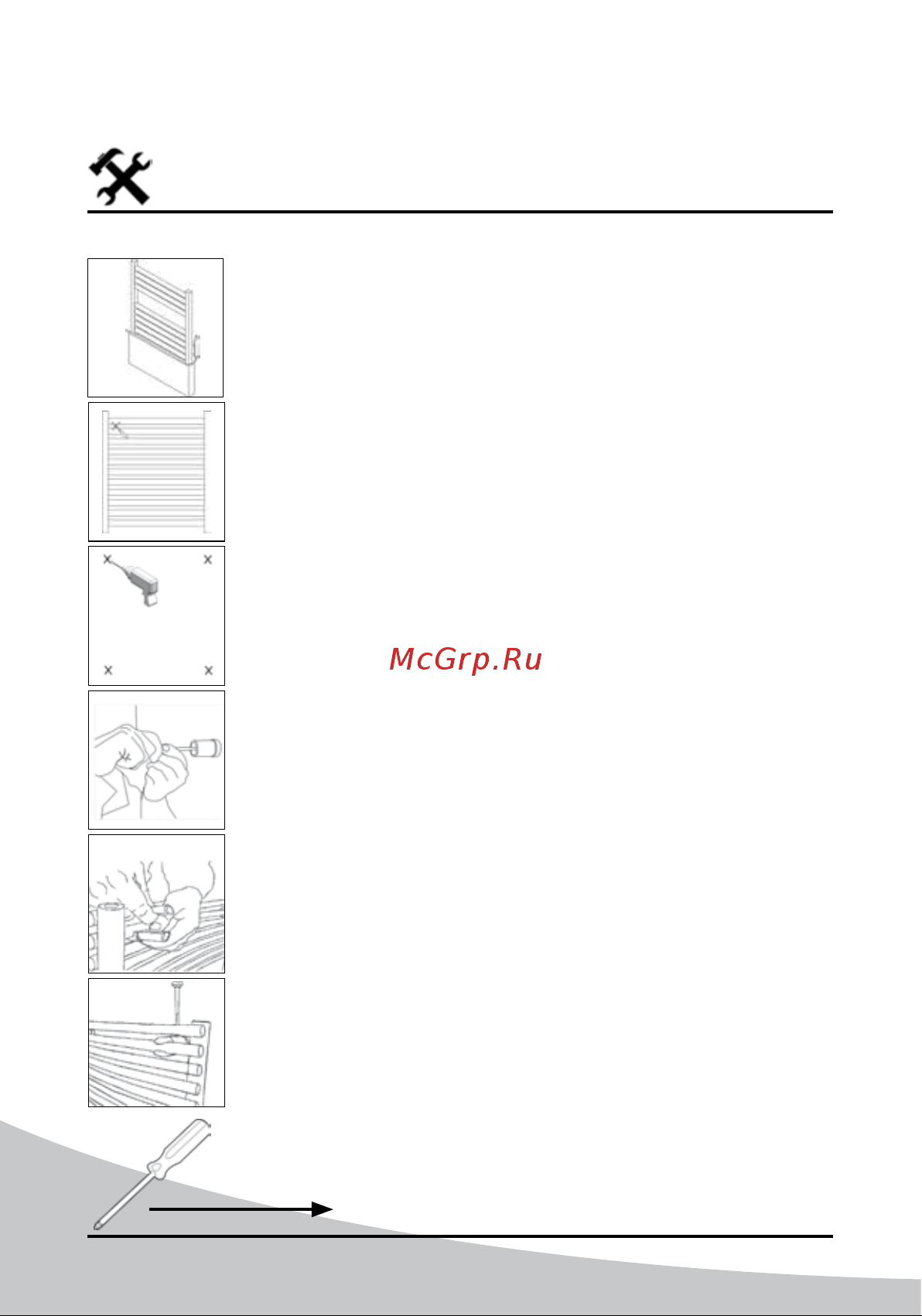

2. INSTALLATION INSTRUCTIONS

2.1 Standard Model

1. Open the packing box and take out the radiator with

its protective nylon cover. Tear the protective nylon

cover outside the box without giving any harm to the

appliance and take out the assembly unit.

2. Correct space has to be measured in order that the

connection cord can easily be connected to the electric

socket. After determination of the installation area, the

holes must be marked according to the method shown

in Figure 4.

3. After marking the points according to Figure 4, the

holes will be drilled by a 010 mm drill and the plastic

dowels (see gure 3-part “A”) that are in the installation

items are inserted to these holes.

4. Attach the anchors(4 pieces) (see gure 3 - part”B”)

onto plastic dowels with the washer (see gure 3 -part

“C ) and the screw (see gure 3 - part “D”)

5. Insert the plastic parts (see gure 3 - part “E”) into the

lower installation bracket (see gure 3 - part “G”) and x

the installation brackets (see gure 3 - part “F-G”)on the

tubes with the screw (see gure 3 - part “H”).

6. Attach the installation brackets(4 pieces) on the

towel warmer and x the towel warmer on the wail by

screwing (see gure 3 - part “I”) the installation brackets

onto anchors (see gure 3 - part “B”) on the wall.

Note: Protect the control unit against impacts and

crashes during installation.

Ø6 x 150 mm
