2.2 Chromated Model

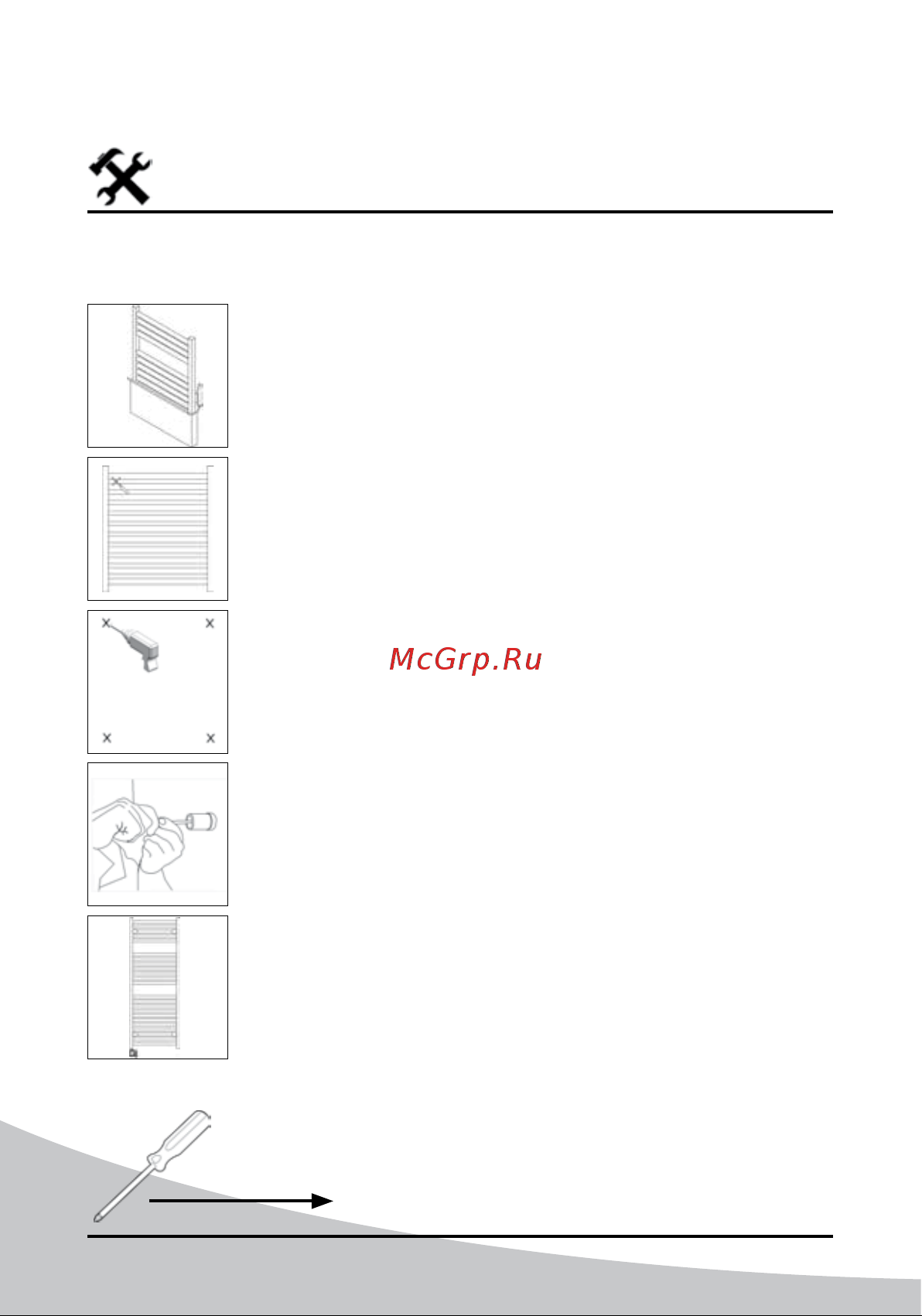

1. Open the packing box and take out the radiator with

its protective nylon cover. Tear the protective nylon

cover outside the box without giving any harm to the

appliance and take out the assembly unit.

2. Correct space has to be measured in order that the

connection cord can easily be connected to the electric

socket. After determination of the installation area, the

holes must be marked according to the method shown

in Figure 6.

3. After marking the points according to Figure 6, the

holes will be drilled by a Ø10 mm drill and the plastic

dowels (see gure 5 -part “1”) that are in the installation

items are inserted to these holes.

4. Attach the anchors (4 pieces) (see gure 5 - part”2”)

onto plastic dowels with the washer (see gure 5 -part

“3”) and the screw (see gure 5 - part “4”).

5. Then you will x your towel warmer on the wall with

assembly parts 5, 6, 7, 8, 9, 10 as its shown in gure 6.

Note: Protect the control unit against impacts and

crashes during installation.

Ø6 x 150 mm
