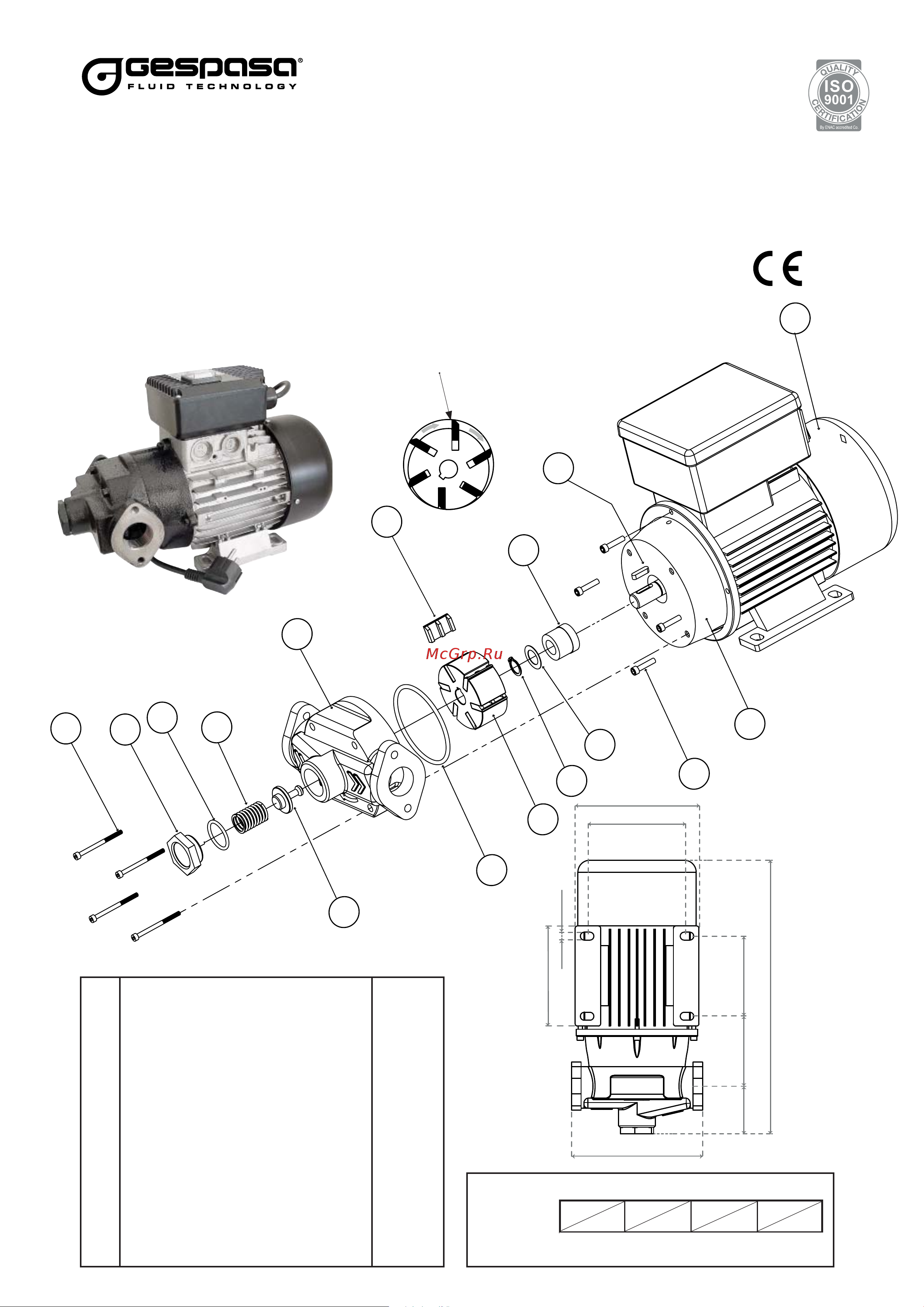

INSTRUCTION MANUAL

WARRANTY AND CONFORMITY DECLARATION

No. DESCRIPTION CODE

4 6-BLADE SET 000302009

6 M-6x55 mm DIN.912 SCREW 805400001

7 BYPASS PLUG 000302008

8 30x3 mm NBR JOINT 803100019

10 POLYESTER BYPASS VALVE 805606101

11 85x4 mm PUMP BODY JOINT 803100020

14 M-5x22 mm DIN.912 ZINC-PLATED SCREW 805400008

20 1 kW MOTOR 003601002

21 CERAMIC MECHANICAL SEAL 804601009

22 MOTOR FLANGE 003602000

23 BYPASS SPRING 003603000

24 SINTERED ROLLER 000302014

25 5x5x20 mm COTTER PIN 000302002

26 PUMP BODY WITH FLANGES 000302101

27 Ext. 16 mm DIN. 471 SEGER RING 800303011

28 D.16x22x0.5 mm DIN.988 WASHER 800300039

AG-100 230 VAC

PA-80PA-60FREE PA-120

l/min

3.9 A

5.1 A 4.8 A

4.1 A

CONNECTION: 1" · SUCTION: 2,7 m 1 1/2" · DELIVERY: 4 m 1 1/4"

AG-100 1 kW 230 VAC 50/60 Hz CODE 00360

365

125

9164 100

165

h: 245

125

155

M-229

clockwise turn sense

sentido giro horario
