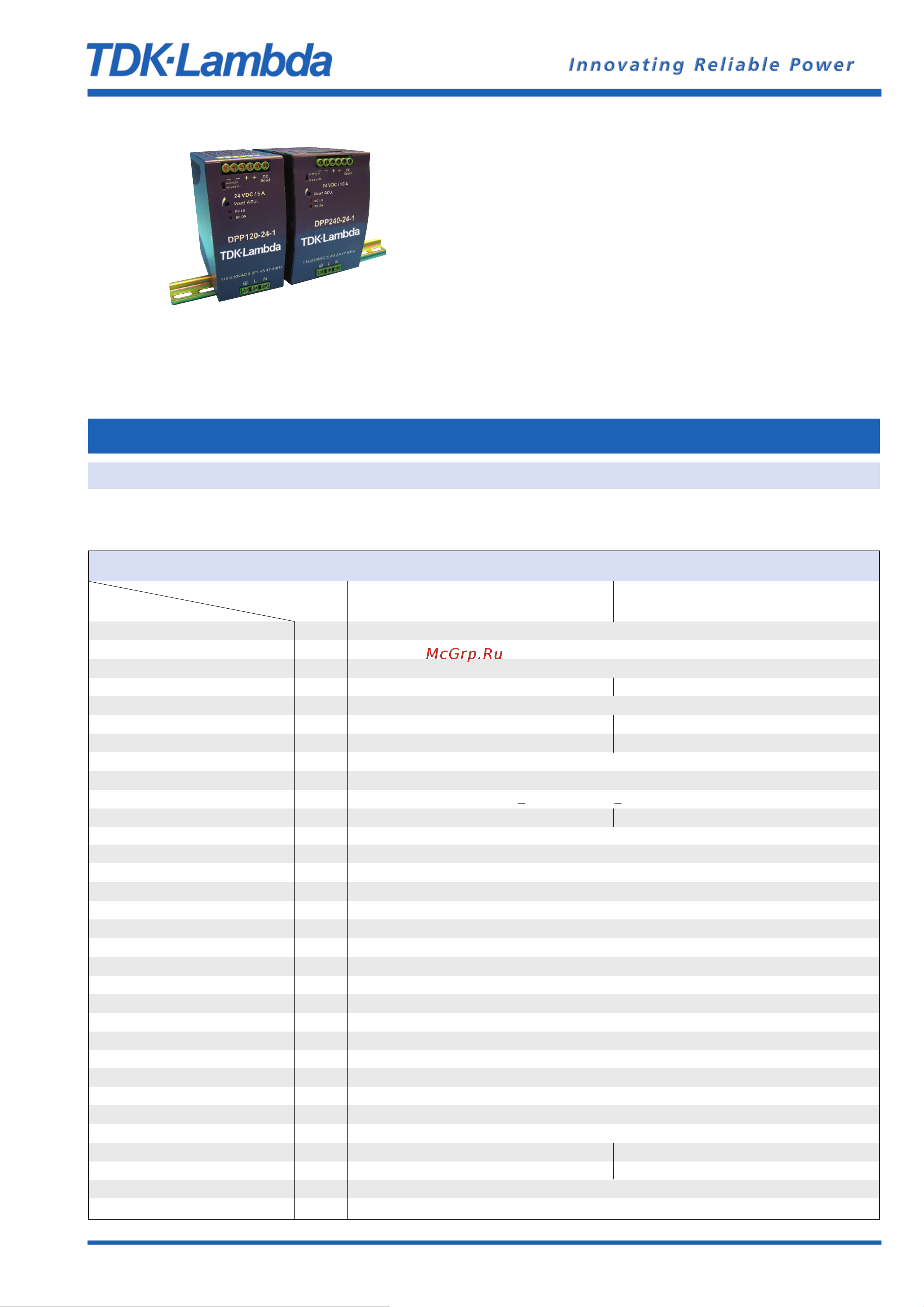

DPP120 & 240 Series
120W & 240W Single Output DIN Rail Mount Power Supplies
Key Market Segments & Applications
Industrial Controls: Motor Control Systems
Factory Automation: Process Control, Automotive,
Test & Measurement: Chemical Processing
Burn in & Test,
Instrumentation Measurement
• Low Cost
• 12, 24 or 48V Outputs
• Wide Range AC Input
• Parallel Function Switch
•
-40°C to +71°C Operation
DPP120 & 240 Features and Benefits
Features Benefits
• PFC Compliant to EN61000-3-2 • Supports Global Use
• UL508 Approvals • Easier System Configuration
• TS35/7.5 or TS35/15 DIN Rail Mounting • Easy System Integration
MODELS DPP120 DPP240
ITEMS
AC Input Voltage range VAC 90 - 132/180-264VAC (auto select)
Input Frequency Hz 47 - 63Hz
DC Input Voltage range VDC 210 - 370VDC
Inrush Current (115 / 230VAC) A 24/48A 30/60A
Power Factor - typ 0.7 at 230VAC input
Input Current (115/230VAC) A 2.2/0.83A 5.4/2.2A
Output Voltage V 12 , 24 or 48V 24 or 48V
Output Voltage Accuracy % -0, +1% of Nominal
Line Regulation % ±0.5%
Load Regulation %+
1% Single Mode +5% Parallel Mode
Ripple and Noise (20MHz BW) mV <50mV <100mV
Overcurrent Protection (Typ) - 120 - 145%
Overvoltage Protection V 120 - 145%
Hold Up Time (230VAC input) ms >30 ms
Efficiency (typ) % 84 - 90% (see table)
Parallel Operation (1) - Up to 3 units
LED Indicators - Green LED = On, Red LED = DC Output Low
DC Good Relay (24V model only) -0.3A rated normally open relay contacts, closes when output is above 17.6 - 19.4V
Operating Temperature (2) - -40°C to +71°C (Derate linearly 2.5% per °C from 61°C to 71°C)
Storage Temperature - -40°C to +85°C
Operating Humidity - 20 - 95% RH (non condendsing)
Cooling (3) - Convection
Withstand Voltage - Input to Output 3kVAC for 1 min.
Isolation Resistance Ω >100MΩ at 25°C & 70%RH, Output to Ground 500VDC
Vibration (Operating)
IEC 60068-2-6 (Mounting by rail: Random wave, 10-500 Hz, 2G, ea. along X, Y, Z axes 10 min/cycle, 60 min)
Shock (Operating) IEC 60068-2-27 (Half sine wave, 4G, 22ms, 3 axes, 6 Faces, 3 times for each face)
Safety Agency Approvals (4) - UL508 Listed, UL60950-1, EN60950-1, CE
Conducted & Radiated EMI - EN55022 class B
Weight (Typ) g 920 1000
Size (HxWxD) mm 125 x 63.5 x 123.6 125 x 83 x 126
Case material - Metal
Warranty yrs 3
Specifications
