Rossvik V-626 автоматический, до 26", 380 В, 2 скорости V-626/380 2sp Деталировка онлайн [6/28] 841986

716

12 2728

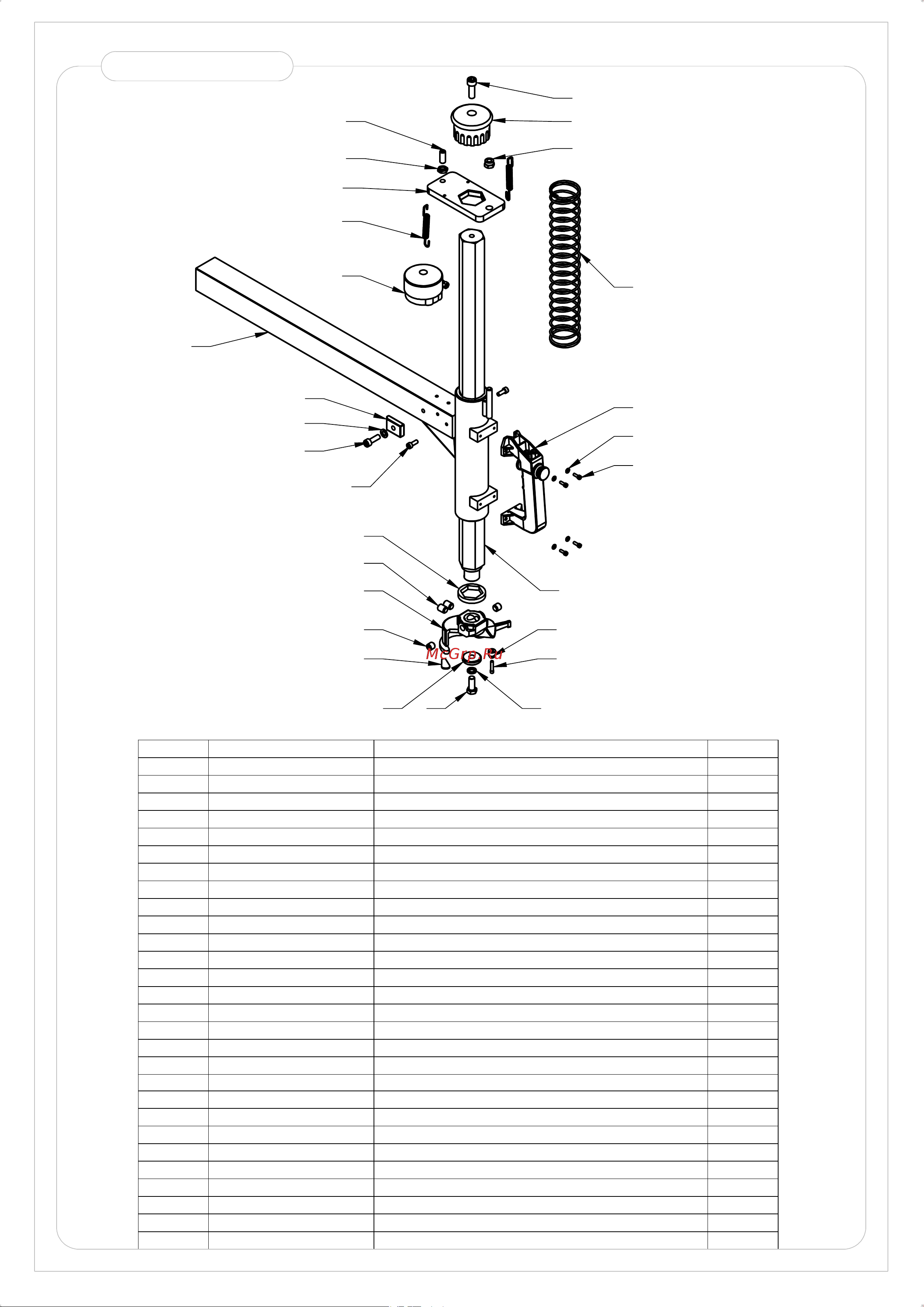

ITEM PART.No DESCRIPTION. QT.Y

1 C-80-1321000 HORIZONTAL ARM WELDING 1

2 C-70-1223000 LOCKING CYLINDER ASSY 1

3 C-70-1224000 HANDLE CONTROLING VALVE 1

4 C-80-1320001 HEXAGON SHAFT 1

5 C-80-1320002 HEXANGULAR LOCK PLATE 1

6 C-80-1320003 VERTICAL SHAFT SPRING 1

7 C-90-1220004 VERTICAL SHAFT COVER 1

8 C-70-1220005 POSITIONING BLOCK 1

9 C-70-1220004 SPRING 2

10 C-54-1300007 SHOCK ABSORBER WASHER 1

11 C-31-1300013 DEMOUNTING HEAD 1

12 C-54-1300008 PRESS WASHER 1

13 C-54-1300009 ROLLER 1

14 C-54-1300006 ROLLER BOLT 1

15 C-31-1300015 PLASTIC COVER 1

16 C-70-1200010 INNER HEXA FLAT TERMINUS SET SCREW 1

GB70.1-M6×16

INNER HEXA CYLINDRICAL SCREW 2

GB6173-M10×1.0

HEXA THIN NUT 1

19 GB889.1- M10 1-TYPE PREVAILING TORQUE TYPE HEXAGON LOCK NUT 1

GB70.1-M10×30

INNER HEXA CYLINDRICAL SCREW 1

21 GB95-8 FLAT WASHER 1

GB70.1-M8×25

INNER HEXA CYLINDRICAL SCREW 1

23 GB95-4 FLAT WASHER 4

GB70.1-M4×12

INNER HEXA CYLINDRICAL SCREW 4

GB77-M12×12

INNER HEXA FLAT TERMINUS SET SCREW 2

GB77-M12×16

INNER HEXA FLAT TERMINUS SET SCREW 2

27 GB93-10 STANDARD SPRING WASHER 1

GB5783-M10×25

HEXANGULAR BOLT 1

REVISION A-01

C-80-1320000
