Water outlet

Lever

Washer

Spacer

Nut

Quick connect tting

e. Switch off the three-way ball valve. Turn on

the cold water supply. Wipe the connections

with a tissue to see if there is leakage. If the

tissue stays dry, it means the three-way ball

valve is installed properly.

Hot Cold

2. Install the faucet

Note:

Select an appropriate installation position. The environment where the faucet is

installed should adhere to any appropriate hygiene and sanitation conditions.

Make sure the faucet sits flat on top of the sink or countertop surface.

a. Drill a hole with a diameter of about 25mm. Skip this step if there is already a

hole in the sink or the countertop surface.

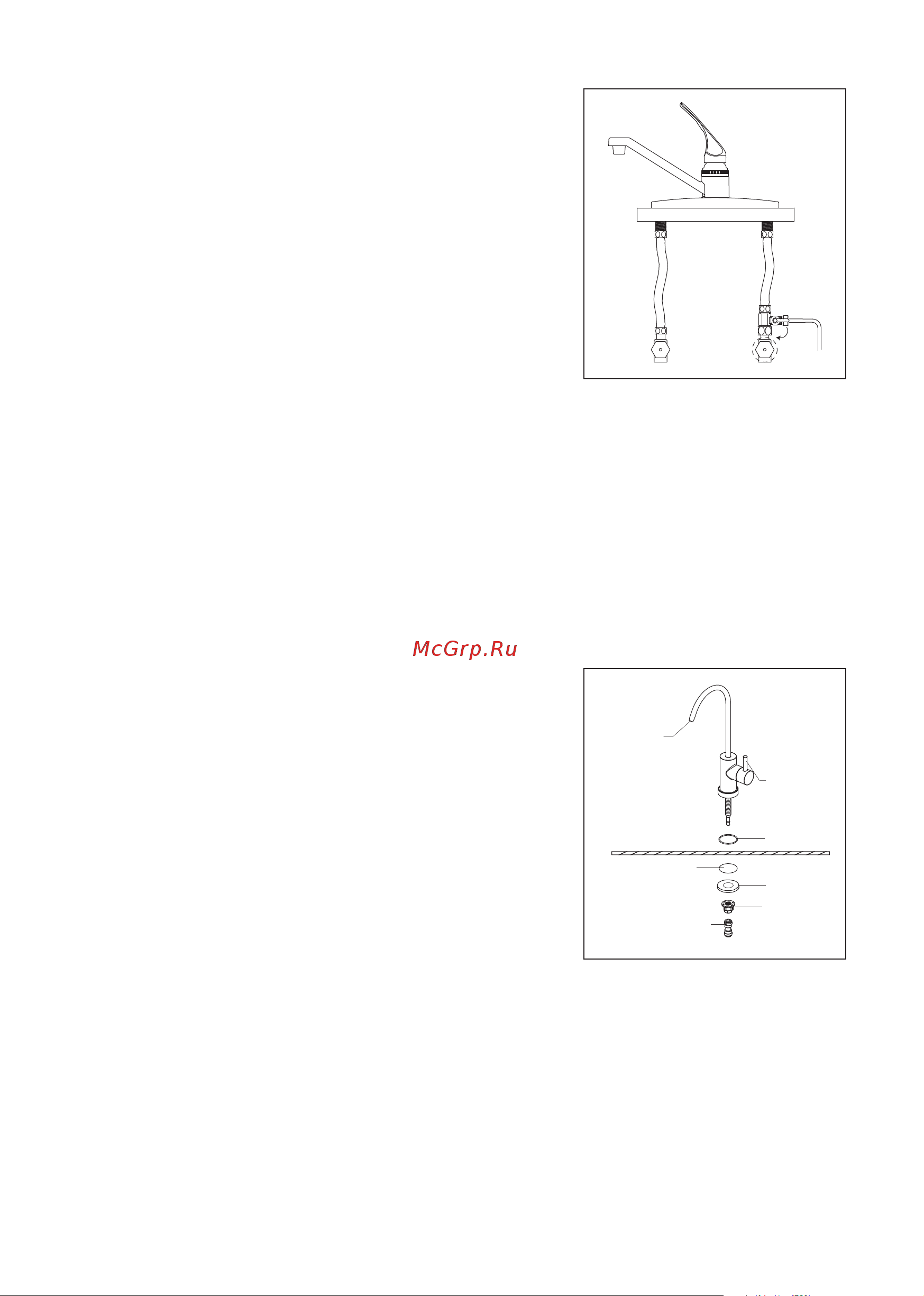

b. Install the faucet according to the diagram.

Screw the faucet stem nut all the way up the

faucet stem, and tighten it to secure the faucet.

3. Installing the system

Note:

Please check if there is sucient space for installing the system itself, its accessories,

connections, and for servicing and repair. Under no circumstances should the system

be installed outdoors. The environment where the system is installed should

adhere to any appropriate hygiene and sanitation conditions. Avoid any external

dripping liquids from pipes or drains etc onto the system.

(1)

(2)
