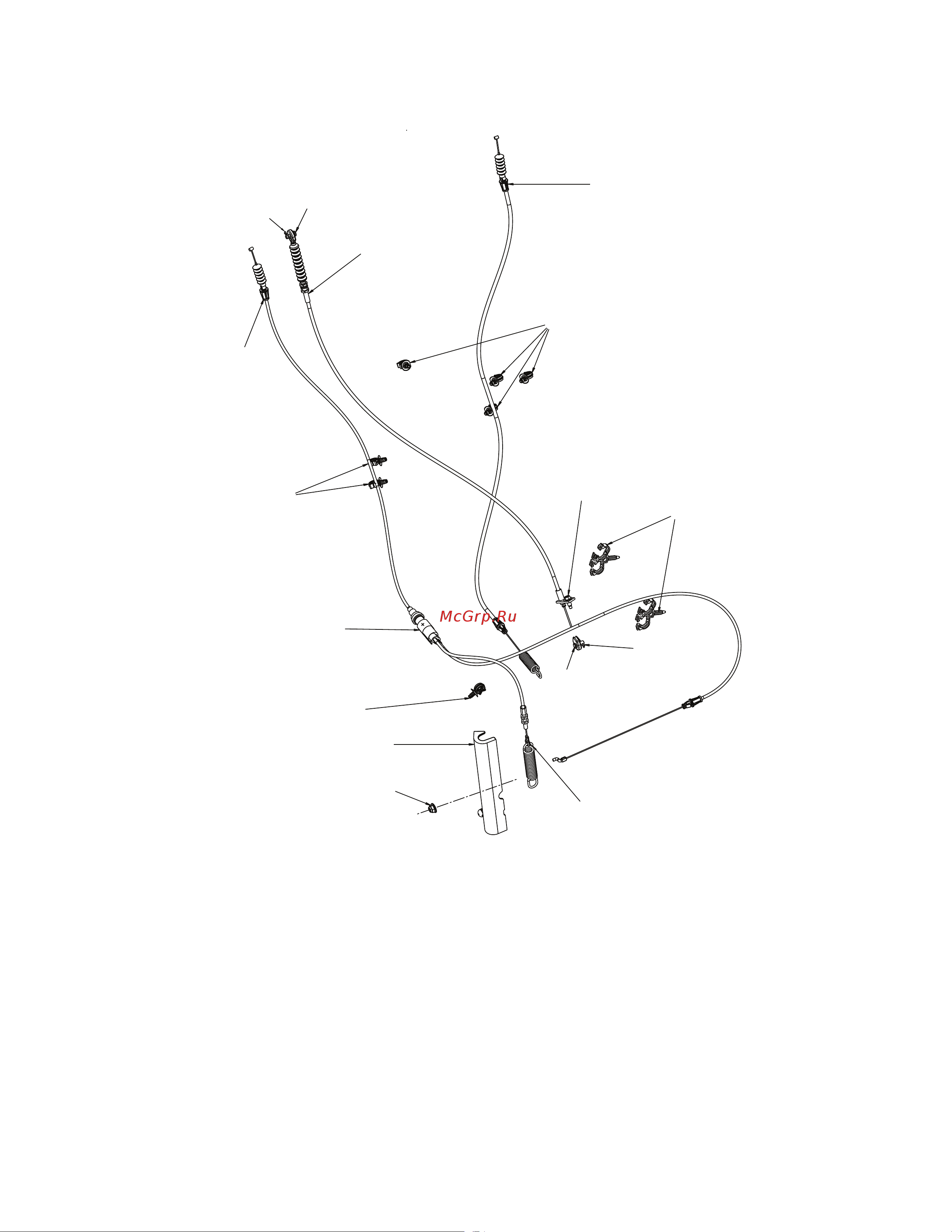

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 430T
ST 430T (96193013401), PRODUCT NO. 961 93 01-34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
05.08.017-C
1
2
3
5
4
6
7
8
10
12
11
11
11
9
2
7
1 532 19 79-91 CLIP
2 532 42 33-03 HAIRPIN
3 579 76 36-01 CABLE - IMPELLER
4 589 26 52-01 COVER - CABLE
5 589 28 98-01 CABLE - HYDRO DRIVE
6 590 02 66-01 CABLE - HYDRO SPEED
7 590 80 09-01 PIN - CLEVIS
8 532 42 79-42 NUT
9 584 65 22-01 CLIP, DUAL
10 585 51 78-01 SCREW - 1/4-20 x .65
11 592 85 74-01 CLIP, CABLE
12 594 71 65-01 AUGER CABLE SPRING
