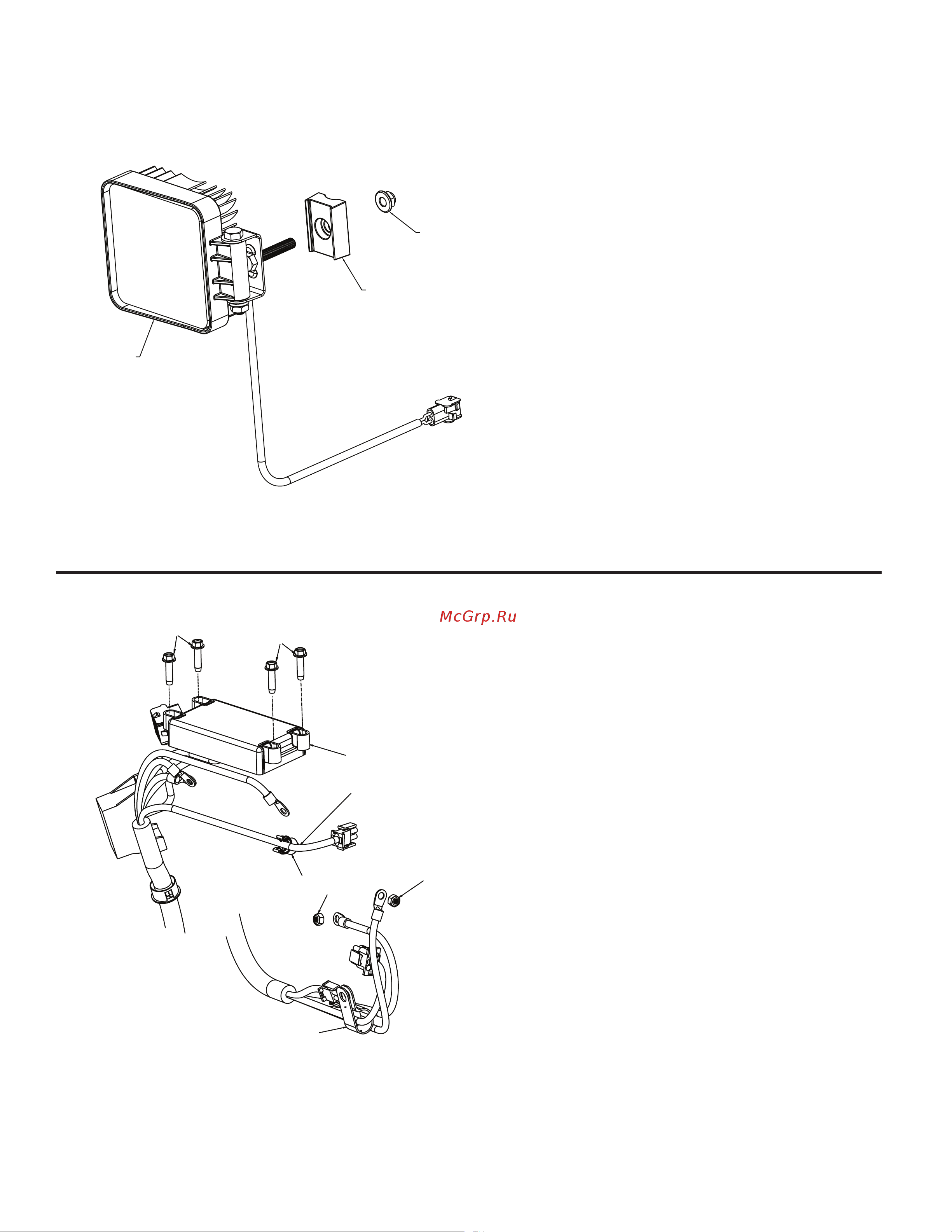

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 430T
ST 430T (96193013401), PRODUCT NO. 961 93 01-34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3
05.19.006-A
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 590 07 13-01 4.25 X 4.25 LIGHT
2 590 43 98-01 LIGHT MOUNTING BRACKET
3 532 42 79-42 HEX HD 5/16-18 FLANGE
NYLOCK
05.19.011-A
3
2
4
6
6
5
1
1
1 585 69 11-01 SCREW 1/4-20 X 1.0
2 593 08 46-04 ENGINE CONTROL UNIT –
EFI 420 cc
3 593 07 93-01 HARNESS - LOWER EFI
4 595 27 17-01 CLIP, CORRUGATED TUBE
5 532 19 79-91 P CLIP
6 597 43 41-01 M6 X 1.0 NYLOC NUT
