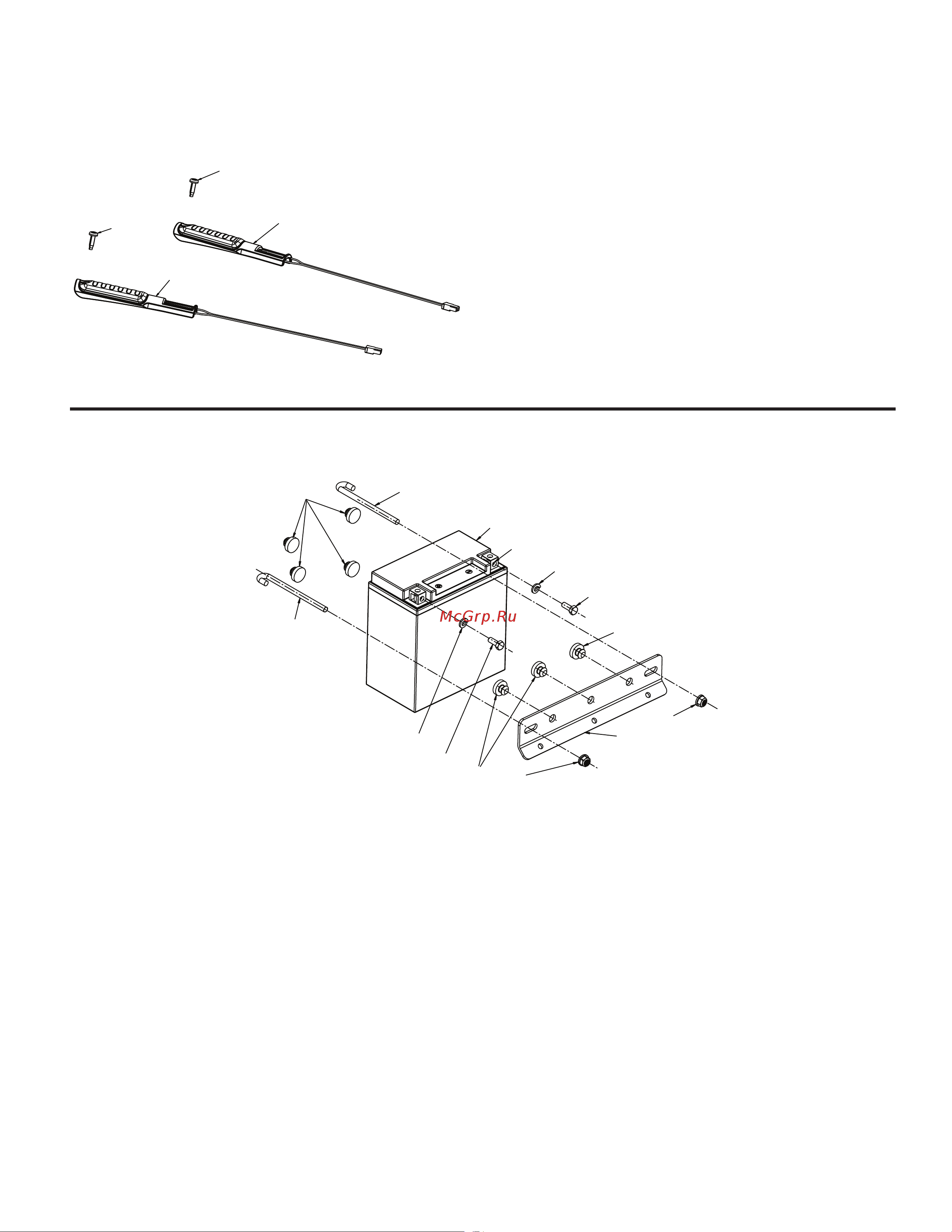

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 430T
ST 430T (96193013401), PRODUCT NO. 961 93 01-34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
1
2
2
05.08.008-G
1 590 49 36-01 GRIP, HEATED, DSST SHO
2 532 44 22-50 SCREW PAN HD TORX
1/4-20 X .75
KEY PART
NO. NO. DESCRIPTION
05.19.012-A
2
3
3
3
4
5
5
7
8
6
6
1
1
2
1 582 47 86-02 NUT - 1/4-20 FLANGE LOCKING
2 588 83 94-01 J-HOOK
3 585 98 93-01 BUMPER - RUBBER
4 590 94 29-02 BATTERY STRA P
5 532 43 80-39 SCREW M6X1 X 16L
6 596 02 98-01 LOCK WASHER - 1/4
7 532 43 71-57 BATTERY AGM 12V 230CCA
8 594 08 65-01 SQUARE NUT - M6X1
