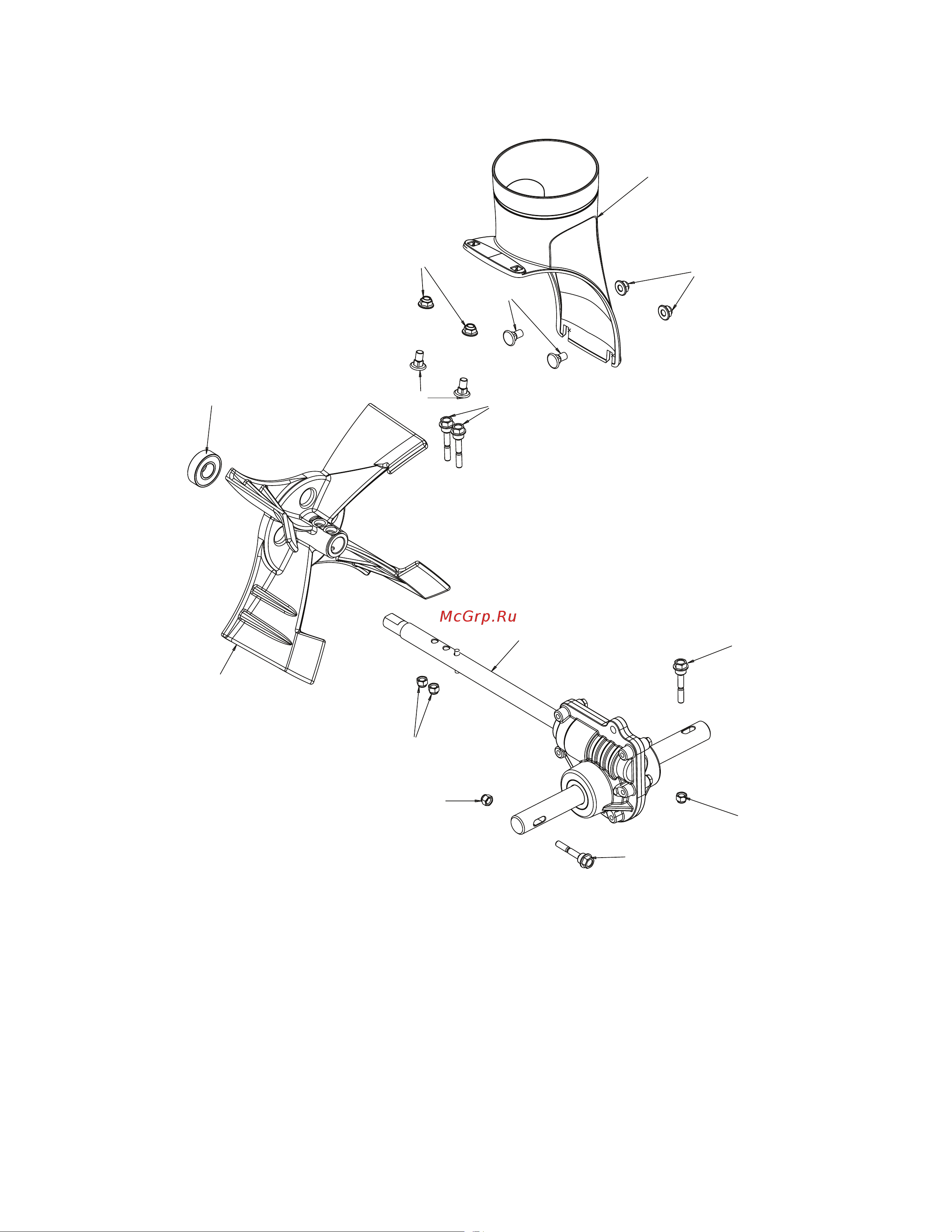

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST 430T
ST 430T (96193013401), PRODUCT NO. 961 93 01-34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
05.09.046-A
1
2
3
4
4
4
5
5
5
6
6
7
7
8
1 582 86 77-01 AUGER TRANSMISSION,
CAST IRON
2 585 19 83-03 IMPELLER, CAST IRON
3 593 04 28-02 CHUTE. DISCHARGE. BASE –
CAST ALUMINUM
4 588 07 75-02 BOLT. SHEAR 1/4-20
5 595 08 66-01 NUT. NYLOCK 1/4-20
6 585 69 13-01 NUT. FLANGE. NY
LOCK 5/16-18 - BLK
7 585 69 12-01 BOLT. CARRIAGE. WAFER
HEAD 5/16-18 X 5/8- BLK
8 532 19 87-91 BEARING. BALL
