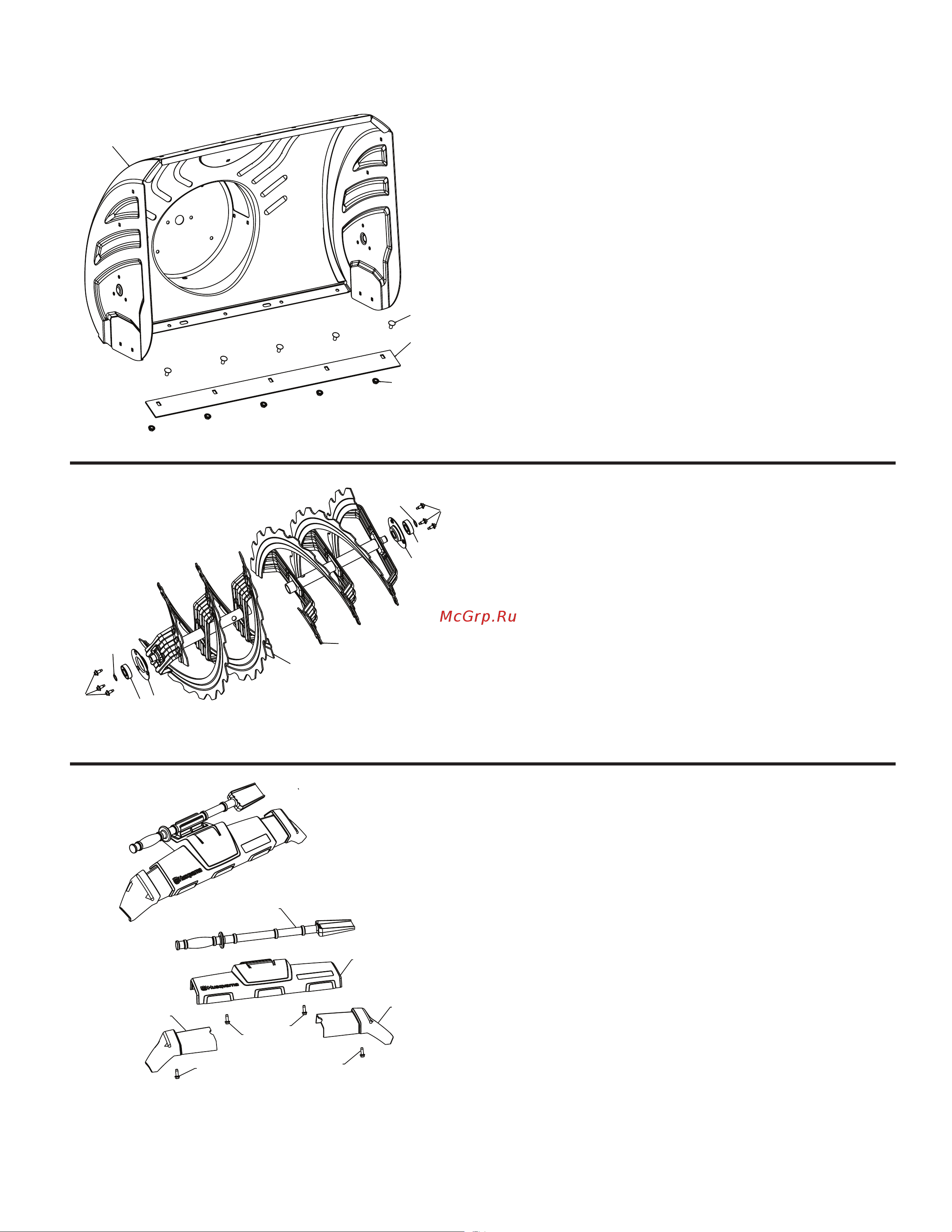

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY

SNOW THROWER - MODEL NO.

ST 430T

ST 430T (96193013401), PRODUCT NO. 961 93 01-34

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

05.09.047-A

05.09.035-A

05.09.020-D

1 532 19 21-99 TOOL CLEANOUT

2 586 41 48-02 AUGER FRONT TRIM ASM

3 586 33 03-02 TRIM AUGER HOUSING WING RH

4 586 33 04-02 TRIM AUGER HOUSING WING LH

5 817 06 04-10 SCREW HEX WASHER TRI-

LOBE 1/4-20 X 3/4

1 588 61 02-40 AUGER HOUSING 30 LS

2 585 04 85-02 SHAVE PLATE 30 LS MS428

3 596 03 94-01 BOLT CARRIAGE 5/16-18 X .625

4 532 15 53-77 NUT 5/16-18 HEX TOP LOCK

1 581 97 05-03 AUGER RIBBON 30 RH LS

2 581 97 06-03 AUGER RIBBON 30 LH LS

3 580 85 55-01 SUPPORT AUGER BEARING

4 532 43 76-22 BEARING IDLER 6203

5 812 00 00-28 RING RETAINING #5100-52

6 585 51 78-01 SCREW 1/4-20 X .65 W/DOG

POINT
