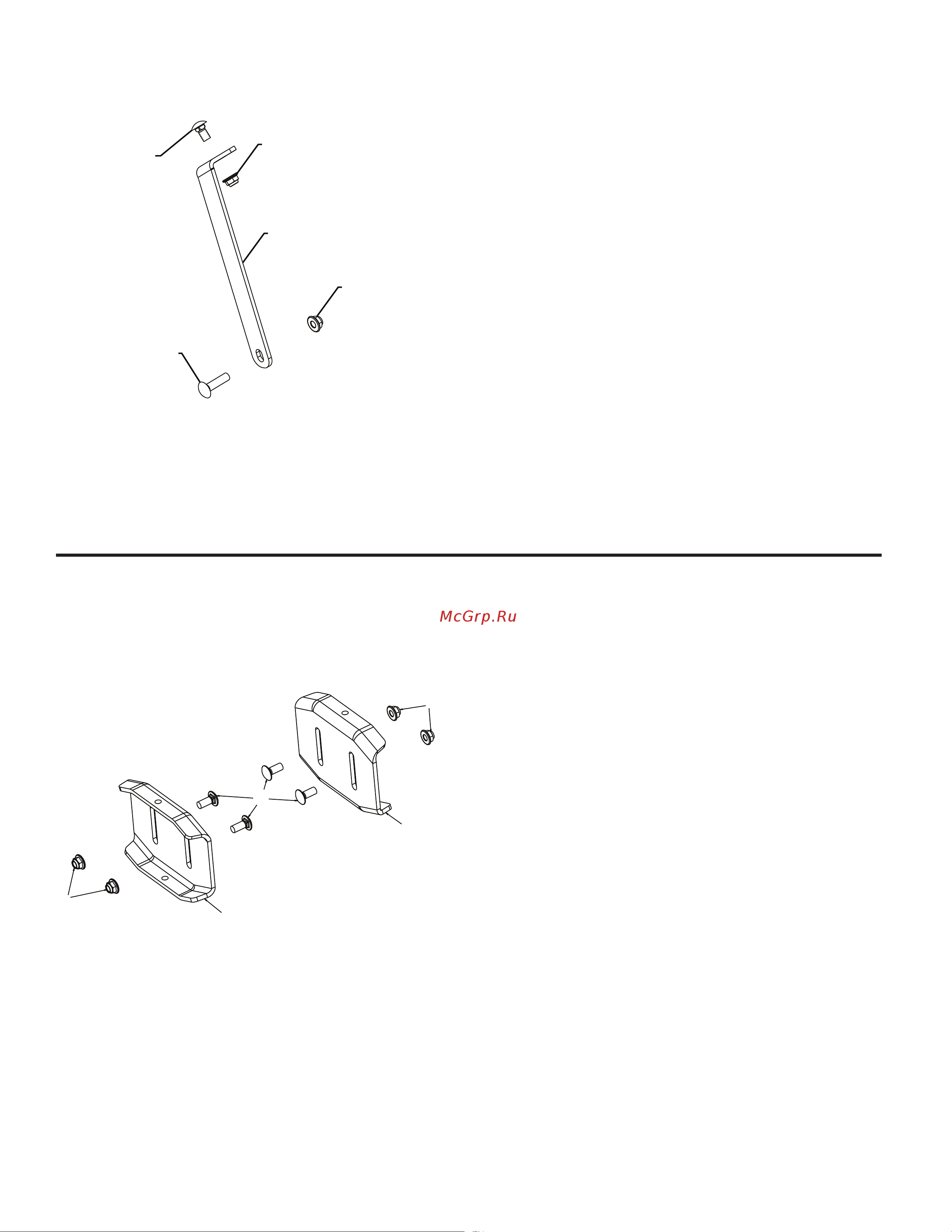

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST 430T
ST 430T (96193013401), PRODUCT NO. 961 93 01-34
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
05.12.003-A
1
2
3
1
3
05.09.048-A
3
2
2
4
1
1 532 40 78-34 SKID PLATE
2 585 69 17-01 BOLT CARRIAGE 5/16-18 X
.750 – BLK
3 585 69 13-01 NUT FLANGE NYLOCK 5/16-18
– BLK
1 585 10 90-04 SUPPORT GEARBOX LS
2 585 69 13-01 NUT HEX FLG NYLOCK BLK
5/16-18
3 585 83 20-01 BOLT CARRIAGE BLK 5/16-18
X 5/8 BLK
4 872 11 05-10 BOLT CARRIAGE 5/16-18 X
1-1/4
