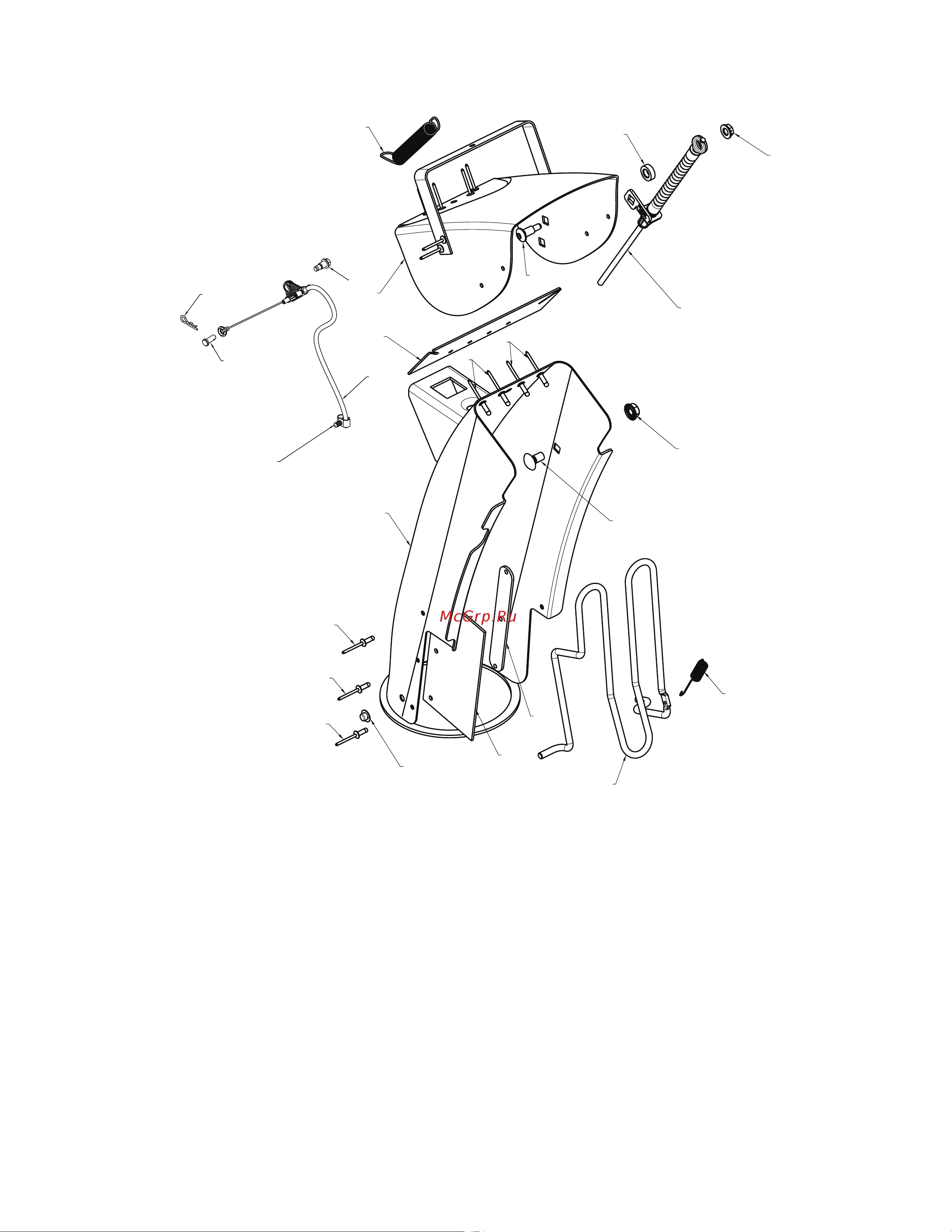

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - MODEL NO.

ST 430T

ST 430T (96193013401), PRODUCT NO. 961 93 01-34

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

05.11.011-B

*14

*19

*16

*18

*15

*17

1 588 07 78-02 CHUTE WELDMENT

2 – – – – – – RIVETED DEFLECTOR

ASSEMBLY

3 – – – – – – DEFLECTOR SEAL

4 – – – – – – POP RIVET

5 – – – – – – CHUTE SNOW SHIELD

6 – – – – – – SHIELD STRAP RETAINER

7 590 58 70-02 CONTROL.CHUTE.

DEFLECTOR.BOWDEN

8 581 72 61-01 SHOULDER BOLT 1/4-20

9 590 80 09-01 PIN CLEVIS 1/4 X .438

10 532 42 33-03 HAIRPIN RETAINER

11 593 62 22-01 CHUTE GUARD

12 532 43 56-16 GUARD RETURN SPRING

13 532 05 93-49 PUSH NUT

*14 532 18 45-05 DEFLECTOR SPRING

*15 501 41 73-01 CARRIAGE BOLT 1/4-20 X .544

*16 585 69 14-01 NUT 1/4-20

*17 585 83 20-01 CARRIAGE BOLT 3/8-16 X .625

*18 873 97 05-00 NUT 5/16-18

*19 501 41 74-01 WASHER .362 X .625 X .205

NYLON

20 532 18 15-80 CLIP, DUAL

NOTE: ALL ITEMS MARKED WITH AN * ARE PRO-

VIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH

PRODUCT.
