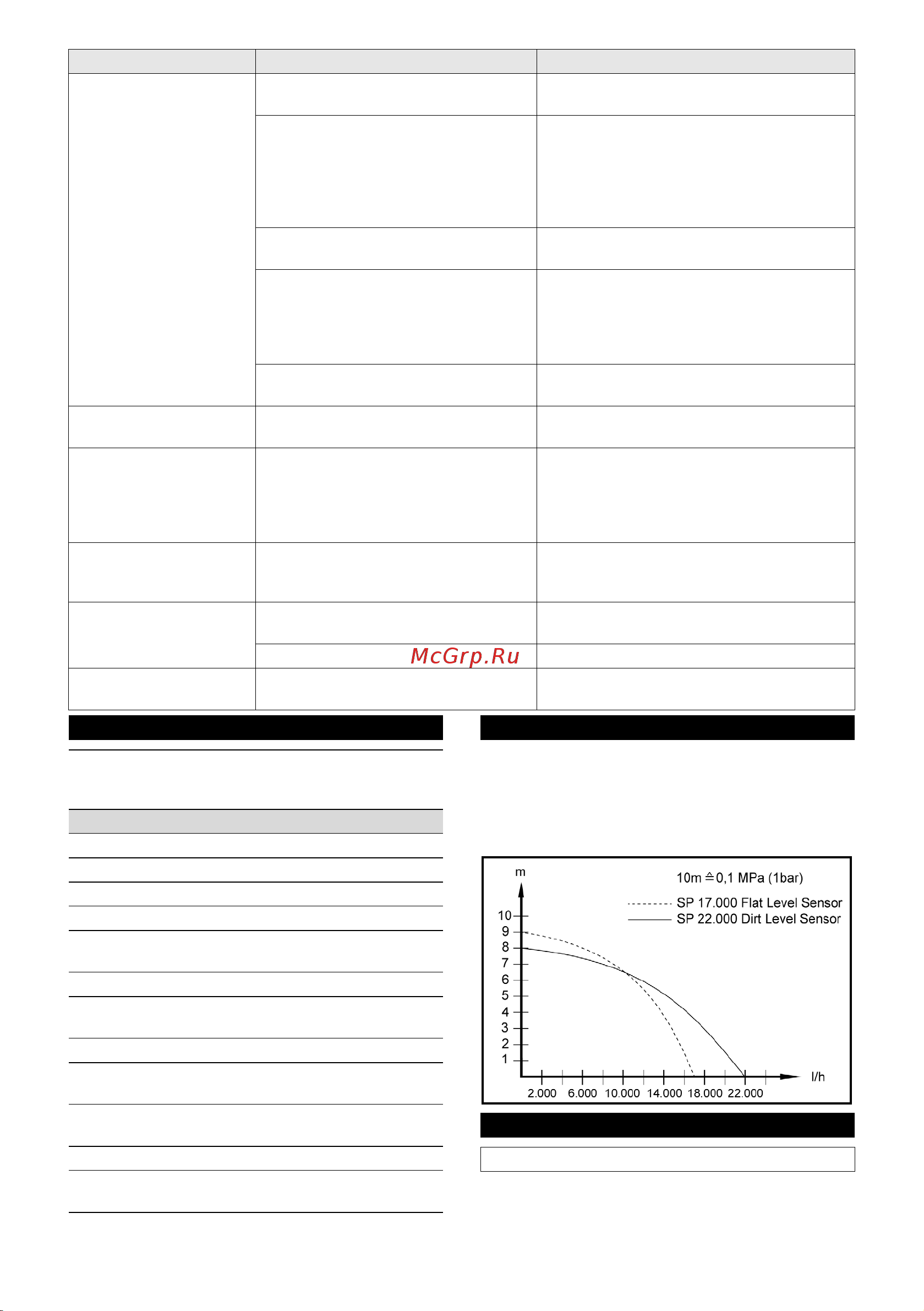

Technical data
Subject to technical modifications.
Optimising the flow rate
The flow rate is further increased:
● The lifting height is reduced.
● The diameter of the hose used is increased.
● The length of the hose used is decreased.
● The smaller the pressure loss caused by the con-
nected up accessories.
Declaration of Conformity
We hereby declare that the machine described below
complies with the relevant basic safety and health re-
quirements in the EU Directives, both in its basic design
The pump does not start
up, or stops suddenly
during operation
The power supply is disconnected. 1. Check the fuses and the electrical connec-
tions.
The thermal protection switch has
switched off the pump because of over-
heating.
1. Pull the mains plug out of the socket.
2. Allow the pump to cool down.
3. Remove any dirt particles in the suction ar-
ea.
4. Clean the suction area.
5. Prevent the pump from running dry.
Dirt particles block the suction area. 1. Pull the mains plug out of the socket.
2. Clean the suction area.
The level sensor stops the pump. 1. Check the position of the level sensor and
correct if necessary.
Note
The pump stops 15 s after the level sensor no
longer has contact with the water.
The level sensor does not react because
it is soiled.
1. Clean the level sensor.
The pumping capacity
decreases
The suction area is clogged. 1. Pull the mains plug out of the socket.
2. Clean the suction area.
The delivery rate is too
low
The maximum delivery head is exceed-
ed.
The hose diameter and the hose length
have been selected incorrectly.
1. Observe the maximum delivery head, see
chapter Technical data.
2. If necessary, select a greater hose diame-
ter or a shorter hose length, see chapter
Optimising the flow rate.
Quick-Connect cannot
be opened or closed
The push-fit system is dirty. 1. Remove the clip.
2. Clean the clip.
3. Install the clip.
The pump runs although
the level sensor has no
contact with the water
The level sensor does not react because
it is soiled.
1. Clean the level sensor.
The switch is set to Manual mode (MAN). 1. Set the switch ´to Automatic mode (AUTO).
Extended after-running
time
The level sensor is dirty. 1. Clean the level sensor.
Fault Cause Rectification
SP 17.000
Flat Level
Sensor
SP 22.000
Dirt Lev-
el Sensor
Device performance data
Mains voltage V 230-240 230-240
Power frequency Hz 50 50
Nominal power W 550 750
Maximum flow rate l/h 17.000 22.000
Pressure (max.) MPa
(bar)
0,09
(0,9)
0,08
(0,8)
Delivery height (max.) m 9 8
Immersion depth
(max.)
m7 7
Perm. temp. feed fluid °C 5...35 5...35
Particle size (max.) of
permissible feed fluids
mm 5 30
Minimum fluid level
(manual mode)
mm 7 50
Residual fluid height mm 1 35
Weight (without acces-
sories)
kg 6 6,7
EU Declaration of Conformity
