Operation

Climate Line 2000 – 6721831694 (2021/02)

3Operation

3.1 Indoor unit overview

Key to Fig. 1:

[1] Top panel

[2] Space for small filter

[3] Air filter

[4] Back of the display

[5] Button for manual operation

[6] Airflow panel

Indoor unit display

Table 6 Symbols in the display

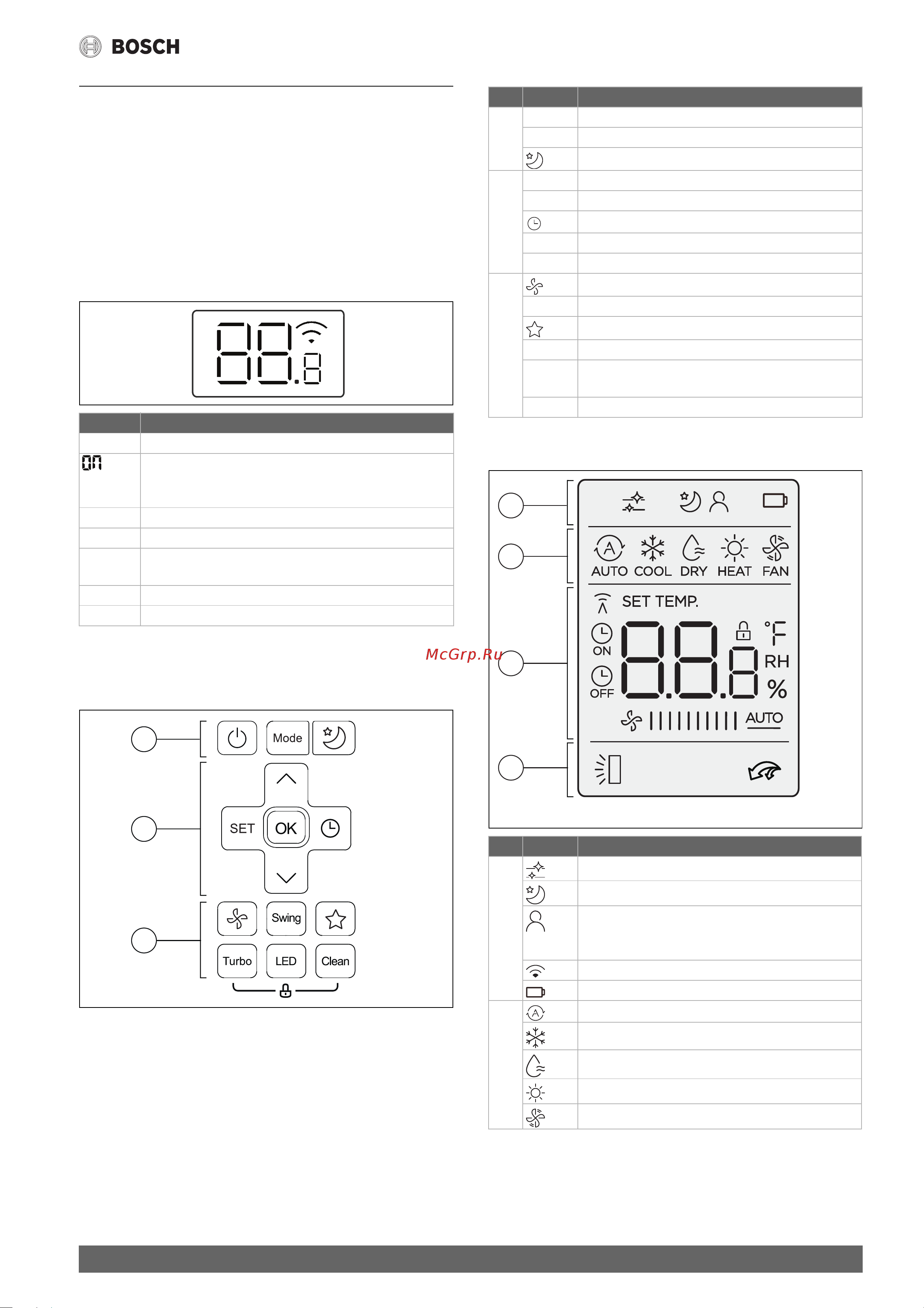

3.2 Remote control overview

Keys on remote control

Table 7 Keys on remote control

Display of remote control

Symbol Explanation

Number Temperature display

Displayed with some functions, if these are switched on.

Indicates that the ON timer is active when the indoor unit is

switched off.

0F Displayed with some functions, if these are switched off.

dF Automatic defrosting active

FP Frost protection active: the indoor unit keeps the room

temperature at minimum 8 °C.

CL Self-cleaning function is active (I clean)

Ex, Px, Fx Fault code (“x” stands for any digit).

0010033387-001

0010037628-001

Pos. Key Function

1 K Switch on/off.

Mode Set operating mode.

Setback mode

2SET Select advanced operating functions.

OK Confirm choice.

Set timer.

. Increase temperature.

/ Reduce temperature.

3 Fan speed

Swing Set swing function.

Restore function: restore previous setting.

Turbo Turbo cool/Turbo heat

LED Switch off display of indoor unit and alarm buzzer

(Mute Mode).

Clean Self-cleaning (I clean)

Pos. Symbol Explanation

1 Infographic: self-cleaning is active (I clean).

Operating function: setback mode is active.

Operating function: Follow Me function is active

(Follow Me); temperature measurement at the

remote control.

Infographic: wireless control function.

Infographic: battery status

2 Operating mode: automatic mode

Operating mode: cooling mode

Operating mode: dehumidification mode

Operating mode: heating mode

Operating mode: Fan Mode

0010037630-001
