Owner's Manual 9
Operating Instructions
Operating Instructions

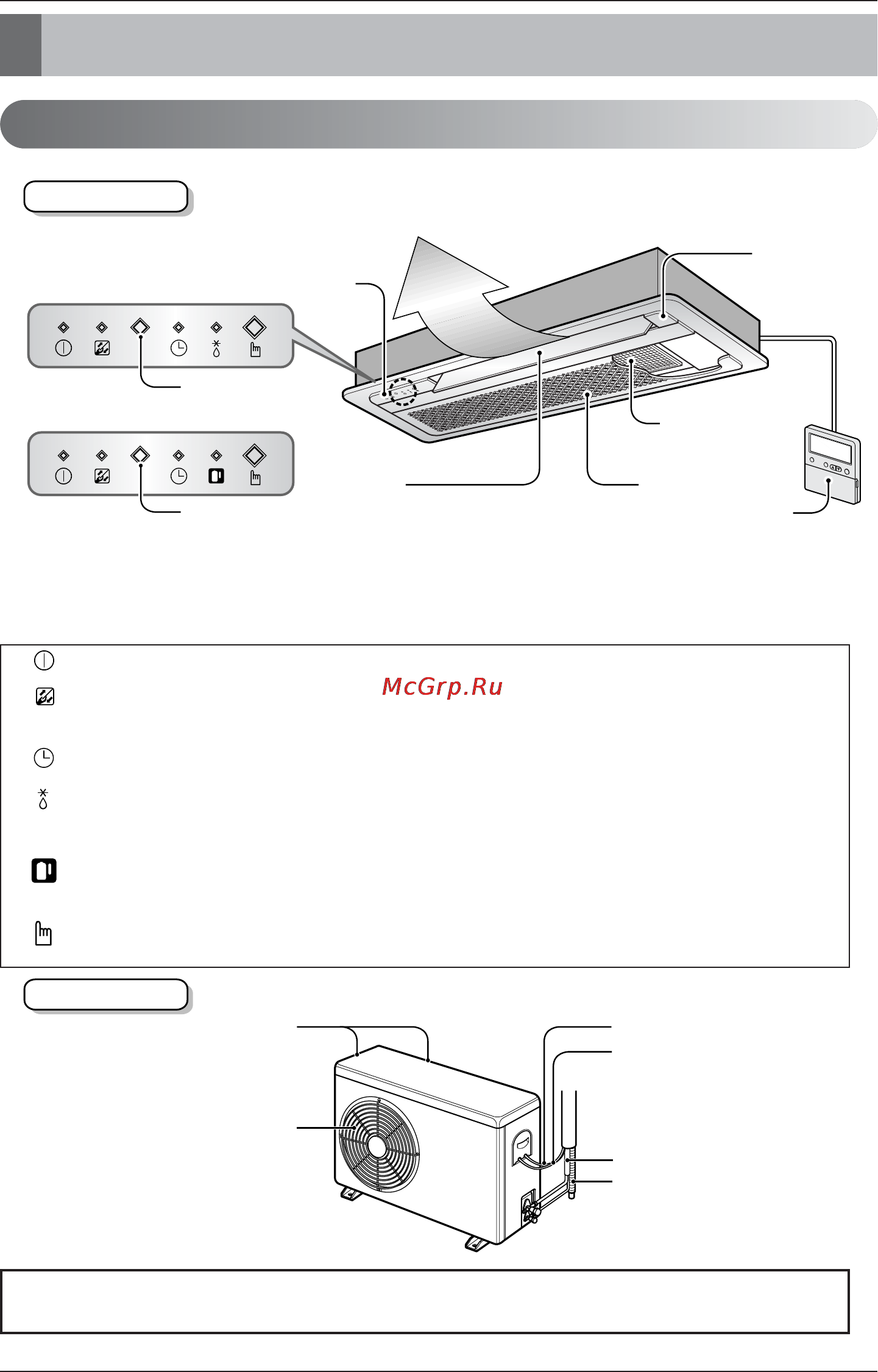

Indoor Unit, Outdoor Unit
Outdoor Unit
Indoor Unit
Air Intake�
(side, rear)
Connecting Wire
Drain Hose
Power Wire
Connection Tube
Air Outlet�
Vents
Anti-bacteria filter
Air Intake
Air Outlet
Cover �
display
Cover
Remote Controller
Signal Receptor
Heat Pump Model
Cooling Model
Signal Receptor
Signal Receptor
Receives the signals from the remote control.
(Signal receiving sound: two short beeps or one long beep.)
Operation Indication Lamps
On/Off : Lights up during the system operation.
Filter Sign : Lights up after 2400 hours from the time of first
operating unit. (Refer to page 23.)
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or Hot Start operation.
(Heat pump model only)
Outdoor Unit : Lights up during outdoor unit operation.
Operation (Cooling model only)
Forced : Operation procedures when the remote control
Operation can't be used.
Heat pump model: Cassette Type Air Conditioner for cooling and heating
Cooling model: Cassette Type Air Conditioner for cooling
