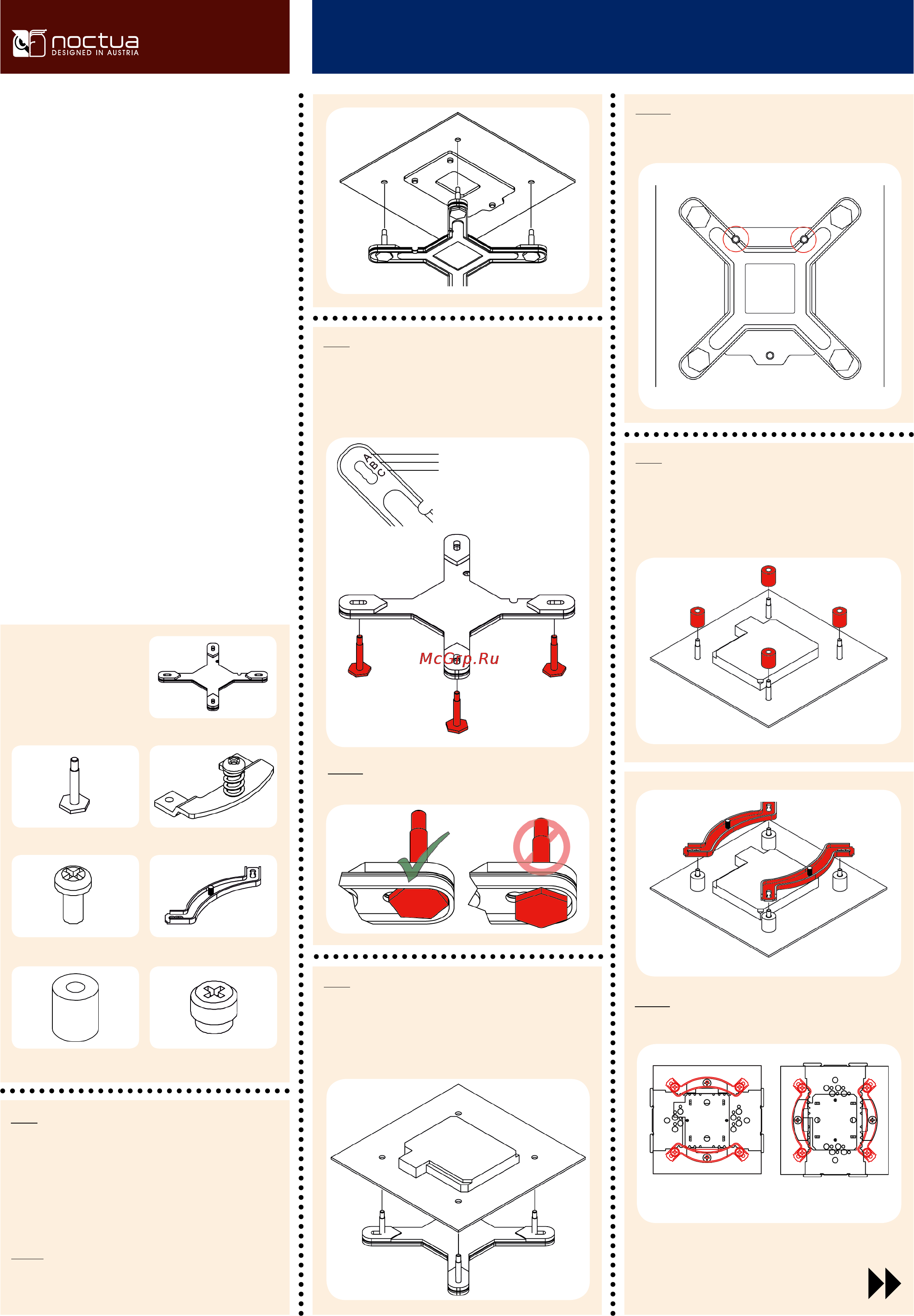

Noctua LGA1366/LGA1156/1155

Installation Manual

Removing the mainboard

Step 1:

In case you want to use the cooler on an assembled system,

you first have to remove the mainboard from the case in order

to be able to install the supplied backplate.

Caution: On LGA1366 and LGA1156/1155, the supplied back-

plate will install over the mainboard’s stock backplate, so the

mainboard’s stock backplate must not be taken off.

Required mounting parts:

First put the four bolts into the holes appropriate for your

mainboard’s CPU socket.

Setting up the backplate

Step 2:

Thank you very much for choosing a Noctua cooler-

for your socket 1366 or 1156/1155 system.

This SecuFirm™2 Mounting-Kit for socket 1366

and 1156/1155 is compatible with the following CPU cool-

ers: NH-C12P, NH-U12F, NH-U12P, NH-U12P SE1366, NH-

U9B, NH-U9F, NH-U12, NH-U9.

This manual will guide you through the installa-

tion process step by step using an NH-U12P heatsink as

an example. Please note that the installation procedure is

identical for all models.

Should you encounter any difficulties, please check

the FAQs on our website and don’t hesitate to contact our

support team at support@noctua.at.

Noctua cannot be held responsible for any damage

or losses caused by compatibility issues.

Multilingual versions of this manual are available

on our website: www.noctua.at

Caution: Please verify that all four bolts are put into the

appropriate holes fully pushed in.

Step 4:

Installing the mounting bars

First put the plastic spacers onto the bolts, then add the

mounting bars.

Noctua LGA1366/LGA1156/1155

Installation Manual

4x plastic spacers 4x thumbscrews

1x 3-in-1 Intel backplate

4 bolts for backplate 2x fastening brackets

4x short screws

2x mounting bars

LGA1366 (80mm)

LGA1156/1155 (75mm)

LGA775 (72mm)

Caution: On LGA1156/1155, please make sure that the two

cuts in the supplied backplate align with the screws of the

mainboard’s stock backplate.

Caution: Choose the alignment of the mounting bars according

to the desired final orientation of the cooler:

Step 3:

Attaching the backplate

Place the backplate on the rear side of the mainboard so that

the bolts stick through the mounting holes.

Orientation A Orientation B
