23.
o-ring 14x1,9

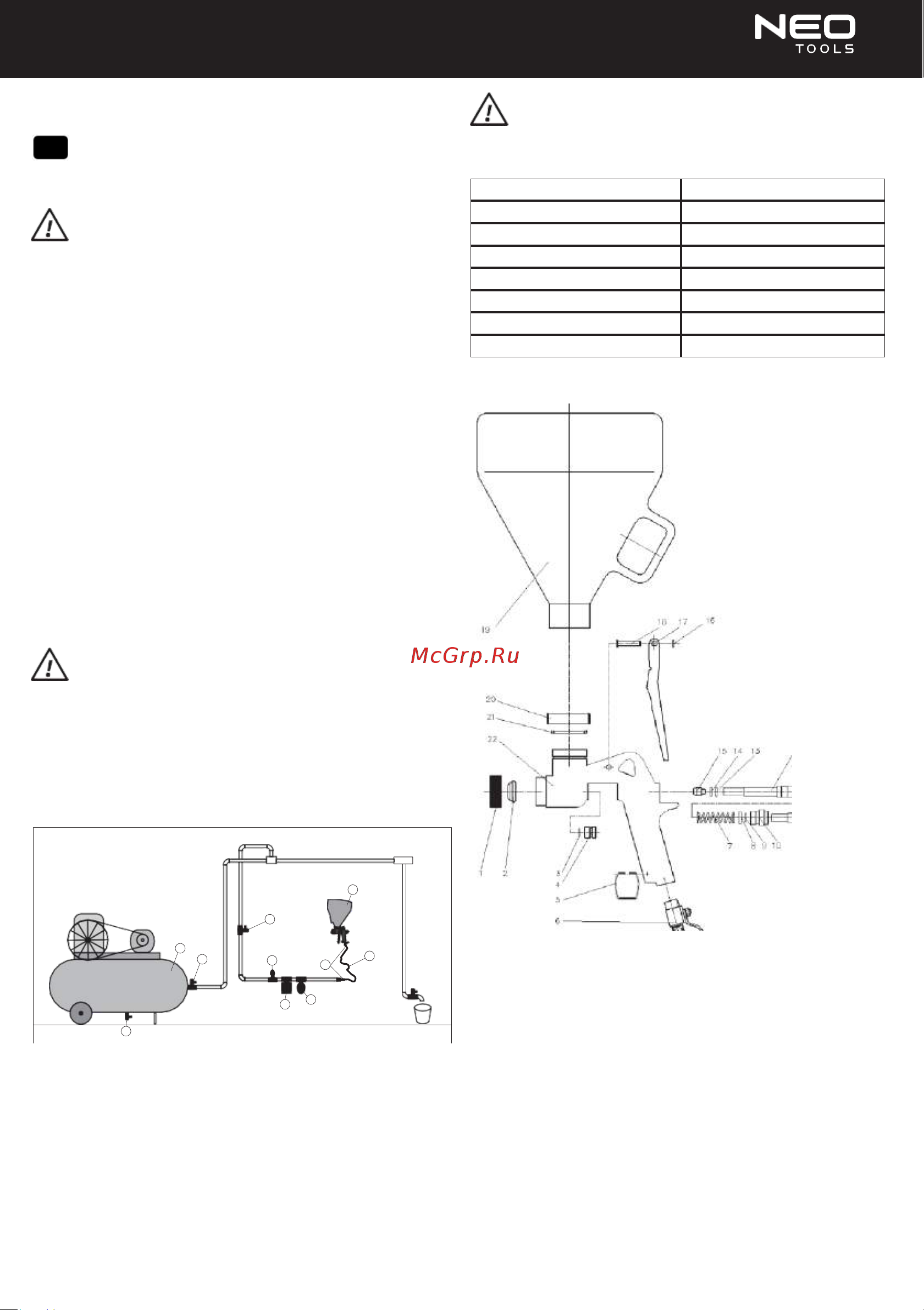

INSTRUCTION MANUAL
STRUCTURAL PAINT SPRAY GUN
14-220
CAUTION:
BEFORE OPERATION READ THIS MANUAL CAREFULLY AND
KEEP IT FOR FUTURE REFERENCE.
SAFETY REGULATIONS
Observe the regulations for occupational health and safety.
•
During work, wear protective halfmask, anti-splinter glasses and protective
gloves.
•
Do not direct stream of air or paint onto people, animals, compressor or
yourself.
•
Do not use stream of compressed air to clean clothes you’re wearing.
•
Do not allow inexperienced persons to work.
•
Do not spray paint or solvent with ignition temperature below 210°C.
•
Observe safety information provided by the manufacturers of applied
paints.
•
Do not eat or drink in the room where you work. Paint fumes and particles
are dangerous to health.
•
Room where lacquer spraying and drying is carried out should be equipped
with efficient ventilation system.
•
Do not exceed air pressure defined by the manufacturer.
•
Do not allow drying paint inside the spray gun.
•
Clean immediately after use.
•
Ensure the spray gun is disconnected from compressed air supply before
cleaning or disassembly.
•
To avoid body injury caused by recoil when disconnecting compressed air
hose hold the coupling in your hand.
•
Act reasonably and in accordance with respective regulations.
Do not use hydrocarbon solvents, acids or bases, which might cau-
se dangerous chemical reactions with materials used in the spray gun.
For safety use only original parts and accessories that are recommended
by the manufacturer. Use of other parts bears high risk of an accident.
The design is assumed to be safe, protection measures and additional
safety systems are used, nevertheless there is always a small risk of in-
juries at work.
COMPRESSED AIR SUPPLY SYSTEM DIAGRAM
Before starting to apply paint it is recommended to try few set-
tings and nozzles on a waste surface to get the right effect.
TECHNICAL
PARAMETERS
Parameter
Value
Paint funnel capacity
4.7 l
Recommended working pressure
3.5–4.8 bars
Paint funnel dimensions
230 x 255 mm
Nozzle diameters
4.5 mm, 6 mm, 8 mm
Funnel mount diameter
42 mm
Funnel filling hole diameter
200 x 105 mm
Weight
1.1 kg
SPRAY GUN ITEMS
1
7
8
7
5
2
3
Ring
Air nozzle
14
15
O-ring 14 x 1.9
Nozzle
6
4
O-ring 12.5 x 1.5
16
Cotter pin Ø4
6
Sealing screw
17
Trigger
1
Air tool
5
Pressure regulator
5
Trigger lock
18
Pin
2
Quick coupler
6
Filter/water trap
6
Air valve
19
Paint funnel
3
Pneumatic hose
7
Cut-off valve
7
Spring
20
Clamp ring
4
Lubricator
8
Air compressor
8
Seal
21
O-ring 41 x 3.2
USE
•
Disconnect air supply hose from the spray gun.
•
Set air pressure to value between 3.5 and 4.8 bars.
•
Fill the funnel with paint.
•
Connect compressed air hose to the spray gun.
•
Point the spray gun nozzle to painted surface at approx. 20 cm distance.
•
Open air valve located at the bottom of the spray gun handle.
•
Press the spray gun trigger to apply the paint to surface.
9
O-ring 14 x 2.4
22 Body
10
Sealing screw
23
Quick coupler tip ¼”
11
Adjustment screw
12
Shaft
13
O-ring 14 x 1.9
3
EN
