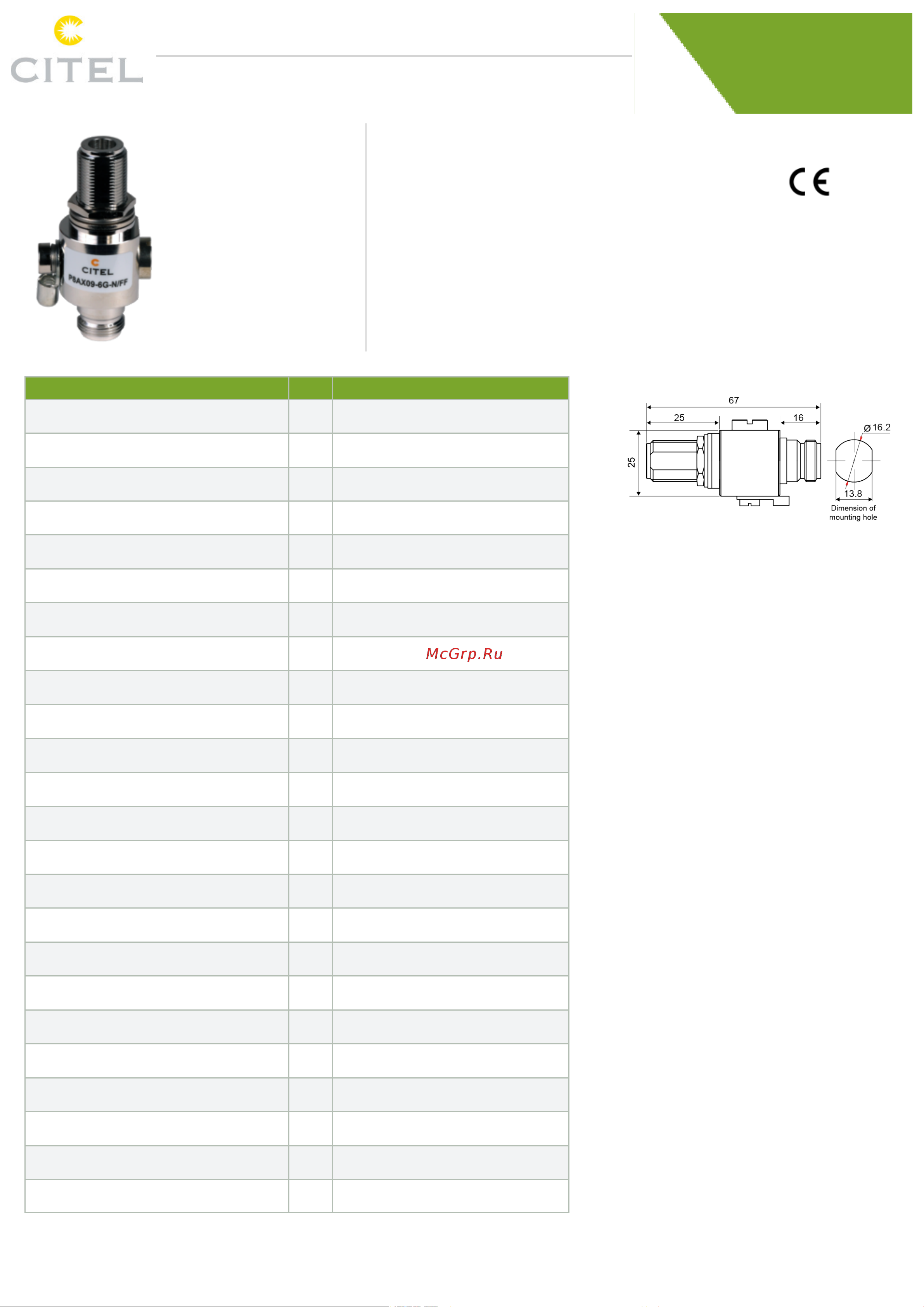

RF coaxial protector - 6 GHz
RADIOCOMMUNICATION
CITEL • 2 rue Troyon • 92316 Sèvres Cedex • France • Tel: +33 1 41 23 50 23 • e-mail: contact@citel.fr • www.citel.fr
201903 • CITEL2CP-P8AX09-6G-N/FF-en • Document Subject To Modifications Without Notice
P8AX09-6G-N/FF
• RF coaxial surge protector
• 6 GHz
• 70 W
• Connectors : N
• Low insertion loss
• Removale GDT
• DC-pass
• Bi-directional protection
Electrical Characteristics
Operating current
Continious current at Uc
Ic none
Max. discharge current
max. withstand @ 8/20 µs by pole
Imax 20 kA
Max. load current
IL 10A
Protection mode(s)
MC
Protection level
@ In (8/20µs)
Up < 1100 V
Impulse current
2 x 10/350µs Test - D1 Category
Iimp 1 kA
Nominal discharge current
8/20µs Test x 10 - C2 Category
In 5 kA
Max. frequency
f 7 GHz
Impedance
50 ohms
Insertion loss
< 0.2dB
Max Power
70 W
Return loss
> 19 dB
VSWR
<1.25:1
Insulation resistance
≥10 GOhms
bandwith limit
low
kHz dc
bandwith limit
high
kHz 7000000
Impedance
Ω 50
Insertion loss
Maximum
db <0.2
Return Loss
Minimum
db >20
VSWR
Maximum
:1 <1.25
Nominal Discharge Current
In (8/20µs x 10)
kA 10
DC Pass
Yes
Connection Method
Series (bi-directional)
End of life
Short-circuit
