Installation

1. The water heater should be installed

on a solid wall. The wall on which the

electric water heater is to be installed

must be capable of supporting at least

twice the weight of the water heater

when fully lled with water, and the

wall must be free of cracks and other

damage. Otherwise, it is necessary

to take measures to strengthen the

fastening or install the water heater on

a special support.

2. If the bathroom is too small, the water

heater can be installed in another

place, closed from direct sunlight and

inaccessible to moisture. However, to

reduce heat losses in the pipelines, the

installation site of the water heater

should be as close as possible to the point

of use of hot water.

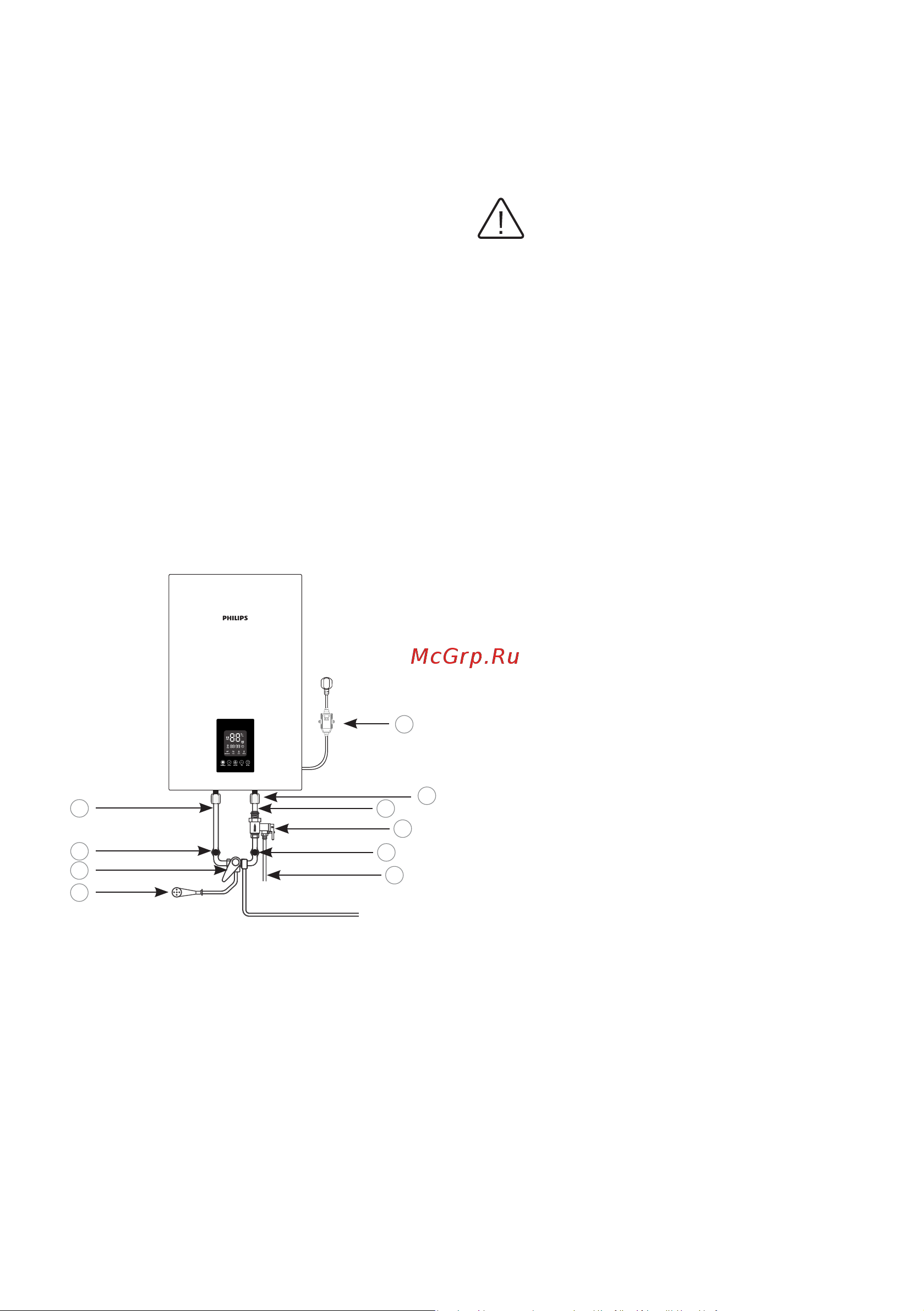

1. Power cord with plug and RCD

2. Hot water outlet

3. Hot water ow control tap*

4. Faucet*

5. Shower head*

6. Cold water inlet tap*

7. Drain tube

8. Combined safety valve

9. Cold water inlet

10. Dielectric coupling Static CARE

Water heater installation methods

The installation method of the water

heater for one consumption point is shown

in g. 3.

The water heater must be installed on a

vertical wall in a strictly vertical position.

Installing the device in any other position or

skew relative to the vertical will inevitably

lead to the failure of the water heater,

creating an emergency and is considered by

the manufacturer as a non-warranty case.

Attention!

3

1

5*

4*

3*

2

10

9

8

6

7
