IM2022

WARNING!

The water heater must be installed on a vertical wall in a vertical position. If

installed in any other position or misaligned, the water heater will inevitably

malfunction, causing an emergency. This will be treated by the manufacturer as

a non-warranty case.

Water heater installation

NOTE!

The electric water heater must not be mounted on the wall before you make

sure that the bracket is securely installed. Any failure to do so may cause the

electric water heater to fall off the wall, which may cause its damage and even

major incidents including bodily injuries.

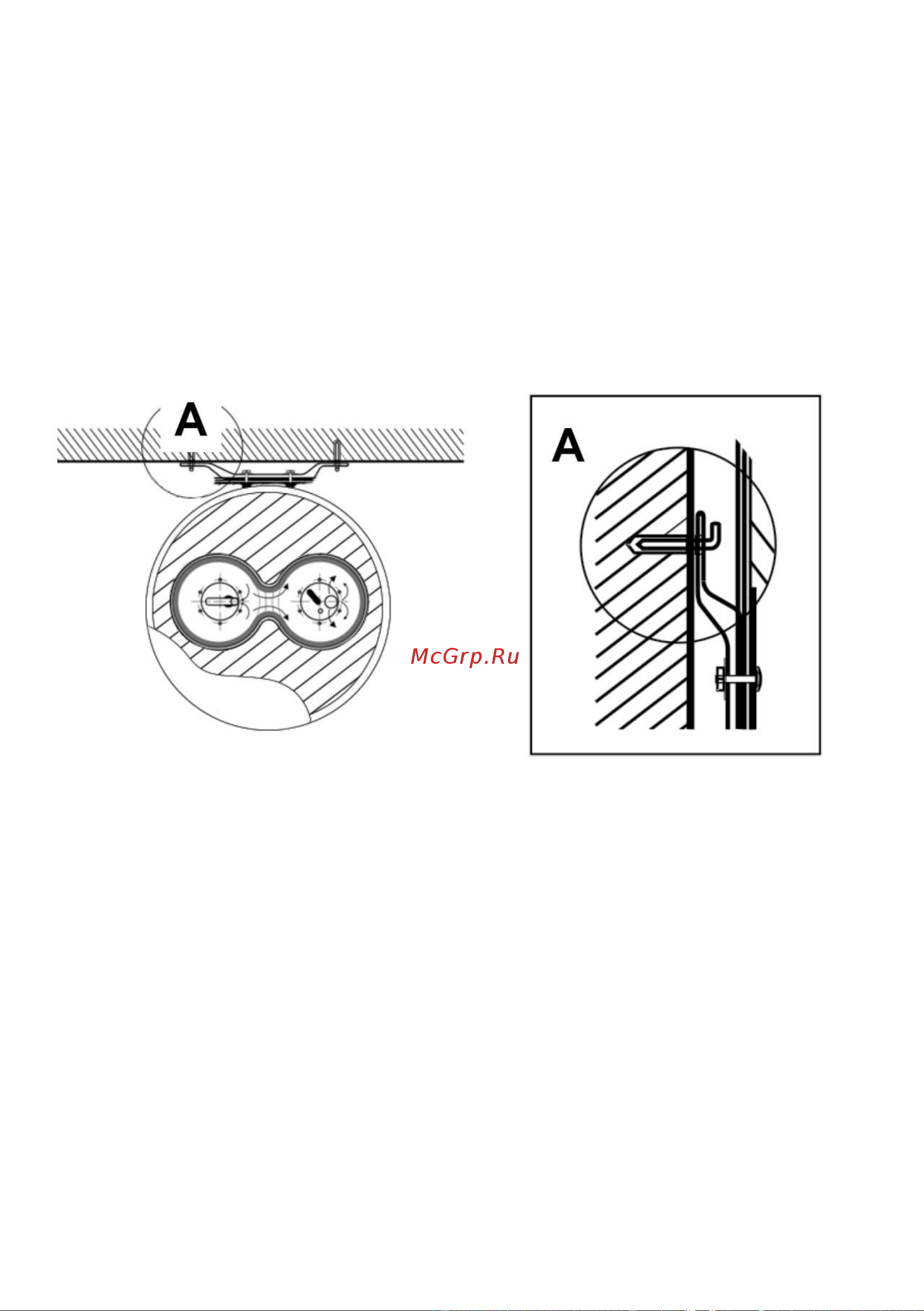

Fig. 3 Fig. 4

Once you have selected the proper site for the water heater, determine the

spots for the anchor bolt holes with hooks (according to the specifications of the

product you have acquired). Drill two holes of appropriate depth in the wall using

a drill bit with the diameter corresponding to the anchor bolts supplied with the

water heater. Insert the bolts into the holes and tighten the bolt nuts firmly by

turning the bolt hooks clockwise, then hang the water heater on the anchor bolt

hooks (see Fig. 3,4).

Connecting to the water main

1. The water heater must be connected to the water main with a minimum

pressure of 0.1 MPa and a maximum pressure of 0.7 MPa.

NOTE!

The water heater is a product, in which water pressure corresponds to water

pressure in the water main. If water pressure in the water main exceeds 0.7

MPa, a pressure-reducing valve must be installed before the heater to ensure

that water pressure does not exceed 0.7 MPa.
